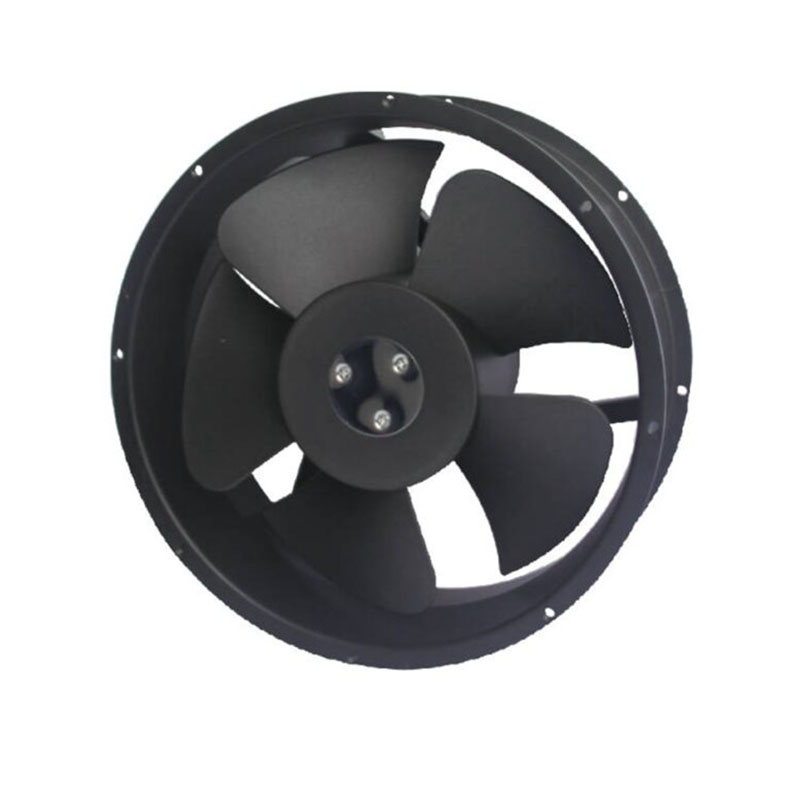

A testament to dependable, efficient, and long-lasting air movement technology is the AC Axial Fan, featuring a 254mm x 89mm frame for reliable thermal management and ventilation. This fan is a cornerstone component for numerous industrial, commercial, and electronic systems, engineered specifically for applications demanding high-performance cooling. Its design prioritizes robust performance, longevity, and adaptability, establishing it as an essential choice for engineers, system integrators, and maintenance specialists. Every aspect, from its high-velocity operation to its durable ball bearing system, is crafted to meet the rigorous demands of contemporary equipment.

Unmatched Performance: Superior Airflow and Rotational Velocity

Central to this AC axial fan's effectiveness is its remarkable ability to displace a substantial air volume. Capable of achieving an impressive airflow of up to 800 Cubic Feet per Minute (CFM), the fan is engineered for swift and efficient heat dissipation and ventilation. This high-volume output is critical for maintaining optimal operating temperatures in densely packed server racks, large industrial control cabinets, and power-intensive machinery where heat buildup can lead to component failure and costly interruptions.

This exceptional airflow is realized through high rotational speeds, reaching up to 2600 Revolutions Per Minute (RPM). The synergy of meticulously designed blades and a powerful AC motor generates a forceful, consistent air stream. Furthermore, the fan produces a significant static pressure of 19.8 mmH₂O, which measures its capacity to move air against resistance from filters, grilles, and tightly packed components. This high static pressure ensures effective cooling even in high-impedance environments where the air path is restricted.

Engineered for Longevity: The Ball Bearing Advantage

A fan's reliability is intrinsically linked to its bearing system, an area where this AC axial fan excels. It features a high-precision dual ball bearing system, setting it apart from fans that use conventional sleeve bearings. Ball bearings generate considerably less friction, resulting in smoother operation, reduced heat within the motor, and enhanced overall efficiency.

This friction reduction is a key contributor to the fan's extended operational life. Unlike sleeve bearings, which can be susceptible to lubricant dry-out and wear at elevated temperatures, ball bearings are more resilient and operate reliably across a wide temperature range, typically from -10°C to +70°C. This quality makes the fan exceptionally suited for demanding industrial settings with frequent temperature fluctuations. The durability of the ball bearing system guarantees consistent performance for tens of thousands of hours, minimizing maintenance needs and ensuring long-term operational stability.

Robust Construction and Adaptable Design

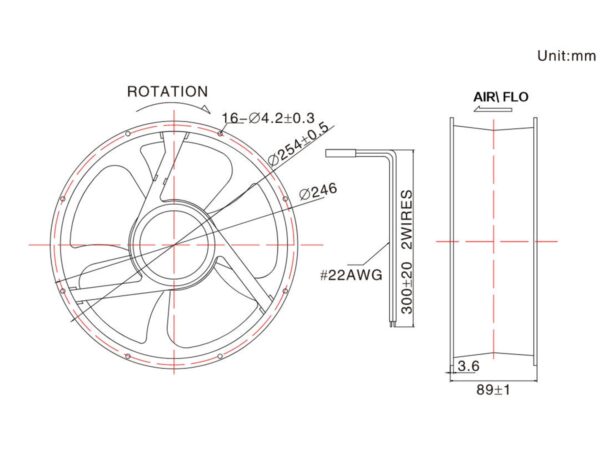

The physical construction of this 254mm x 89mm AC axial fan is engineered for strength and ease of integration. Its frame is typically made from die-cast aluminum, providing a solid, rigid structure that withstands mechanical stress and vibration. Aluminum also offers excellent heat dissipation, aiding in cooling the motor, and is finished with corrosion-resistant black paint. The impeller blades are precision-molded from reinforced thermoplastic, a material selected for its high flammability resistance and its ability to maintain its aerodynamic shape at high speeds.

Weighing approximately 2100 grams, the fan's substantial feel highlights its sturdy build. The design includes a standard mounting flange with multiple holes for straightforward installation in various enclosures and systems. Connection is simplified with two lead wires, ensuring compatibility with standard AC power sources.

Global Compatibility: Multiple Voltage and Frequency Options

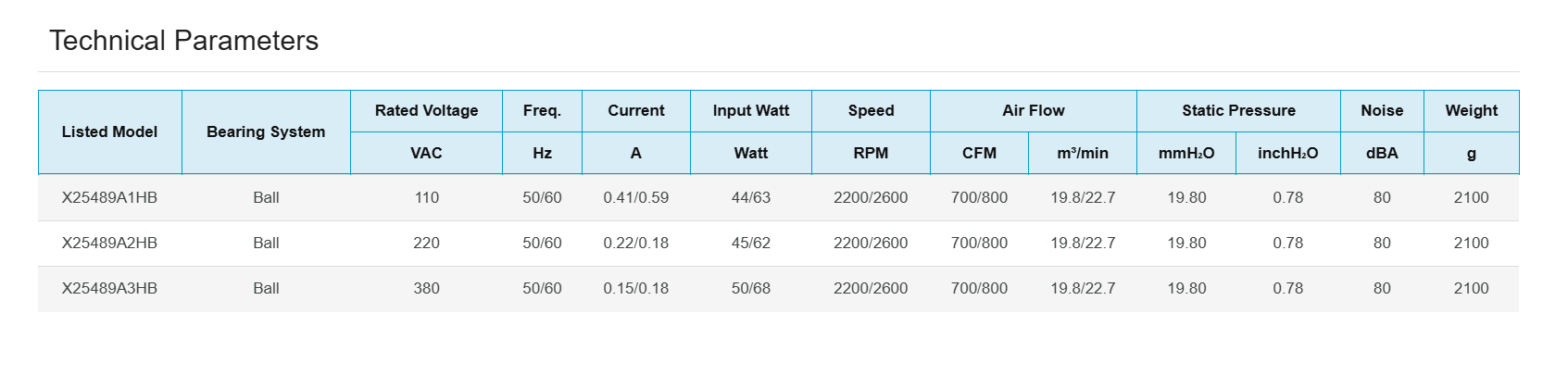

Acknowledging diverse power standards worldwide, this AC axial fan is offered in several rated voltages, such as 110V, 220V, and 380V models. This adaptability allows the same high-performance cooling solution to be seamlessly integrated into equipment intended for North American, European, and other global markets. The ability to function at both 50Hz and 60Hz further enhances its international applicability, ensuring consistent performance regardless of the local power grid. This flexibility is a vital attribute for original equipment manufacturers (OEMs) and companies distributing products globally.

Safety and Acoustic Considerations

Impedance protection is an inherent safety feature of the AC motor design. This crucial function prevents motor burnout if the blades are obstructed. Should the fan blades become blocked, the motor winding's impedance is designed to increase, which limits the current and stops the temperature from rising beyond a safe threshold.

With a noise level of 80 dBA, this fan is engineered for performance in environments where high airflow is the primary objective. While not silent, the sound level is a direct consequence of the high volume of air being moved at great speed and is a typical characteristic of high-performance industrial fans. In applications like data centers and welding booths, this acoustic level is generally acceptable and represents a necessary trade-off for the critical cooling it delivers.

A World of Applications

The combination of powerful airflow, durable construction, and dependable operation makes this 254mm AC axial fan suitable for a wide array of applications. Its capabilities are essential in:

• Industrial Automation and Control Panels: Effectively cooling PLCs, VFDs, and other sensitive electronics in sealed enclosures.

• Telecommunications and IT: Providing vital cooling for server racks, network switches, and data centers.

• Manufacturing and Production: Ventilating welding areas, extracting fumes, and cooling heavy machinery.

• HVAC and Refrigeration: Circulating air in large-scale heating, ventilation, and air conditioning systems.

• Renewable Energy: Cooling inverters and power conversion equipment in solar and wind power installations.

• Agriculture: Ventilating greenhouses and livestock barns to manage temperature and humidity.

In conclusion, the 254mm x 89mm high-speed AC axial fan is more than a mere component; it is a fundamental solution for thermal management. Its potent airflow, resilient ball bearing system, rugged build, and adaptable design provide the reliability and performance needed to protect critical equipment, ensure operational continuity, and thrive in the most demanding industrial and commercial settings.
