Dependable AC Axial Fan: Robust Cooling for Demanding Environments

Crafted for outstanding performance and dependability, this 220x60mm AC axial fan represents the ultimate cooling apparatus for a broad scope of electronic and industrial uses. This fan, which runs on a 220V AC supply, is engineered to produce consistent and potent airflow, maintaining ideal operating temperatures for sensitive components and machinery. Its sturdy build and sophisticated characteristics make it an indispensable component for any system that requires trustworthy thermal regulation.

Central Performance and Design

The core of this fan's impressive capability lies in its power to produce a substantial airflow of 325 cubic feet per minute (CFM). This high level of air movement is achieved with a velocity of 2500 revolutions per minute (RPM), making it exceptionally effective for dissipating heat and preserving a consistent thermal environment. The fan's design directs air in a path parallel to the motor shaft, a quality of axial fans that is perfect for cooling large enclosures and devices.

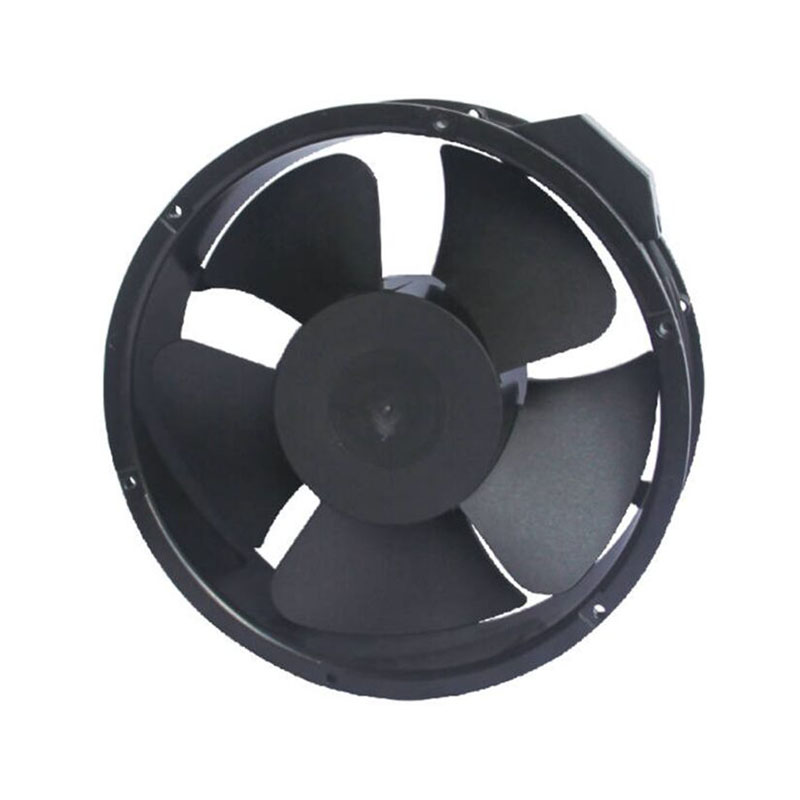

The unit's dimensions, with a 211mm diameter and a 60mm depth, create a substantial yet manageable footprint suitable for integration into diverse systems and enclosures. A rugged aluminum frame provides a solid and protective housing for the fan’s internal mechanisms. The impeller, which has five aerodynamically shaped blades, is constructed from high-grade plastic optimized for maximum air displacement and operational effectiveness. This material combination ensures both long-lasting durability and reliable performance.

The Ball Bearing Technology Advantage

A crucial aspect of this AC axial fan is its dual ball bearing configuration. Ball bearings are celebrated for their resilience and prolonged service life, surpassing conventional sleeve bearings in multiple key respects. They exhibit lower susceptibility to wear and can function efficiently at more elevated temperatures, making them highly suitable for challenging industrial settings.

Furthermore, the implementation of ball bearings permits the fan's installation in any orientation—horizontally, vertically, or at an angle—without impairing its performance or longevity. In complex or tightly packed installations, this adaptability offers a considerable benefit. Although fans with ball bearings might be marginally louder than their sleeve-bearing equivalents, their superior reliability and durability often establish them as the preferred choice for critical, high-performance applications.

Comprehending Airflow and Static Pressure

This fan's technical data highlights its impressive 325 CFM airflow and a static pressure rated at 0.40 inchH₂O. The volume of air that the fan can displace each minute is indicated by its airflow measurement in CFM. A higher CFM value suggests a greater potential for cooling, making this unit well-suited for applications that generate considerable amounts of heat.

Static pressure, conversely, measures the fan's capacity to move air against obstructions. In numerous industrial and electronic configurations, components are packed closely together, creating resistance to airflow. A fan possessing adequate static pressure can overcome these impediments, ensuring that cool air reaches all vital areas. There is an inverse relationship between static pressure and airflow; as one increases, the other typically decreases. This fan's balanced characteristics of strong airflow and moderate static pressure make it a flexible solution that performs well in both open and somewhat restricted environments.

Applications and Versatility

The powerful performance and sturdy design of this 220V AC axial fan make it appropriate for an extensive range of uses. Its main purpose is to deliver forced-air cooling to electronic equipment, thereby preventing overheating and premature failure. Common uses include:

• Industrial Machinery: Temperature regulation for process controls, transformers, and power generators.

• Telecommunications: Preserving optimal temperatures within server cabinets and communications hardware.

• HVAC Systems: Employed for ventilation and air movement in commercial and industrial structures.

• Electronics Enclosures: Supplying essential cooling for densely configured electronic assemblies.

• Manufacturing: Extracting fumes, dust, and heated air from industrial areas like workshops and warehouses.

Installation and Operation

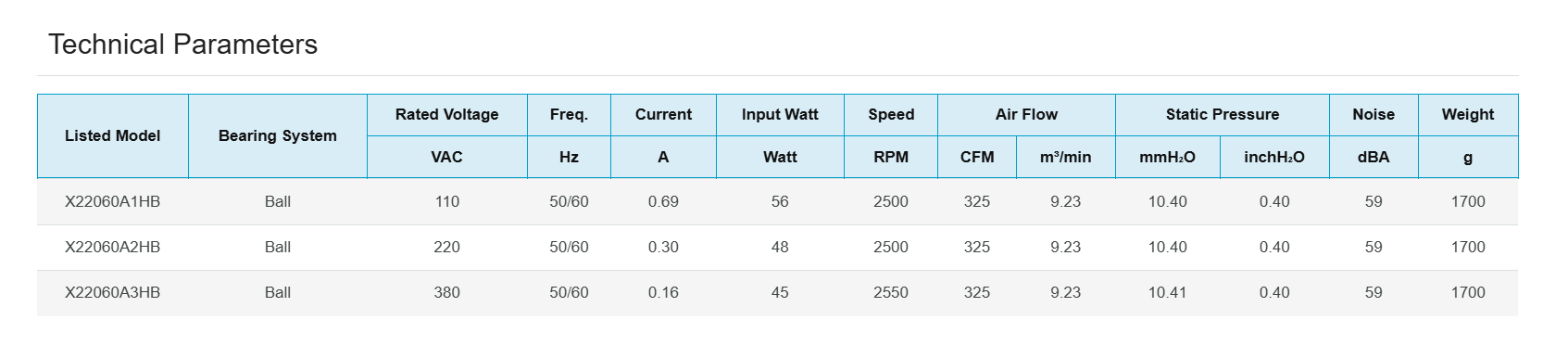

Engineered for simple installation, the fan includes pre-drilled mounting holes within its frame. It functions on a standard 50/60 Hz frequency, drawing 0.30 A of current with a 48-watt power input. Its noise output is rated at 59 dBA, a reasonable sound level for a fan of this size and power, particularly within industrial settings where ambient noise is generally higher. With a weight of 1700 grams, it is a solid, substantial unit that reflects its robust construction.

In summary, this high-velocity 220x60mm AC axial fan presents a versatile, dependable, and powerful cooling apparatus. Its significant airflow, long-lasting ball bearing system, and rugged build establish it as a superb choice for numerous applications where efficient thermal management is crucial for operational longevity and stability.
