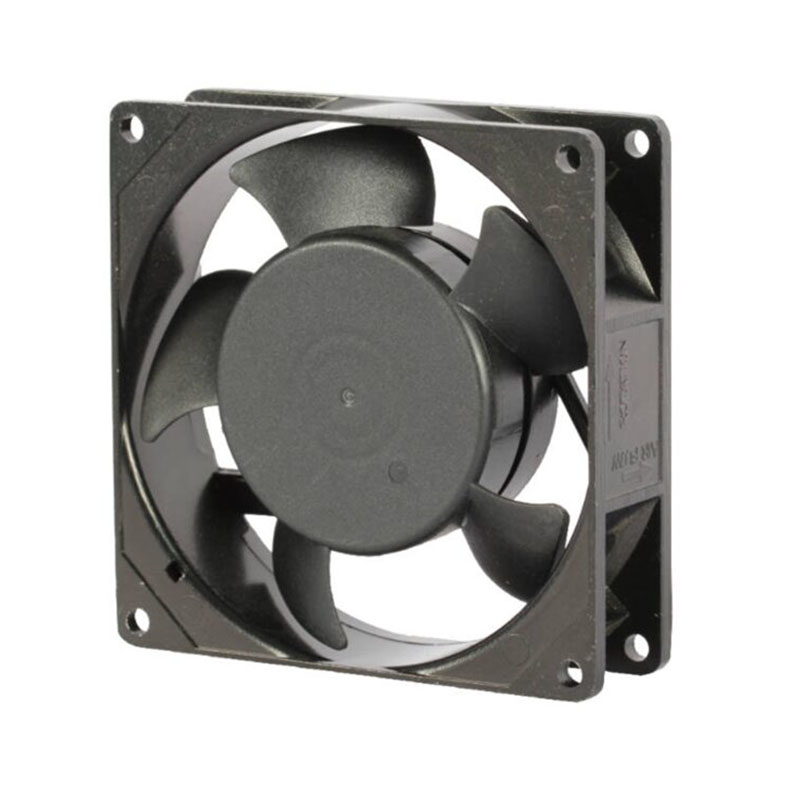

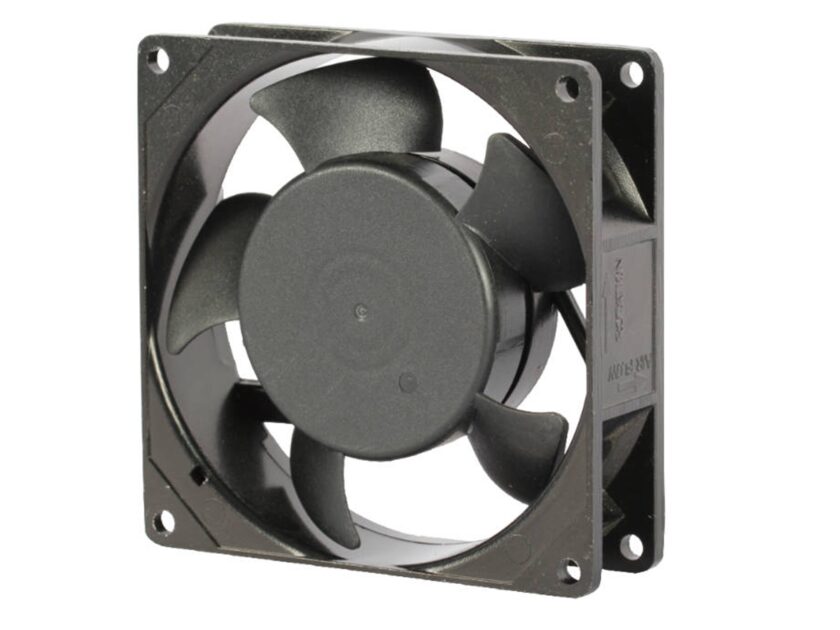

An In-depth Overview of the 92x92x25mm Ball Bearing AC Axial Fan (110-380V)

This premium 92x92x25mm AC axial fan provides a remarkable combination of a space-saving form factor, wide-ranging power compatibility, and dependable air cooling effectiveness. These qualities establish it as an ideal solution for a vast spectrum of digital and industrial uses that demand potent, silent, and resilient air movement.

Engineered for Compact Power & Resilient Construction

Fashioned with a meticulously measured square frame of 92mm in both width and height, this AC axial fan boasts a very slim profile, at only 25mm thick. This minimal footprint enables a smooth incorporation into space-limited settings like control closets, instrument panels, telecom hardware, medical instruments, and specialized gear where internal space is highly valued.

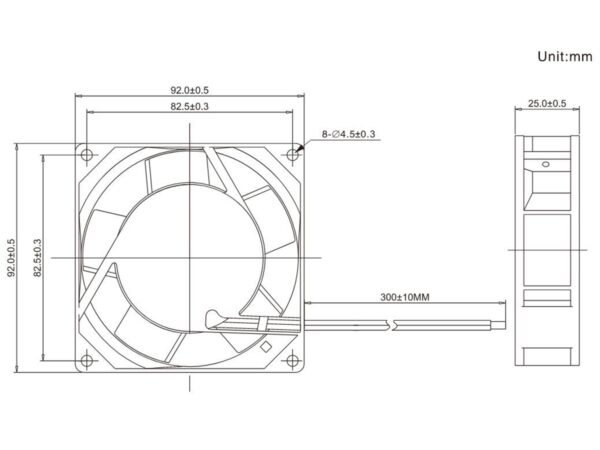

Despite its slender profile, this AC axial fan features a sturdy build. Essential mounting details include corner installation holes positioned 82.5 mm apart diagonally (center-to-center), guaranteeing a firm and stable attachment with standard M3 or M4 screws. The central hub’s diameter is 40.5 mm, which encloses the sophisticated motor and bearing assembly. Crucially, the specifications call for a minimum of 300mm (± 10mm) of clearance behind the unit for unimpeded air intake, which ensures peak airflow performance in actual use. An overall weight of about 272 grams points to a solid construction that utilizes long-lasting materials.

Global Voltage Operation: Unmatched Flexibility

A key attribute of this fan is its extraordinary voltage adaptability. It is carefully engineered to work efficiently over a broad array of typical alternating current power sources across the globe:

• 110V AC: Appropriate for standard North American power grids and several other regional electrical systems.

• 220V AC: Compatible with European, Asian, and many other common international voltages.

• 380V AC: Intended for higher-voltage industrial three-phase power common in heavy machinery and tools.

This wide 110-380V operational scope negates the necessity for different fan models for various power settings. It streamlines inventory for equipment manufacturers and system integrators and also offers future-readiness for devices that might be deployed in diverse geographical areas or inside facilities with varying voltage systems. Despite considerable voltage differences, the unit sustains highly consistent core performance metrics throughout all its versions.

Exceptional Performance and Acoustic Discretion

Harnessing its proficient AC motor design, this axial fan delivers trustworthy and potent cooling:

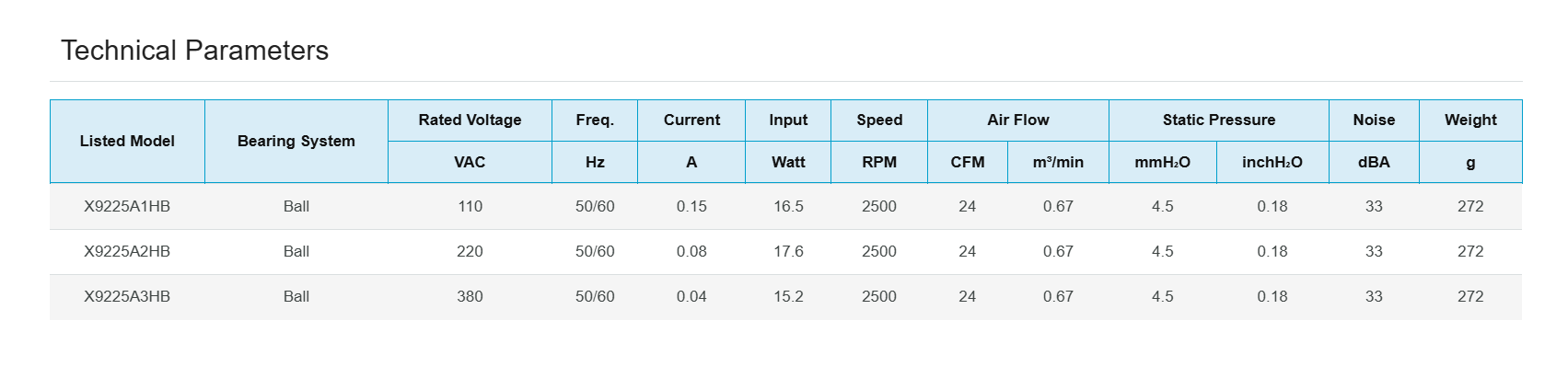

• Airflow: It generates a significant 24 CFM (cubic feet per minute), or 0.67 cubic meters per minute, of air movement. This volume is exceptionally effective for dissipating heat from essential parts within enclosures or over heatsinks.

• Static Pressure: Capable of overcoming system impedance, it produces a static pressure of 4.5 mmH₂O (0.18 inchH₂O). This facilitates effective airflow even when pushing air through filters, grilles, or densely arranged electronic parts.

• Speed & Power: The fan runs at a nominal speed of 2500 RPM (with a ± 10% typical variance), consuming a modest power input between approximately 15.2 W and 17.6 W, based on the voltage used. This balance ensures strong performance without undue energy consumption.

• Remarkable Quietness: A truly noteworthy quality is its minimal acoustic footprint, rated at a mere 33 dBA. Such near-silent operation makes it perfect for noise-sensitive settings like offices, recording booths, medical imaging facilities, and broadcast studios, greatly enhancing user comfort and adherence to sound regulations.




The Advanced Ball Bearing System: A Pillar of Durability

The foundation of this AC axial fan's dependability and prolonged service life is its superior ball bearing system. In contrast to sleeve bearings, ball bearings provide substantial benefits:

• Greater Toughness: Ball bearings are much more resilient to wear, particularly during continuous use or at higher ambient temperatures.

• Higher Temperature Tolerance: They function reliably across a wider temperature spectrum, suiting them for challenging industrial settings.

• Lowered Friction & Lubricant Retention: Reduced friction decreases power loss and heat buildup within the bearing. They also hold onto lubrication more effectively over long durations.

• Prolonged Functional Life: Ball bearings typically provide two to three times the operational lifespan of their sleeve-bearing counterparts (often surpassing 50,000+ hours of L10 life). This results in reduced maintenance expenses and a lower probability of unexpected failure. This characteristic makes the AC axial fan ideal for mission-critical uses, continuous 24/7 operation, and in locations that are challenging to access for service.




Optimal Uses

This versatile AC axial fan is perfectly suited for a wide array of cooling applications:

• Electrical & Industrial Enclosures: Cooling PLCs, drives, power supplies, transformers, and control systems inside cabinets (including NEMA/IP rated or standard types).

• Telecommunications: Providing ventilation for routers, switches, base stations, and server racks.

• Medical Devices: Offering silent, reliable cooling for diagnostic tools, imaging equipment, and laboratory instruments.

• Automation & Machinery: Cooling drives, controllers, lasers, and power electronics.

• Test & Measurement Instruments: Maintaining stable temperatures for delicate electronics.

• Audio/Video & Broadcast Gear: Quietly cooling amplifiers, mixers, and other broadcasting equipment.

• Industrial Vending & Machines: Cooling compressors, control panels, and various internal parts.

• LED Lighting: Providing airflow for high-power LED drivers and components.




Final Thoughts

The 92x92x25mm AC axial fan with a Ball Bearing is a top-tier choice for engineers and designers in search of a compact, high-performing, and exceptionally dependable cooling device. Its global 110-380V AC input allows for unmatched adaptability for worldwide deployment. The sturdy ball bearing construction guarantees long-term reliability and resilience, even under harsh operating circumstances. When combined with its steady airflow (24 CFM/ 0.67 m³/min), ample static pressure (4.5 mmH₂O), and very low noise output (33 dBA), this fan presents an outstanding equilibrium of performance, quietness, and longevity.

Whether the task is to cool delicate electronics in a quiet office environment or to ensure the reliable functioning of industrial equipment, this AC axial fan offers a trustworthy, durable, and acoustically superior answer tailored to contemporary thermal management needs.
