The Apex of Air Circulation: A Detailed Study of the Backward-Curved Brushless DC fan

In the domain of contemporary thermal management and air movement, the requirement for components that are potent, quiet, and remarkably durable has reached an unprecedented level. The 175mm 24V Brushless Backward Curved Brushless DC fan rises to this challenge as a meticulously crafted solution for applications demanding uncompromising performance. This Brushless DC fan merges advanced aerodynamic design, robust materials, and a high-performance motor to provide superior air circulation, significant static pressure, and an impressive operational life, positioning it as a key component for many demanding fields.

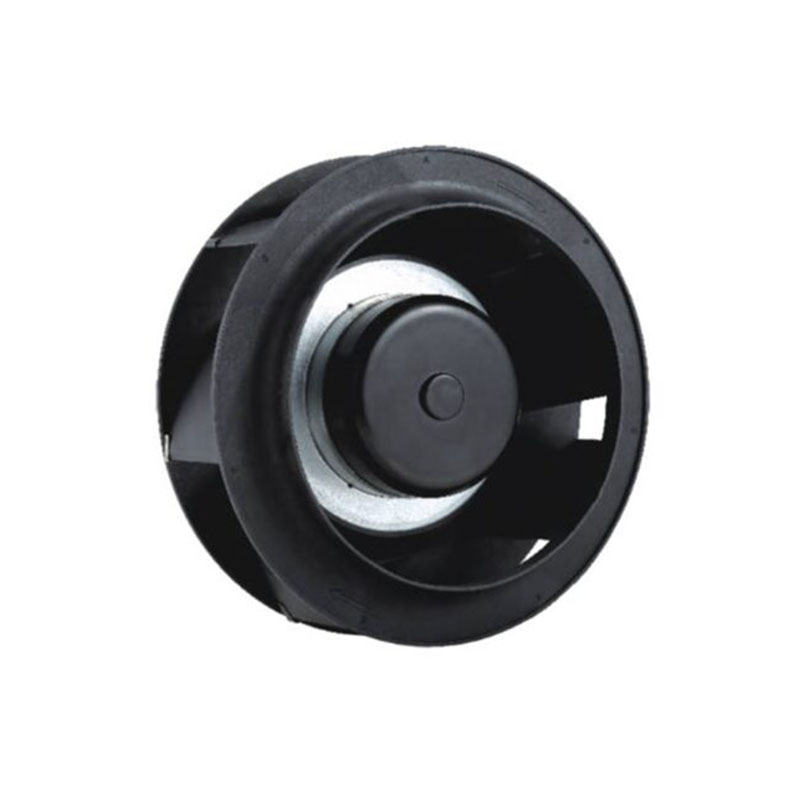

The Aerodynamic Advantage: Backward-Curved Impeller Engineering

The foundation of this Brushless DC fan's outstanding performance lies in its backward-curved impeller. Different from forward-curved or axial-style fans, backward-curved models possess blades that arc away from their direction of rotation. This unique geometry provides several distinct and highly valuable features.

First and foremost, this configuration achieves the greatest static efficiency among all fan varieties. Static efficiency measures a Brushless DC fan's proficiency at converting motor energy into stable air pressure. This elevated efficiency indicates the Brushless DC fan is particularly adept at forcing air against considerable opposition, such as through dense server components, complicated ducting, heavy-duty filters, or heat exchangers. This capability is vital for applications like telecommunications racks, server farms, and sophisticated HVAC units where overcoming pressure loss is a constant necessity. The design of this Brushless DC fan enables it to maintain powerful airflow even when encountering the high impedance and pressure inherent in such environments.

Furthermore, fans with backward curves exhibit a non-overloading power characteristic. This means that if the system's resistance changes, causing the fan to operate at its maximum flow rate (a point of zero static pressure), the motor is not in jeopardy of drawing surplus power or being overloaded. This inherent self-regulating quality offers a crucial protective layer for the motor, thereby augmenting its dependability and longevity.

Performance on Demand: Adaptable Three-Speed Operation

Acknowledging that not every situation demands constant maximum output, this Brushless DC fan is furnished with an adaptable three-speed control mechanism, driven by a steady 24V DC input. This feature permits precise performance adjustments to meet specific cooling or ventilation needs at any given moment, optimizing both air movement and energy usage.

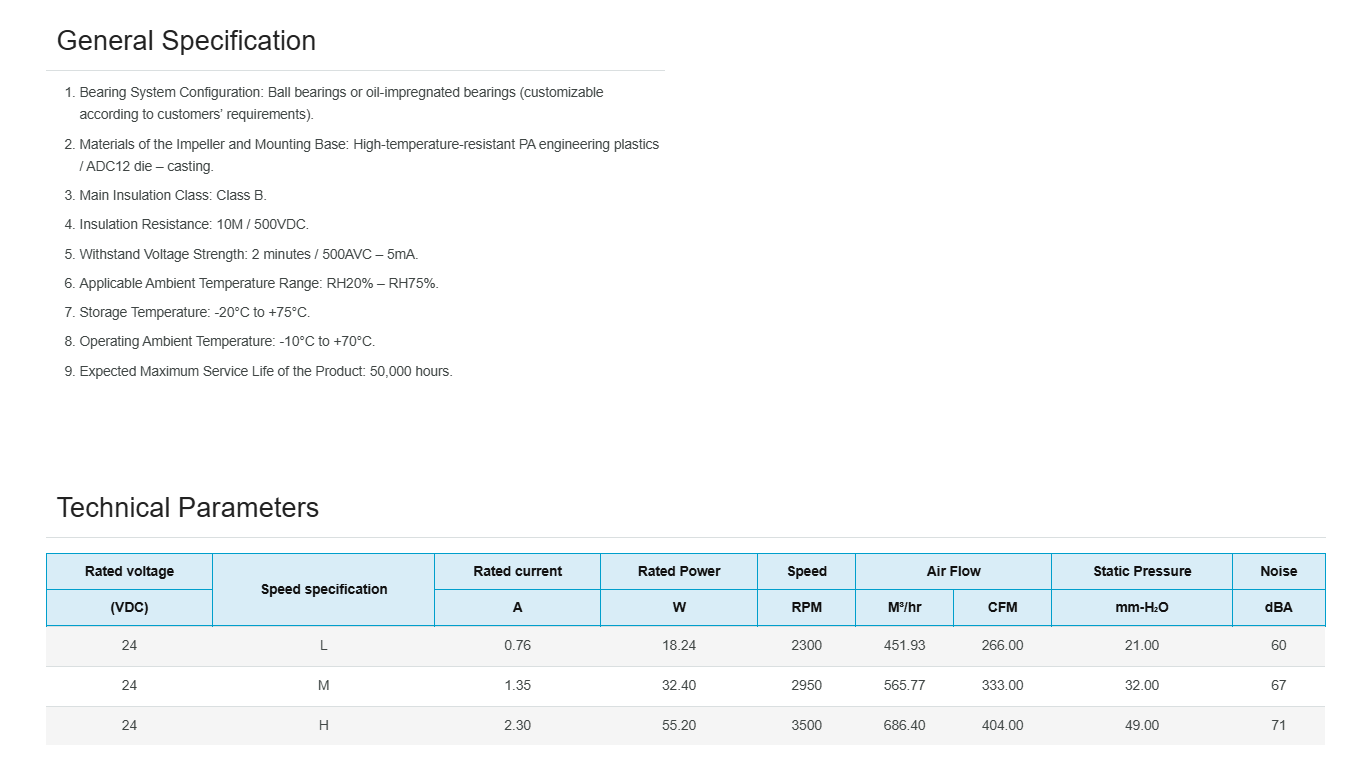

• Low Setting (L): In its most discreet mode, the Brushless DC fan operates at a gentle 2300 RPM. It consumes only 18.24W of power while delivering a substantial airflow of 451.93 M³/hr (266 CFM). This setting generates a static pressure of 21.00 mm-H₂O with a 60 dBA sound level, ideal for standard operational states where a cool, stable environment with minimal acoustic disturbance is paramount.

• Medium Setting (M): For conditions demanding heightened cooling capacity, the medium speed option delivers a major boost. Spinning at 2950 RPM, this Brushless DC fan moves 565.77 M³/hr (333 CFM) of air and creates a 32.00 mm-H₂O static pressure. Power draw increases to 32.40 watts and the noise footprint to 67 dBA, creating an optimal balance between aggressive cooling and operational economy.

• High Setting (H): When optimal thermal dissipation is non-negotiable, the high-speed mode unleashes the fan’s complete capabilities. At a formidable 3500 RPM, it pushes an immense airflow of 686.40 M³/hr (404 CFM) alongside an outstanding static pressure of 49.00 mm-H₂O, capable of surmounting the most severe system impedances. This peak output consumes 55.20 watts and generates a noise level of 71 dBA, ensuring that vital components remain cool even under extreme stress.

Engineered for Endurance: Premier Materials and Construction

The enduring dependability of a Brushless DC fan is intrinsically linked to its build quality. This particular Brushless DC fan is constructed from high-grade materials chosen for their resilience and performance in harsh conditions. Both the impeller and its mounting foundation are fabricated from heat-resistant Polyamide, a type of engineering plastic. Commonly known as nylon, Polyamide is celebrated for its incredible strength, toughness, superior wear resistance, and thermal stability. This guarantees the impeller blades hold their precise aerodynamic profile without distortion or degradation, even through prolonged use at elevated temperatures reaching 70°C.

Its motor is encased in ADC12 die-cast aluminum, a material offering both exceptional structural integrity and serving as a high-quality heat sink, which effectively dissipates thermal energy from the motor for stable, long-term operation. Central to its rotational assembly is a high-precision ball bearing system. When compared to basic sleeve-type bearings, ball bearings result in markedly lower friction, which contributes to a longer lifespan, greater efficiency, and the ability to function dependably at higher temperatures. Crucially, ball bearings allow the Brushless DC fan to be mounted in any orientation—horizontal, vertical, or angled—without affecting its performance or lifespan, offering supreme flexibility for system designers. This robust engineering and material combination culminates in an estimated operational life of 50,000 hours, promising years of reliable, service-free use.

The Powerhouse Inside: Brushless DC Motor Technology

This Brushless DC fan is propelled by a sophisticated brushless DC (BLDC) motor, a primary contributor to its efficiency and longevity. In contrast to traditional motors with brushes, BLDC motors employ electronic commutation, which does away with the physical brushes that are susceptible to wear. This fundamental design variation yields several benefits:

• Greater Efficiency: With no energy squandered on brush friction, BLDC motors are substantially more energy-efficient, converting a higher percentage of electricity directly into rotational energy.

• Extended Lifespan: The elimination of brush wear dramatically prolongs the motor's operational life, making it a more dependable and economical choice over its lifetime.

• Quieter Performance: Removing brush friction results in reduced operational noise and less vibration, a vital characteristic in sound-sensitive equipment.

• Fine-Tuned Control: BLDC motors facilitate smooth, precise speed regulation across their entire RPM spectrum, which enables the versatile three-speed functionality of this fan.

Moreover, the fan's electrical architecture adheres to stringent safety and quality protocols. It possesses Class B insulation, rated to handle maximum operating temperatures of 130°C (266°F), which offers a substantial safety buffer and protects motor windings from heat damage. A high insulation resistance of 10MΩ at 500VDC and its ability to withstand 500VAC for two minutes underscore its electrical robustness and secure operation.

Wide-Ranging Applications and Simple Integration

With its 175mm frame, potent performance, and sturdy build, this backward-curved fan is an exemplary choice for an extensive array of applications. Its capacity for generating high static pressure makes it perfectly suited for:

• Cooling densely packed server racks, electronics cabinets, and telecommunications hardware.

• Ventilation systems that require air to be propelled through ducting.

• Air filtration equipment and purification units.

• Industrial control systems and medical apparatus.

• Any scenario where reliable airflow is necessary in a high-impedance environment.

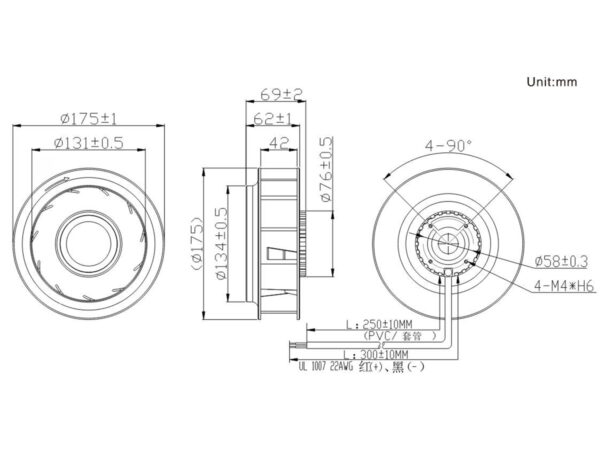

A detailed schematic, clearly identifying the mounting locations (4-M4), ensures that engineers can integrate the fan into their systems with both precision and ease.

In summary, this 24V Brushless Backward Curved Brushless DC fan embodies the forefront of air-moving technology. It presents a powerful union of high airflow, exceptional static pressure, and adaptable speed control, all contained within a highly reliable and resilient assembly. From its aerodynamically superior impeller to its durable ball bearings and efficient brushless motor, every element is engineered to provide uncompromising performance for the most challenging applications.
