Exploring the Apex of Air Circulation: A Deep Dive into the Backward Curved DC Centrifugal Fan

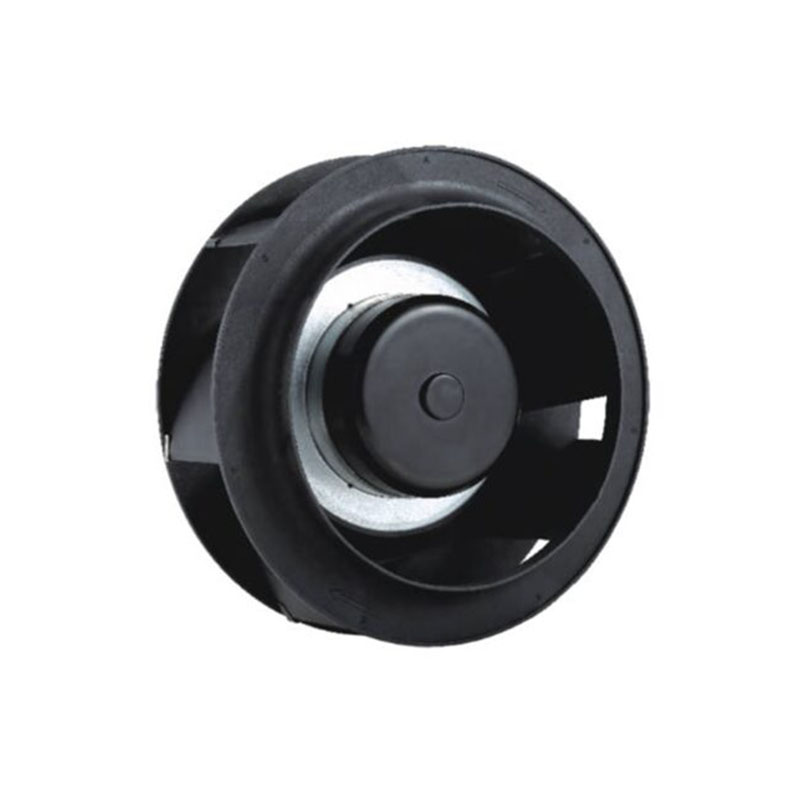

In the domain of contemporary thermal management and air circulation, the demand for components that are potent, acoustically refined, and remarkably durable has reached an all-time high. Rising to this challenge is the 175mm 24V Brushless Backward Curved DC centrifugal fan, a meticulously engineered solution created for applications where high performance is indispensable. This DC centrifugal fan merges state-of-the-art aerodynamic design, robust materials, and a high-performance motor to provide superior air circulation, significant static pressure, and an impressive operational lifespan, positioning it as a cornerstone component for numerous demanding fields.

The Aerodynamic Edge: Backward-Curved Impeller Engineering

The core of this DC centrifugal fan's outstanding capability lies in its backward-curved impeller. In contrast to forward-curved or axial fan configurations, backward-curved models possess blades that curve away from the direction of travel. This unique geometry furnishes several distinct and highly valuable benefits.

Primarily, this design achieves the highest static efficiency among all fan varieties. Static efficiency serves as a metric for a DC centrifugal fan's proficiency in converting motor energy into stable air pressure. This elevated efficiency indicates the DC centrifugal fan is particularly adept at forcing air against considerable opposition, such as through dense server components, intricate ducting, heavy-duty filters, or heat exchangers. This capability is vital for applications like telecommunications racks, server farms, and sophisticated HVAC units where overcoming pressure drops is a constant requirement. The design of this DC centrifugal fan enables it to sustain exceptional airflow performance, even when encountering the high resistance and pressure inherent in such environments.

Additionally, fans with backward curves exhibit a non-overloading power curve. This means that should the system's opposition fluctuate, causing the fan to run at its maximum flow rate (a zero static pressure point), the motor is not in jeopardy of drawing surplus power or being overloaded. This inherent self-regulating quality provides a crucial protective layer for the motor, thereby augmenting its dependability and longevity.

Performance on Demand: Versatile Three-Speed Functionality

Understanding that not every scenario requires continuous peak output, this DC centrifugal fan comes furnished with an adaptable three-speed control mechanism, driven by a reliable 24V DC source. This feature permits precise performance adjustments to meet specific cooling or ventilation needs at any given moment, optimizing both air movement and energy usage.

• Low Setting (L): In its most discreet mode, the DC centrifugal fan spins at a gentle 2300 RPM. Here, it draws a mere 18.24W of power, yet provides a substantial airflow of 451.93 cubic meters per hour (M³/hr), or 266 cubic feet per minute (CFM). This setting produces a static pressure of 21.00 mm-H₂O at a sound level of 60 dBA, making it ideal for standard operational states where a cool, stable environment with minimal noise is paramount.

• Medium Setting (M): For conditions that demand a heightened cooling capacity, the medium speed option delivers a major boost. Operating at 2950 RPM, this DC centrifugal fan circulates 565.77 M³/hr (333 CFM) and achieves a static pressure of 32.00 mm-H₂O. Power draw increases to 32.40 watts and the noise footprint to 67 dBA, creating an optimal balance between aggressive cooling and operational economy.

• High Setting (H): When maximum heat dissipation is non-negotiable, the high-speed mode unleashes the fan’s complete capabilities. At a formidable 3500 RPM, it pushes an immense airflow of 686.40 M³/hr (404 CFM) alongside an outstanding static pressure of 49.00 mm-H₂O, capable of surmounting the most severe system impedances. This peak output consumes 55.20 watts and generates a noise level of 71 dBA, ensuring that vital components remain cool even under extreme stress.

Engineered for Endurance: Premier Materials and Construction

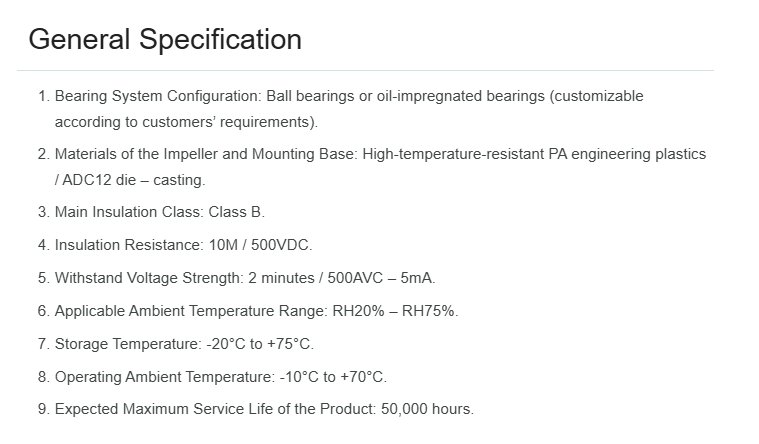

A DC centrifugal fan's long-term dependability is inextricably tied to its build quality. This particular DC centrifugal fan is assembled from high-grade materials chosen for their resilience and performance in harsh conditions. Both the impeller and its mounting base are fabricated from heat-resistant Polyamide engineering plastics. Polyamide (commonly nylon) is celebrated for its incredible strength, toughness, superior wear resistance, and thermal stability. This guarantees the impeller blades hold their precise aerodynamic profile without distortion or degradation, even through prolonged use at elevated temperatures reaching 70°C.

The motor is encased in ADC12 die-cast aluminum, a material offering both exceptional structural integrity and serving as a high-quality heat sink, which effectively dissipates thermal energy from the motor for stable, long-term operation. Central to its rotational assembly is a high-precision ball bearing system. When compared to basic sleeve bearings, ball bearings result in markedly lower friction, which contributes to a longer lifespan, greater efficiency, and the ability to function dependably at higher temperatures. Crucially, ball bearings enable the DC centrifugal fan to be mounted in any orientation—horizontal, vertical, or angled—without affecting its performance or lifespan, offering supreme flexibility for system designers. This robust engineering and material combination culminates in an estimated maximum operational life of 50,000 hours, promising years of reliable, service-free use.

The Powerhouse Within: Brushless DC Motor Technology

This DC centrifugal fan is propelled by a sophisticated brushless DC (BLDC) motor, a primary contributor to its efficiency and longevity. In contrast to traditional motors with brushes, BLDC motors employ electronic commutation, which does away with the physical brushes that are susceptible to wear. This fundamental design variation yields several benefits:

• Greater Efficiency: With no energy squandered on brush friction, BLDC motors are substantially more energy-efficient, converting a higher percentage of electricity directly into rotational energy.

• Extended Lifespan: The elimination of brush wear dramatically prolongs the motor's operational life, making it a more dependable and economical choice over its lifetime.

• Quieter Performance: Removing brush friction results in reduced operational noise and less vibration, a vital characteristic in sound-sensitive equipment.

• Fine-Tuned Control: BLDC motors facilitate smooth, precise speed regulation across their entire RPM spectrum, which enables the versatile three-speed functionality of this fan.

Moreover, the fan's electrical architecture adheres to rigorous quality and safety protocols. It possesses Class B insulation, rated to handle maximum operating temperatures of 130°C (266°F), which offers a substantial safety buffer and protects motor windings from heat damage. A high insulation resistance of 10MΩ at 500VDC and its ability to withstand 500VAC for two minutes underscore its electrical integrity and safe functionality.

Broad Applications and Effortless Integration

With its compact 175mm form factor, potent performance capabilities, and sturdy build, this backward-curved centrifugal fan is an exemplary choice for an extensive array of applications. Its capacity for generating high static pressure makes it perfectly suited for:

• Cooling densely packed server racks, electronics cabinets, and telecommunications hardware.

• Ventilation systems that require air to be propelled through ducting.

• Air purification units and filtration systems.

• Industrial control systems and medical apparatus.

• Any scenario where reliable airflow is necessary in a high-impedance environment.

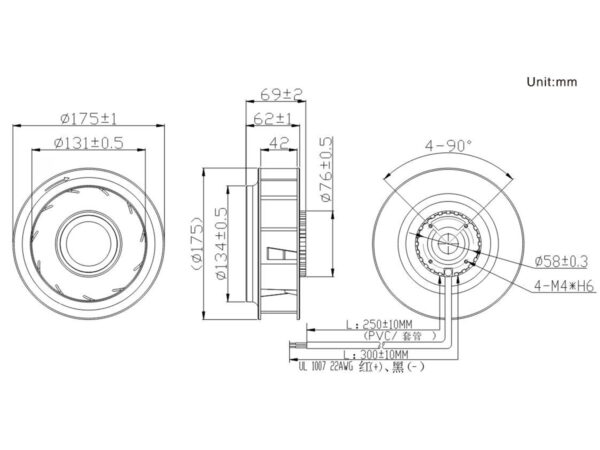

The detailed dimensional schematic, featuring clearly identified mounting locations (4-M4), ensures that engineers and designers can integrate the fan into their systems with both ease and precision.

In summary, this 24V Brushless Backward Curved DC centrifugal fan embodies the forefront of air-moving technology. It presents a powerful union of high airflow, extraordinary static pressure, and adaptable speed control, all contained within a resilient and exceptionally reliable assembly. From its aerodynamically superior impeller to its durable ball bearings and efficient brushless motor, every element has been engineered to provide uncompromising performance for the most challenging applications.
