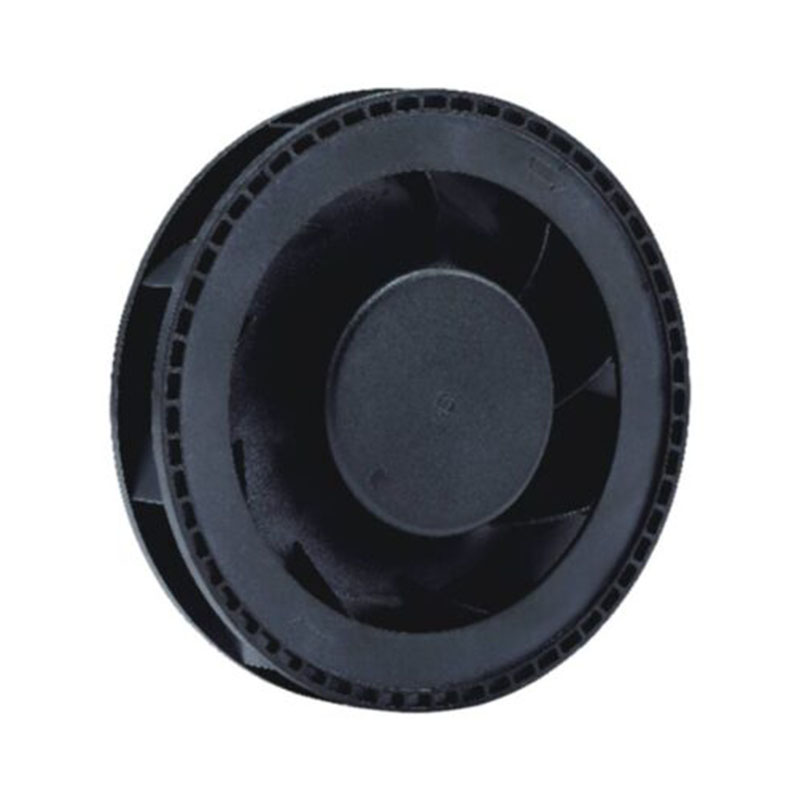

Mastering Compact Thermal Control: An In-Depth Look at the 100x25mm Backward-Curved DC centrifugal fan

In the fast-paced domain of electronics and industrial machinery, the continuous drive for smaller, more powerful, and highly efficient designs introduces a major hurdle: heat dissipation. As components become more densely arranged, the need for advanced cooling systems that are not just effective but also compact, adaptable, and exceptionally dependable becomes paramount.

The 100x25mm Backward Curved DC centrifugal fan emerges as a solution, representing a pinnacle of modern engineering that provides a potent, multifaceted cooling capacity within a remarkably small form factor. This DC centrifugal fan is more than a mere component; it serves as a complete thermal management system, offering unmatched versatility through its operation on multiple voltages, a wide array of speed settings, and a construction designed for extreme durability.

The Aerodynamic Supremacy of the Backward-Curved Impeller

The foundation of this DC centrifugal fan's outstanding performance lies within its sophisticated backward-curved impeller architecture. In contrast to axial fans moving air along the motor's axis or forward-curved blowers, this configuration utilizes blades that curve away from the rotational direction. This specific aerodynamic profile delivers several crucial benefits, making it a superior option for high-impedance scenarios.

Firstly, backward-curved fans are celebrated for their exceptional static efficiency. This means they excel at converting the motor's energy into air pressure. This ability to generate significant pressure is vital for overcoming system resistance, such as pushing air through dense heatsink arrays, convoluted duct systems, tightly packed server chassis, or high-efficiency particulate air (HEPA) filters. While other fans might experience a sharp decline in airflow under such pressures, this DC centrifugal fan maintains robust output, ensuring vital components receive necessary cooling.

Secondly, this design exhibits a non-overloading power characteristic. This is an inherent safety mechanism; when system resistance drops and airflow increases, the power consumed by the motor reaches a maximum and then tapers off. This characteristic prevents the motor from drawing excessive current and overloading, even when operating at its point of highest airflow (zero static pressure). This self-regulating quality protects the motor from potential damage and elevates the overall reliability and safety of any system where it is integrated.

Unmatched Flexibility: Multi-Voltage and Multi-Speed Operation

Perhaps the most compelling aspect of this centrifugal fan is its extraordinary operational adaptability. It is engineered to function optimally across different DC voltages and provides a broad spectrum of speed configurations, allowing system designers to pinpoint the precise performance level needed for any application. This versatility can eliminate the need to source multiple fan models for various projects, thereby streamlining supply chains and design workflows.

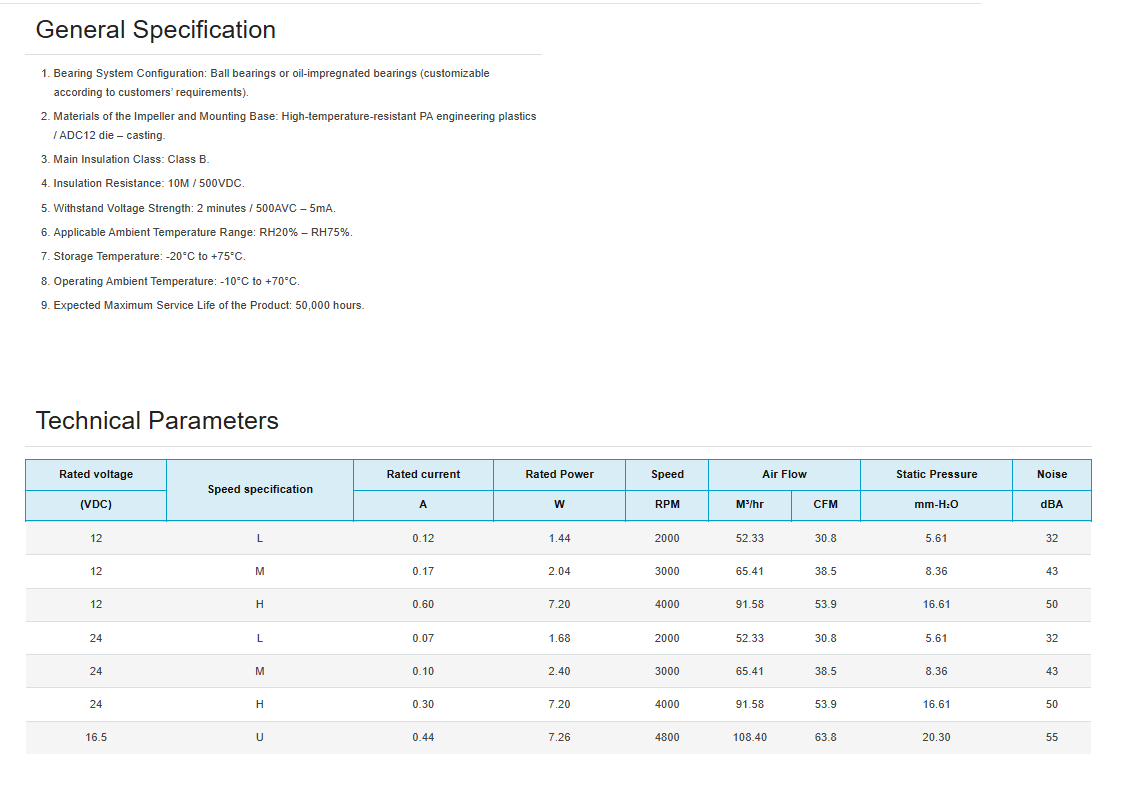

12V DC Operation: When powered by a 12V source, this DC centrifugal fan offers three separate performance levels, balancing airflow, energy use, and acoustics:

• Low Speed (L): Ideal for quiet, continuous operation, this setting runs at 2000 RPM. It consumes a mere 1.44W while producing 30.8 CFM (52.33 M³/hr) of airflow and generating 5.61 mm-H₂O of static pressure. With a noise output of just 32 dBA, it suits office equipment or sound-sensitive medical instruments.

• Medium Speed (M): Providing a step up in capability, the medium setting operates at 3000 RPM. Airflow climbs to 38.5 CFM (65.41 M³/hr) with an 8.36 mm-H₂O static pressure. This mode presents a solid middle ground for applications requiring more cooling without a major increase in sound (43 dBA).

• High Speed (H): For challenging cooling requirements, the high setting spins at 4000 RPM. It pushes a strong 53.9 CFM (91.58 M³/hr) of air and produces a substantial static pressure of 16.61 mm-H₂O, making it capable of handling significant thermal loads. This peak 12V performance is reached at a reasonable 50 dBA.

24V DC Operation: Moving to a 24V power source unlocks the fan's higher efficiency potential, matching the speed tiers of the 12V setup but with different electrical figures:

• Low (L) & Medium (M) Speeds: The performance numbers for airflow, speed, static pressure, and noise at the 2000 RPM and 3000 RPM settings are identical to the 12V operation. The DC centrifugal fan, however, achieves this with greater electrical efficiency, consuming just 0.07A and 0.10A respectively.

• High Speed (H): At the 24V high setting, this DC centrifugal fan replicates the 12V high-speed output of 4000 RPM, 53.9 CFM, and 16.61 mm-H₂O, delivering robust cooling for thermally intensive environments.

Ultra-High Performance Mode (16.5 V DC - "U"): For uses that require the absolute maximum performance possible from this form factor, the fan provides a special ultra-high-speed mode, specified at 16.5V.

• Ultra Speed (U): This setting drives the fan to an impressive 4800 RPM. It generates a formidable 63.8 CFM (108.40 M³/hr) of airflow and achieves a peak static pressure of

  20.30 mm-H₂O. This configuration is engineered to handle the most extreme thermal conditions in the most compact units, ensuring system stability under heavy loads.

This incredible assortment of operational modes makes this single DC centrifugal fan model a comprehensive solution for engineers, delivering performance profiles suited for everything from silent, gentle airflow to aggressive, high-pressure cooling.

Designed for Longevity: Resilient Materials and Construction

A DC centrifugal fan's performance is incomplete without reliability. This centrifugal fan is carefully constructed from high-grade materials to guarantee an exceptionally long and service-free operational life.

• Bearing System: At its core are high-precision ball bearings. Vastly superior to conventional sleeve bearings, ball bearings result in lower friction, greater efficiency, and a much longer lifespan, rated for an expected 50,000 service hours. They are also less susceptible to temperature changes and allow the fan to be installed in any orientation (vertical, horizontal, or angled) without degrading performance or durability.

• Impeller and Housing: The impeller and its mounting base are created through injection molding using a high-temperature-resistant Polyamide engineering plastic. This advanced polymer is chosen for its remarkable strength, rigidity, and thermal stability, which ensures the impeller blades retain their precise aerodynamic shape even when running continuously in environments reaching 70°C (158°F).

• Motor Base: The motor of the DC centrifugal fan is affixed to a die-cast ADC12 aluminum base. This provides a rigid and vibration-absorbing foundation and also serves as a proficient heat sink, pulling thermal energy away from the motor's windings to promote cool, stable, and efficient operation.

The electronics of the DC centrifugal fan are equally robust, with Class B insulation and an insulation resistance of 10MΩ/500VDC, protecting against electrical faults and ensuring operational safety across its broad -10°C to +70°C operating temperature range.

Applications and Integration

The blend of a small 100x25mm footprint, powerful performance, and operational versatility makes this DC centrifugal fan an outstanding choice for a vast array of applications:

• IT and Networking: Excellent for blade servers, routers, switches, and other rack-mounted hardware where high-density electronics produce significant heat in confined areas.

• Medical and Laboratory Devices: Its quiet operation at lower speeds and high reliability make it fitting for diagnostic machinery, analytical instruments, and medical equipment where both performance and patient comfort are vital.

• Industrial Automation and Controls: Perfect for cooling PLCs, motor controllers, and control cabinets on the factory floor, where dependability in harsh settings is essential.

• Air Purification and HVAC: The high static pressure is ideal for forcing air through multi-stage filters in purifiers or for use in localized ventilation units.

• LED Lighting and Digital Signage: Efficiently dissipates heat from powerful LEDs and display controllers, preventing performance decline and extending component life.

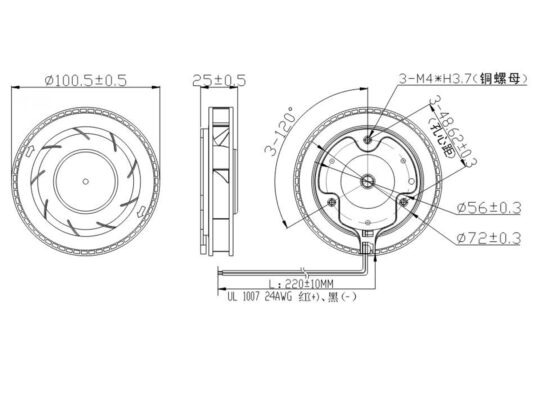

Integration is simplified by the clear mechanical drawing, which gives precise dimensions and indicates the three M4 brass nut mounting locations for a secure and straightforward installation.

In conclusion, the 100x25mm DC centrifugal fan is a testament to the possibilities in modern thermal solutions. It is a compact dynamo that provides an unmatched fusion of performance, adaptability, and durability. By offering a wide operational scope across multiple voltages and speeds, and by being built upon a foundation of superior materials and excellent engineering, this DC centrifugal fan gives designers and engineers the ultimate tool to overcome complex cooling problems, helping their products run cooler, operate longer, and perform better.
