The Ultimate 120mm Brushless Cooling DC Bracket Fan: A Fusion of Power, Precision, and Protection

In the realm of high-end electronics and powerful industrial equipment, managing heat effectively is not merely a recommendation; it is an absolute necessity. As components grow more potent and are packed into smaller spaces, the thermal energy they generate can degrade performance and significantly reduce their operational life.

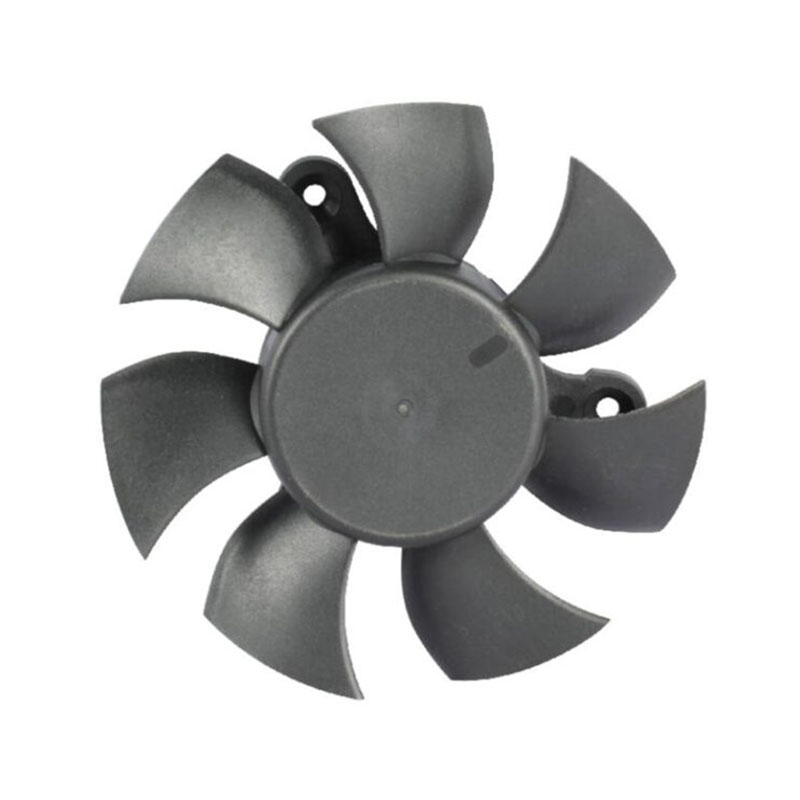

This 120mm brushless DC bracket fan has been meticulously engineered to confront these challenges directly, providing a formidable cooling solution that merges strong performance with smart controls and built-in safeguards for unparalleled dependability. Created for critical applications where system failure is unacceptable, this DC bracket fan stands as the premier selection for everything from high-end computing and server arrays to industrial automation cabinets and sensitive electronics.

Unsurpassed Cooling Capability

At the heart of this DC bracket fan's design is its capacity to move a massive volume of air with considerable force. It comes in two distinct performance models to suit various cooling requirements. The high-speed variant is a genuine powerhouse, spinning at 2300 revolutions per minute to generate a remarkable airflow of 77.30 CFM. This high airflow rating is crucial for scenarios that must dissipate large heat loads quickly, guaranteeing components stay within their optimal temperature range even during intense operation.

Complementing its high airflow is a robust static pressure measuring 0.13 inchH2O (3.25 mmH2O). Static pressure indicates the fan's power to push air through restrictive objects like dense radiators, heatsinks, and protective grilles. This capability makes the high-speed version exceptionally effective within tightly packed chassis where airflow is constricted. For systems where acoustic levels and energy use are of greater concern, a second model operates at a more subdued 1700 RPM. This version still pushes a very respectable 57.31 CFM of air and maintains 0.06 inchH2O (1.60 mmH2O) of static pressure, presenting a balanced solution that doesn't overly sacrifice cooling strength.

The Advantage of Brushless DC Motors

The core of this DC bracket fan is its sophisticated brushless DC (BLDC) motor. Unlike conventional DC motors that depend on physical brushes for power commutation, brushless designs employ electronics instead. This modern architecture does away with the friction and wear associated with brushes, which leads to a multitude of significant benefits. The most prominent advantage is a greatly extended lifespan coupled with superior reliability. With no brushes to wear out, the motor is far less susceptible to failure and requires virtually no upkeep, a critical feature in server or industrial settings where any downtime can be exceptionally costly.

The elimination of brush friction also results in the motor running more quietly and generating less of its own thermal energy, which enhances overall system efficiency. This effectiveness translates into lower power requirements; the high-speed version consumes only 3.84W, while its more moderate counterpart uses an even lower 2.16W. Such power efficiency is not only better for the environment but also lowers operating costs over the fan's lifetime.

Smart Control via Pulse Width Modulation (PWM)

This DC bracket fan is furnished with Pulse Width Modulation (PWM) technology, which offers precise and dynamic speed regulation. Instead of operating at a fixed, constant velocity, PWM enables the fan's speed to be adjusted dynamically based on the system's current thermal demands. A dedicated fourth wire receives a control signal that rapidly switches the motor's power on and off. The proportion of "on" time in this cycle, known as the "duty cycle," directly determines the fan's rotational speed.

This intelligent regulation provides several key advantages. It facilitates a perfect balance between cooling effectiveness and noise generation. When a system is idle or under a minimal load, the DC bracket fan's speed can be lowered, significantly reducing both sound and energy consumption. As temperatures rise during demanding tasks, the fan speed can be smoothly increased to deliver maximum cooling. This adaptive cooling approach not only leads to a quieter user environment but also prolongs the fan's operational life by avoiding unnecessary wear.

Engineered for Durability and Safety

Dependability is further reinforced by a collection of integrated safety protections. The frame and impeller of the DC bracket fan are made from a high-grade thermoplastic that adheres to the UL 94V-0 flammability standard. This represents the highest rating achievable for plastics, indicating that the material will cease burning within ten seconds after a flame is removed and will not produce flaming drips, offering a vital safety precaution in any electronic assembly.

The motor itself features impedance protection, which shields it from damage caused by overheating if it stalls. Furthermore, an integrated Auto-Restart function provides an essential layer of security. Should the blades of the DC bracket fan become temporarily blocked by an external object, its internal circuitry will automatically halt power to prevent a current overload that could burn out the motor. Once the obstruction is cleared, the fan will automatically resume operation without needing manual intervention.

Another crucial safety mechanism is Reverse Polarity Protection. This feature prevents damage to the fan's delicate electronics should the power leads be connected incorrectly by mistake. A simple installation error could otherwise destroy the fan, but this protection ensures the component remains safe and operational.

Advanced System Monitoring and Integration

For sophisticated system oversight, this DC bracket fan provides an FG (Frequency Generator) signal output. This is a feedback pulse with a frequency directly proportional to the fan's rotational velocity. System administrators and control boards can use this FG signal to get a real-time report of the fan's RPM. This allows for precise confirmation that the fan is working as intended and can be used to trigger alarms or system alerts if a fan's speed drops below a critical point or fails entirely.

The DC bracket fan is built to function dependably over a broad spectrum of environmental states, featuring an operating temperature range from -10°C to 70°C and a storage temperature range from -40°C to 80°C. This robustness guarantees consistent operation whether it is deployed in a climate-controlled server room or a more demanding industrial environment.

In conclusion, this 120mm brushless DC bracket fan is more than a simple cooling device; it is a complete thermal control solution. It merges the raw capability of high airflow and static pressure with the intelligence of PWM regulation and the dependability of a brushless motor. With its sturdy, flame-retardant build and a comprehensive suite of electronic safeguards, it is engineered for safety and a long service life in the most critical applications. Whether you're assembling a high-end gaming machine, a resilient server installation, or sophisticated industrial equipment, this fan delivers the performance, control, and assurance you need.
