The Quintessential 92mm DC Bracket Fan: A Fusion of Strength, Accuracy, and Safety

In the intricate landscape of modern electronics, effective thermal regulation is not merely a feature—it stands as an essential principle. From high-performance computing and data centers to sophisticated consumer gadgets, the capacity to efficiently disperse heat is paramount for guaranteeing optimal performance, unwavering stability, and a long operational life.

This 92x23mm 12V Brushless DC bracket fan is meticulously engineered to address this critical demand, presenting a masterful union of potent airflow, quiet functionality, and intelligent regulation. Designed for system integrators, IT professionals, and electronics aficionados who refuse to compromise on excellence, this fan represents a pinnacle of cooling engineering, offering a dependable and versatile solution for even the most challenging environments.

Durable Architecture and Superior Materials

At the heart of this DC bracket fan's remarkable dependability lies its first-class design and construction. Both the frame and the seven-bladed impeller are fashioned from a cutting-edge thermal plastic that carries a UL 94V-0 flammability rating. This certification stands as a testament to its safety, signifying the material is self-extinguishing and will not propagate flames, a vital characteristic for components installed within valuable electronic assemblies.

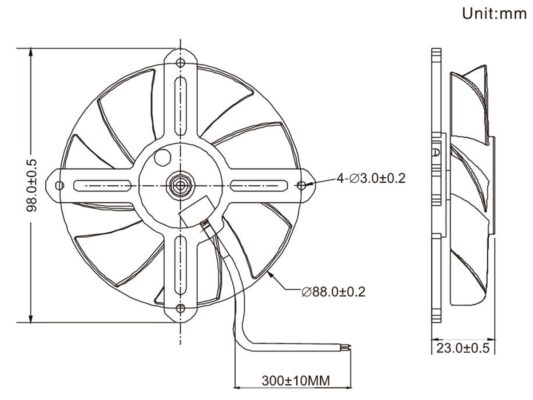

The fan's 92mm form factor is an adaptable standard, achieving an ideal compromise between a compact footprint and substantial air-moving power. Its physical specifications, with a 98mm total frame and a 23mm depth, permit installation across a broad spectrum of uses, including PC cases, CPU coolers, server chassis, and network-attached storage (NAS) units. The four mounting holes, arranged on an 88mm diameter, ensure a secure and straightforward setup.

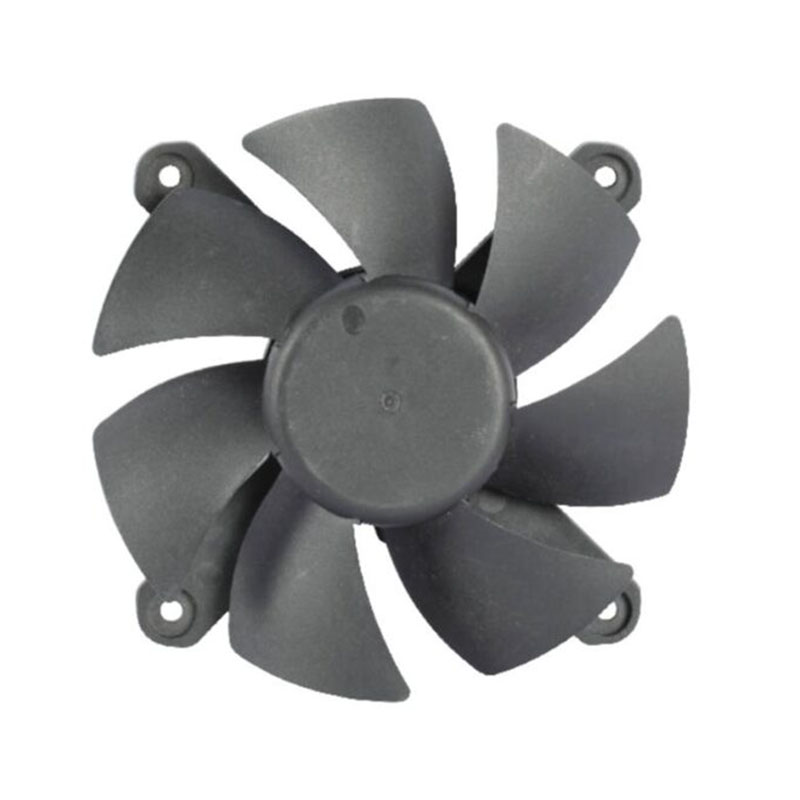

The unique geometry of the seven impeller blades is the product of sophisticated aerodynamic design. These blades are steeply pitched and swept backward to maximize the volume of air displaced with each rotation while concurrently minimizing the acoustic footprint, thereby reducing the turbulence that often leads to unwanted noise.

Connecting this DC bracket fan is made simple and adaptable through the inclusion of 300mm lead wires, which provide sufficient length to connect to motherboard headers or dedicated controllers without requiring extensions in most standard configurations. Every physical aspect of this fan, from its material makeup to its blade shape, has been painstakingly engineered for maximum durability and peak performance.

Uncompromising Power and Efficiency

This DC bracket fan is driven by a sophisticated brushless DC motor, which serves as the core of its performance capabilities. In contrast to older brushed motor designs, the brushless configuration eradicates physical contact brushes. This results in a significantly extended lifespan, outstanding efficiency, reduced operational sound, and minimal electromagnetic interference (EMI). This DC bracket fan is offered in several performance-calibrated versions, enabling users to choose the perfect combination of airflow and acoustics for their specific applications.

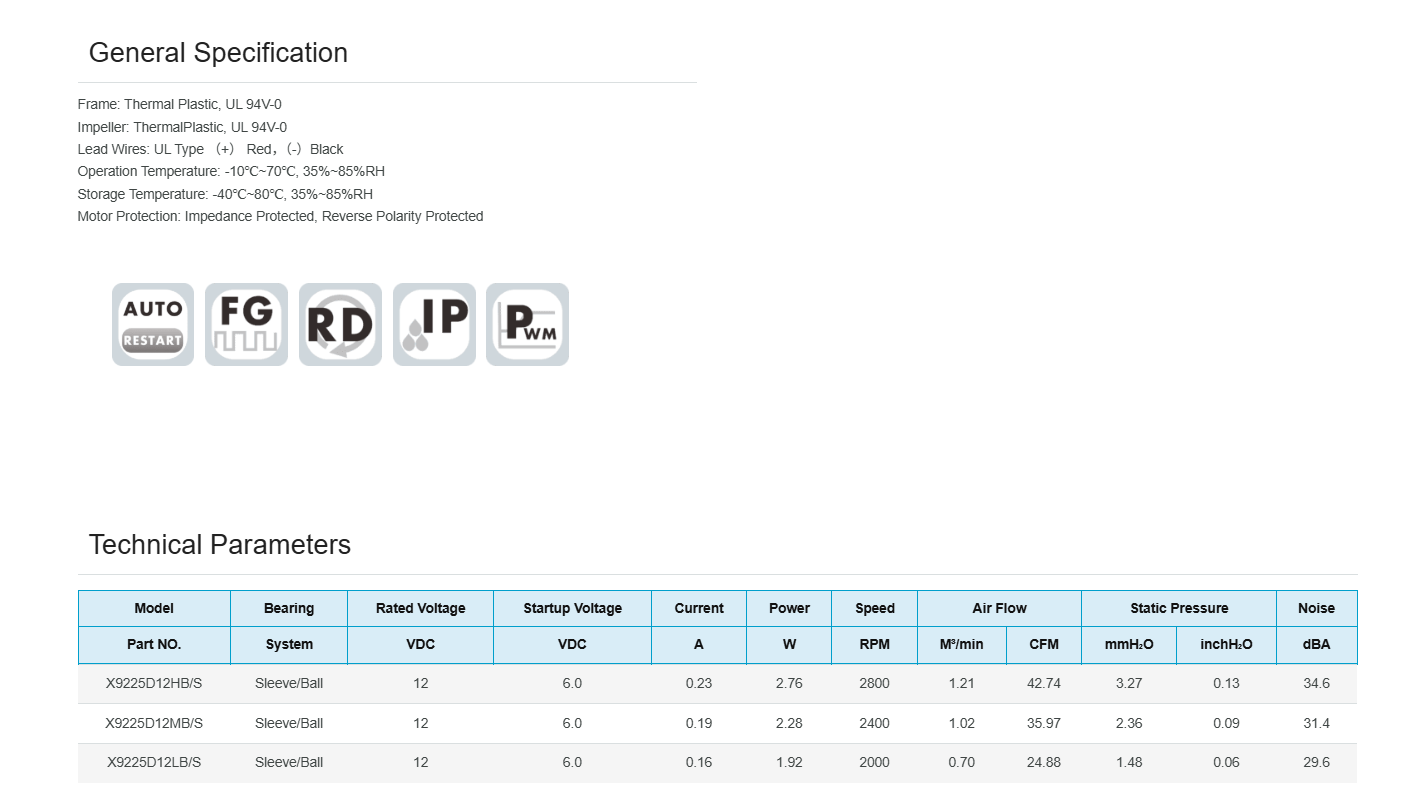

Performance figures are impressive across the entire range. With operational speeds varying from a hushed 2000 RPM to a robust 2800 RPM, the fan is capable of generating a considerable airflow of up to 42.74 cubic feet per minute (CFM). This high volume of airflow is crucial for quickly removing hot air from an enclosure or forcing cool air through restrictive parts.

Beyond sheer airflow, this DC bracket fan excels in producing static pressure, achieving levels up to 3.27 mmH₂O. Static pressure is a vital, often neglected, metric that indicates a fan's ability to move air against opposition. This makes it exceptionally well-suited for situations where air must be driven through dense heatsink fins, dust filters, or cluttered spaces with constricted airflow channels.

Despite this powerful output, the DC bracket fan remains remarkably efficient, with a minimal power draw ranging from only 1.92 to 2.76 watts. This energy efficiency lowers the system's overall power consumption and minimizes the negligible amount of heat contributed by the fan's motor itself.

Intelligent Regulation and Advanced Safeguards

What truly distinguishes this DC bracket fan is its collection of advanced digital features that provide smart control and failsafe operation.

• Pulse Width Modulation (PWM) Speed Control: The integration of PWM functionality transforms this component from a basic fan into an intelligent, responsive cooling instrument. Using a 4-pin connector, the fan's speed can be precisely and dynamically regulated by the motherboard or a fan controller. This allows the system to automatically modulate the fan's RPM according to real-time thermal loads. The outcome is a system that runs virtually silent during idle periods and seamlessly ramps up to deliver effective cooling when performance is demanded, optimizing both acoustics and thermal capacity.

• Comprehensive Motor Protection: To guarantee a long and reliable operational life, the motor has several layers of protection. Impedance protection ensures that if the fan blades are ever physically obstructed, the motor will not burn out from being stalled. Additionally, reverse polarity protection shields the fan's delicate internal electronics from harm if the wiring is accidentally connected incorrectly, a simple error that could otherwise destroy a less-protected fan.

• System Monitoring and Failsafes: For mission-critical systems where cooling failure is unacceptable, this DC bracket fan comes equipped with monitoring features. A Frequency Generator (FG), or tachometer output, delivers a signal that permits the host system to accurately track the fan's rotational speed. This feedback is essential for verifying that the cooling apparatus is functioning as intended. An optional Rotation Detector (RD) alarm function can dispatch a signal to notify the system if the fan ceases to spin for any reason. Finally, the Auto Restart feature ensures that if the motor stalls and the obstruction is later cleared, it will automatically try to resume spinning, restoring cooling capabilities without any manual intervention.

This 92x23mm 12V Brushless PWM DC bracket fan is more than just a component; it is an integrated thermal management solution. By combining a secure and robust physical architecture with potent airflow, high static pressure, and a suite of intelligent features like PWM control and multi-layered motor protection, it offers the performance and peace of mind required for any serious electronic application.
