An Adaptable Cooling Solution: The High-Output 120mm DC Centrifugal Blower

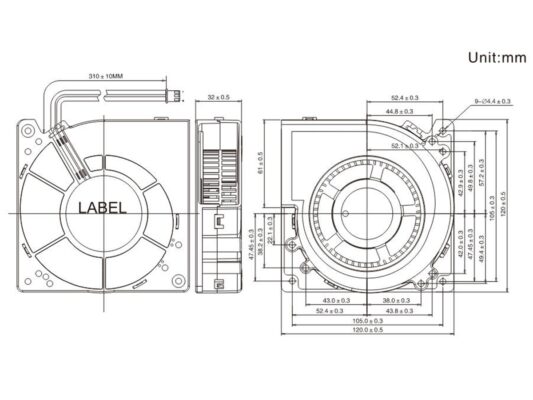

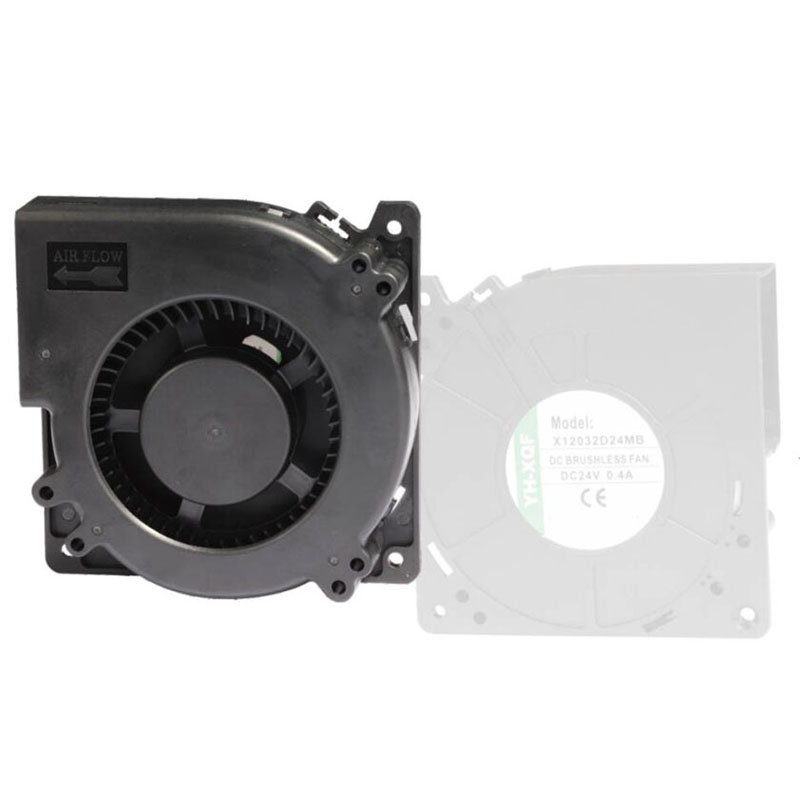

This 120x120x32mm DC blower fan presents a sturdy and adaptable choice for a wide spectrum of ventilation and cooling requirements. Crafted for superior output and dependability, this unit is built to displace air effectively, even within environments of significant impedance. Its compact yet powerful design makes it a prime selection for uses where space is limited, but substantial airflow and pressure are essential.

Exploiting the Centrifugal Advantage

In contrast to axial models that propel air parallel to their rotational axis, centrifugal blowers, also known as squirrel-cage fans, intake air at their core and expel it perpendicularly. This is accomplished through the unit's impeller, which employs centrifugal action to accelerate air radially. This mode of air displacement is exceptionally proficient at generating elevated pressure, making these blowers perfectly suited for ducted systems and for cooling components inside densely populated electronic enclosures. They have a reputation for being durable, quiet, and capable of operating under a broad range of conditions.

Construction and Resilience

The blower's housing and impeller are fabricated from a durable thermoplastic compound that conforms to the UL 94V-0 flammability standard. This rating signifies a high degree of fire resistance, as the material is engineered to cease burning within ten seconds after a flame source is taken away and produces no flaming particles. This makes it a safe and dependable selection for use in electronic equipment and other situations where fire prevention is a primary concern.

To accommodate different performance and longevity needs, this blower is offered with two primary bearing configurations: ball bearings, or a hybrid of ball and sleeve bearings. Ball bearings are known for their extended operational life, resilience, and suitability for high-speed use and various mounting orientations. They achieve this via rolling friction between steel balls, which minimizes contact area and the friction coefficient. Sleeve bearings, which are typically quieter at first and more cost-effective, are also an option, providing a flexible choice based on an application's specific needs for acoustics and budget.

Output and Customization

This DC blower is available in several DC voltage configurations, including 12V, 24V, and 48V, which allows for seamless integration into various electrical frameworks. The availability of multiple models with distinct rated currents and power inputs lets users choose a fan that precisely aligns with their power consumption and output requirements.

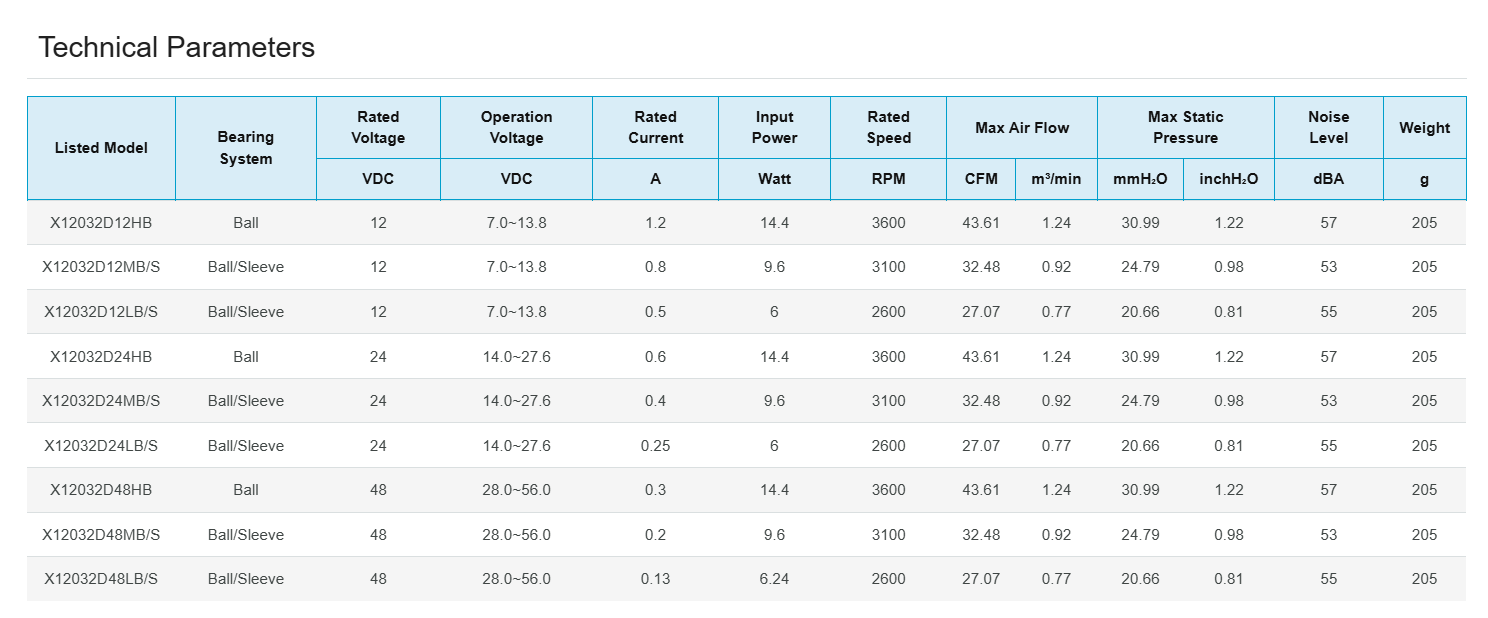

The blower's performance can be further customized with multiple rated speeds. The provided information shows options for 3600, 3100, and 2600 RPM. This variance in speed has a direct impact on the fan's peak airflow and static pressure ratings. For instance, at its highest rated speed of 3600 RPM, the unit is capable of delivering a peak airflow of 43.61 CFM and a peak static pressure of 30.99 mmH₂O.

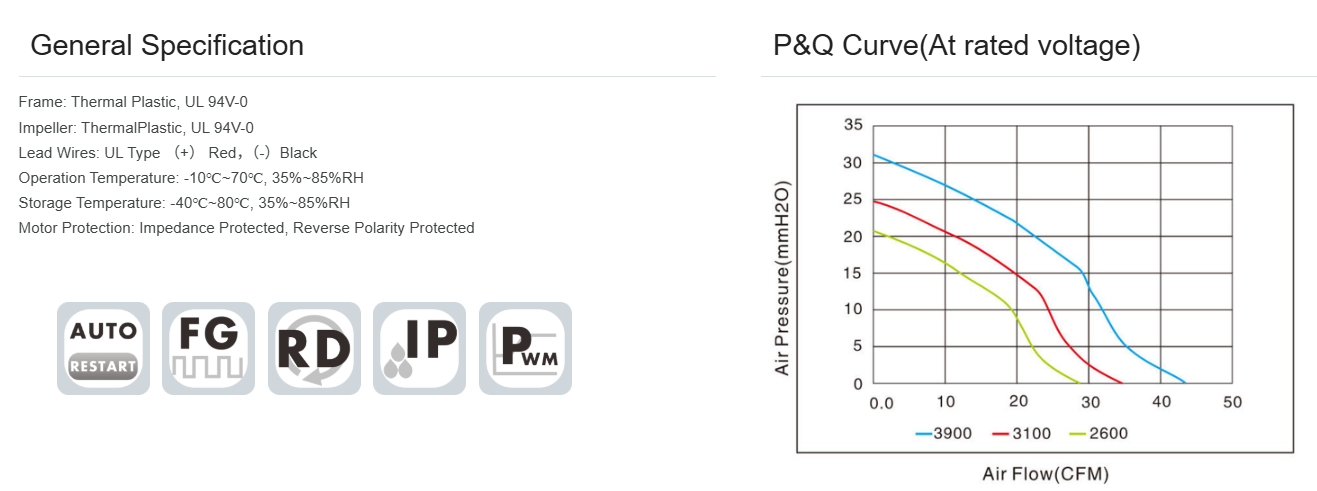

The relationship between airflow and static pressure is clearly illustrated by the P&Q (Pressure and Quantity) curve. This graph shows that as the airflow (CFM) goes up, the static pressure (mmH₂O) that the fan can overcome decreases. The three separate curves on the graph correspond to the three different rated speeds (3900, 3100, and 2600 RPM), offering a clear visual guide to the blower's operational range under varying conditions. This enables engineers and designers to accurately predict the fan's behavior within their particular system and select the most suitable operating point.

Sophisticated Motor Safeguards

To ensure long-term reliability and protect against frequent electrical faults, the blower's brushless DC motor includes both impedance protection and reverse polarity protection. Impedance protection is a vital safety measure that stops the motor from overheating and burning out should the rotor become locked while power is applied. It works by increasing the motor windings' impedance to restrict current and keep the temperature from rising above a safe threshold.

Reverse polarity protection safeguards the blower's sensitive internal circuitry from harm if the power source is accidentally connected with reversed polarity. Because brushless DC motors contain internal controller circuits, reversing the electrical connections without this safeguard could cause permanent failure. This feature guarantees the fan will remain operational even after such an error, which boosts its robustness in practical applications.

Applications

The union of high pressure, sturdy construction, and adaptable performance makes this 120mm DC blower appropriate for a diverse range of uses across many industries. Its capacity to effectively cool components in confined spaces makes it a superb choice for:

• Electronics and IT: Cooling servers, networking hardware, and telecommunications systems where dependable thermal management is paramount.

• Industrial Automation: Ventilating control cabinets and cooling motor drives and power supplies.

• Medical Equipment: Supplying quiet and reliable cooling for numerous medical instruments.

• HVAC Systems: Employed in smaller-scale heating, ventilation, and air conditioning systems for air circulation.

• And many more: Any application that demands focused and potent airflow within a compact form factor.

With its comprehensive feature set and flexible performance capabilities, this 120x120x32mm DC blower fan is distinguished as a dependable and potent solution for demanding thermal management problems.
