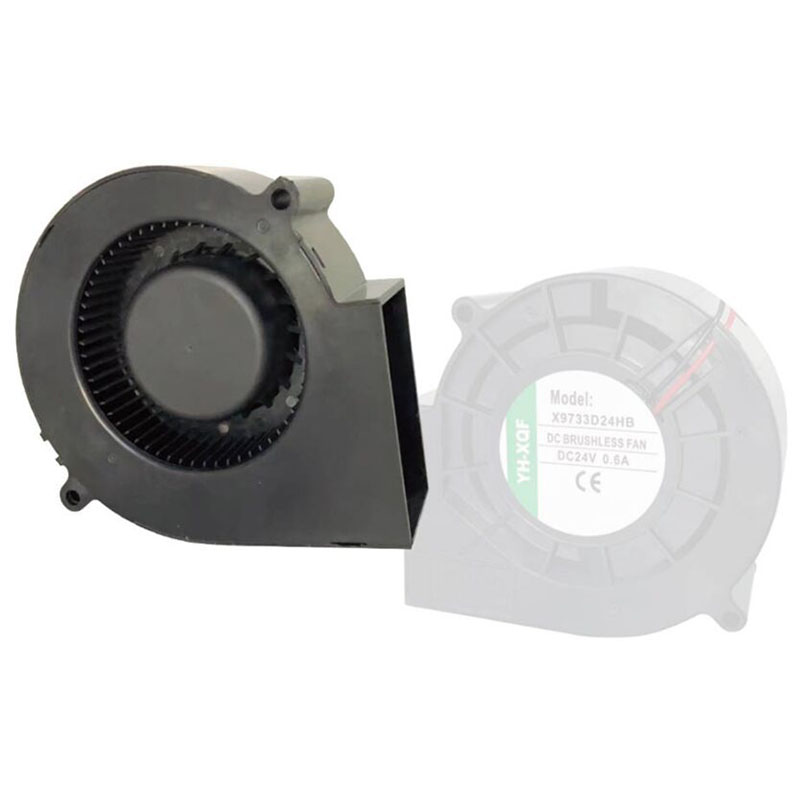

Unleashing Advanced Cooling: An Overview of the 97x33mm 24V Brushless DC Blower with PWM Functionality

In the realm of high-performance machinery and modern electronics, proper heat regulation is not merely a recommendation—it is an absolute necessity. As components grow more potent and compact, the heat they produce can impair functionality, shorten longevity, and result in catastrophic system breakdowns.

Tackling this issue requires a cooling solution that is potent, intelligent, dependable, and versatile. This 97x33mm Brushless DC Blower is built to meet and surpass these requirements, delivering a top-tier cooling solution for a wide spectrum of demanding uses. Functioning with a standard 24V DC input and equipped with advanced Pulse Width Modulation (PWM) control, this blower unit embodies the pinnacle of efficient and manageable airflow engineering.

Engineered for Strength and Accuracy

At this blower's heart is a sophisticated brushless DC motor, a technology celebrated for its effectiveness, longevity, and quiet functioning when compared to its brushed counterparts. By doing away with physical brushes, the design curtails friction and degradation, significantly extending its service life and lessening the need for maintenance. This inherent efficiency means more electrical power is converted into rotational force, generating powerful airflow with lower energy use.

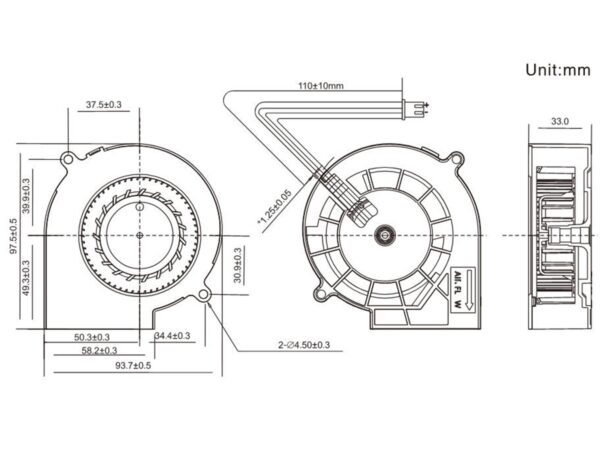

The blower's dimensions of 97.5 mm x 93.7 mm, with a 33mm depth, make it a compact yet potent cooling instrument. This particular form is typical of a centrifugal "blower" style fan. Instead of moving air axially, a blower intakes air centrally and expels it at a right angle through a concentrated outlet.

This configuration is exceptionally effective for generating high static pressure, making it the perfect choice for situations with restricted airflow, such as in densely packed server racks, complex enclosures, or systems where air must be forced through ductwork and heatsinks. This blower can produce a peak static pressure of 26.7 mmH2O, which allows it to overcome significant opposition and provide consistent cooling within the most challenging environments.

Smart Speed Management with PWM

One of this blower's most notable attributes is its 4-wire configuration that incorporates Pulse Width Modulation (PWM) control. This advanced capability permits dynamic, real-time management of the blower's speed. By transmitting a PWM signal to the fourth wire, a system's mainboard or a specialized fan controller can precisely modulate the fan's rotational speed (RPM). This functionality goes far beyond the simple on/off or high/low options of less advanced fans.

The benefits of PWM management are substantial:

• Noise Management: The blower can be programmed to run at slower speeds during times of low thermal demand, greatly reducing sound levels. With a maximum acoustic rating of 48 dBA at full velocity, the ability to slow the unit down is vital for creating more quiet work or living spaces.

• Power Conservation: By operating the blower only as fast as is necessary, overall energy consumption is markedly reduced. This is not only economical but also critical for battery-operated devices or systems with constrained power budgets.

• Extended Component Lifespan: Maintaining ideal operating temperatures for delicate electronics helps to prevent premature wear and failure. PWM control lets a system respond swiftly to temperature increases, applying maximum cooling force only when required and thus preserving the fan's own longevity.

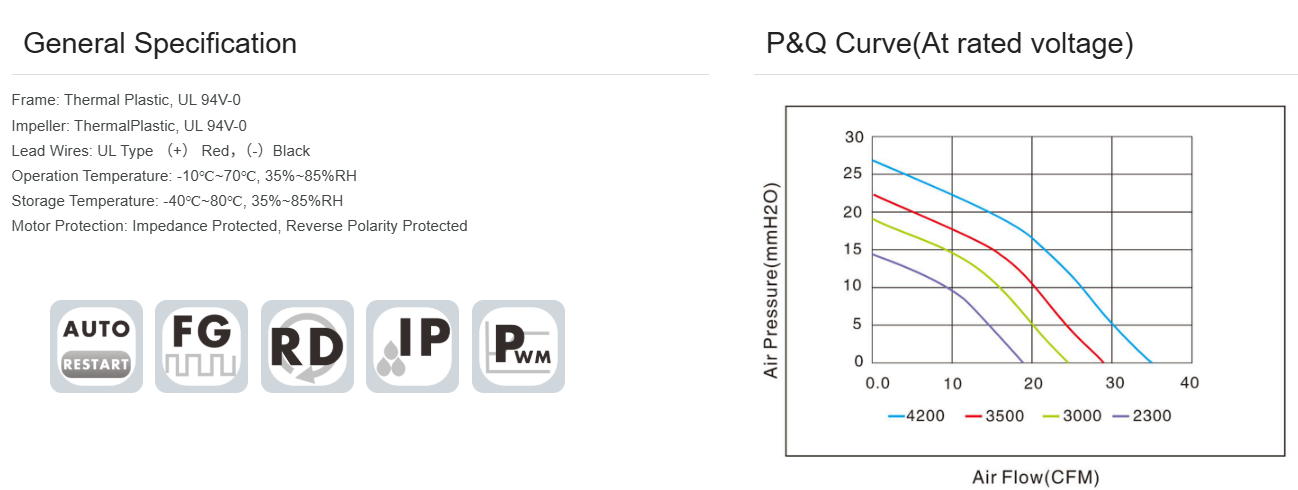

The included P&Q (Pressure-Airflow) graph clearly demonstrates this adaptability. It displays separate performance curves for different speeds, ranging from a maximum of 4200 RPM down to 2300 RPM. At its fastest setting, the blower provides an impressive peak airflow of 34.8 cubic feet per minute (CFM), excellent for rapidly dissipating large amounts of thermal energy. When the system is idle or under a light load, the speed can be lowered, which reduces airflow, pressure, and noise levels accordingly, fostering a truly intelligent and adaptive thermal management system.

Built for Durability and Dependability

Reliability is essential for any cooling component, and this fan is constructed to endure. It employs a premium dual ball bearing system, which provides multiple advantages compared to traditional sleeve bearings. Ball bearings generate less friction, can operate at elevated temperatures, and possess a substantially greater operational lifespan, which ensures consistent output over years of continuous use. This makes the fan an outstanding investment for mission-critical systems where failure is simply not an option.

The blower's frame and impeller are constructed from a sturdy thermoplastic substance that carries a UL 94V-0 rating. This is an important safety standard that indicates the material is self-extinguishing and will not sustain a flame, a crucial characteristic for any part used inside electronic equipment.

Furthermore, the motor contains built-in protective mechanisms, including impedance protection to avert damage from overheating if the blower blades become obstructed, and reverse polarity protection to shield the electronics from accidental incorrect wiring during installation. The fan is built to function accurately across a broad thermal range, from -10°C to 70°C, and in humidity from 35% to 85% RH, ensuring stable output in varied environmental settings.

Versatile Uses

The fusion of high static pressure, efficient airflow, compact size, and intelligent PWM control makes this 97x33mm blower fan extremely versatile. It is the perfect cooling device for a broad array of industries and uses, including:

• Information Technology & Networking: Cooling rack-mounted servers, network switches, and data storage hardware with high component density.

• Additive Manufacturing (3D Printing): Providing essential part cooling to guarantee sharp details and prevent warping in 3D prints.

• Industrial Automation: Removing heat from motor controllers, power supplies, and PLCs within enclosed control panels.

• Medical Instruments: Ensuring the integrity of diagnostic and monitoring equipment that houses sensitive electronics.

• LED Illumination: Cooling high-wattage LED drivers and modules to preserve brightness and extend service life.

• Custom Electronics Projects: Upgrading the cooling in bespoke computer builds, home servers, or any project needing focused, powerful airflow.

In summary, this 24V Brushless DC Blower Fan is a superior thermal management device that presents an unparalleled combination of strength, accuracy, and durability. Its high-pressure architecture, efficient brushless motor, robust ball bearing system, and advanced PWM control capabilities offer a dependable and intelligent method for protecting valuable electronic components.

Whether intended for industrial, commercial, or personal use, this blower delivers the performance required to conquer any thermal challenge.
