Harnessing Concentrated Cooling Force: An In-Depth Analysis of the 75x75x30mm Brushless DC Centrifugal Blower

In the landscape of contemporary technology and precision engineering, dependable thermal regulation is not merely an option but a foundational necessity for output, stability, and longevity. As components gain power and shrink in size, the task of effectively shedding heat becomes increasingly critical.

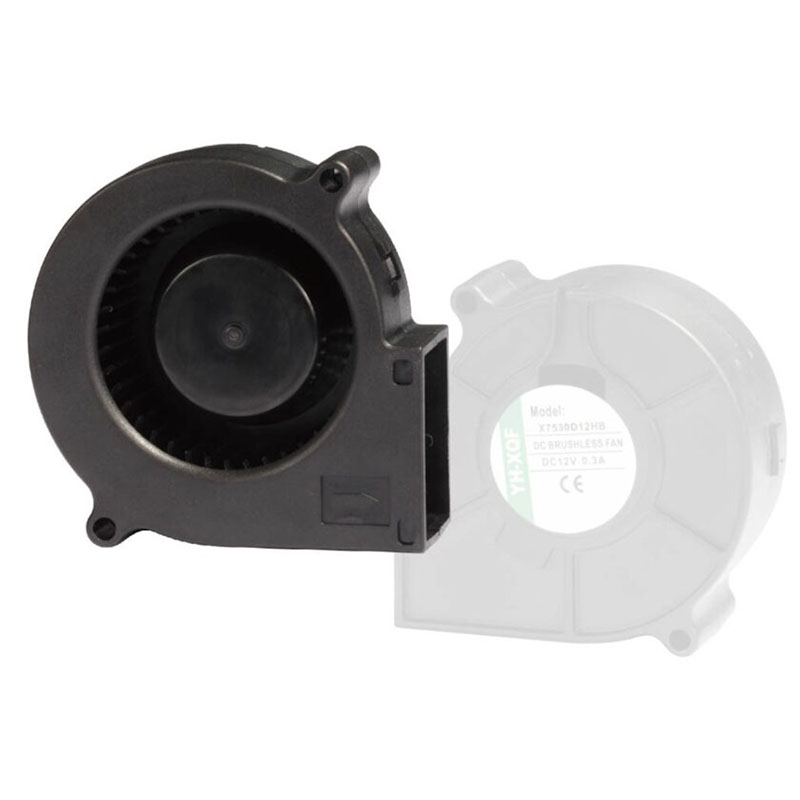

This 75x75x30mm Brushless DC blower is engineered to meet this demand directly, delivering a forceful, focused airflow precisely where it is most needed. Its advanced engineering, durable build, and adaptable performance characteristics make it a crucial part for an extensive array of uses, from sophisticated 3D printers and tightly packed electronics to creative do-it-yourself projects.

The Blower Advantage: High Pressure in Demanding Environments

In contrast to conventional axial fans which displace large volumes of air at low pressure, this unit is a centrifugal "blower" style fan. This configuration draws air through its central intake and propels it outward at a ninety-degree angle via a specially designed exhaust port.

The principal benefit of this arrangement is its capacity to generate significantly higher static pressure. This quality makes it exceptionally effective at overcoming the impedance, or resistance, present in environments with restricted airflow. It can force air through heatsinks with fine fins, ventilate securely sealed enclosures, and traverse the complex internal passages of modern electronics, guaranteeing that cooling effectiveness is not diminished by physical limits.

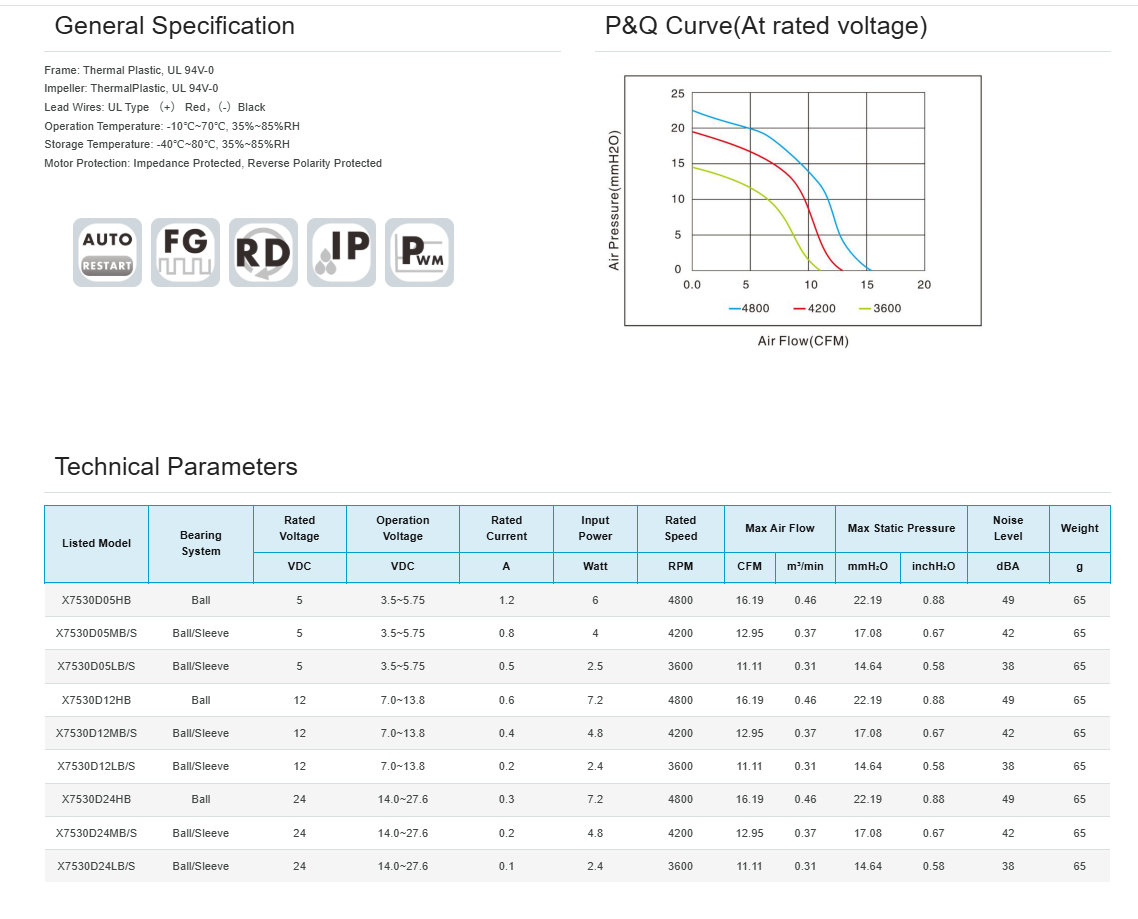

The unit's capabilities are plainly illustrated in the provided P&Q (Pressure and Airflow) curve. This chart displays the fan's performance across various operational speeds, which are typically offered in 3600, 4200, and 4800 RPM variants. The high-velocity model, for instance, can produce an impressive peak static pressure of 22.19 mmH₂O and simultaneously deliver a maximum air movement of 16.19 CFM (Cubic Feet per Minute).

This degree of output is perfect for mission-critical uses where maximum heat removal is essential. For situations where acoustics are a greater consideration, the slower model provides a quieter function at just 38 dBA while still yielding a substantial 11.11 CFM of airflow and 14.64 mmH₂O of static pressure. This empowers engineers and designers to select the ideal harmony of cooling strength, energy use, and acoustic output for their particular application.

Durable Construction for Unwavering Reliability

Dependability is rooted in superior construction. The frame and impeller of this DC blower are both constructed from a premium-grade thermoplastic material conforming to the UL 94V-0 flammability standard. This is a vital safety certification, indicating the material will self-extinguish and not propagate a flame during a fire, making it a secure choice for integration into consumer and industrial products.

At the center of the blower's rotating mechanism is its bearing assembly, a critical determinant of its lifespan and performance characteristics. This fan is offered with multiple bearing types to address different needs. The premium dual ball bearing configuration provides an outstanding operational lifespan, superior performance at elevated temperatures, and the flexibility to be mounted in any position without impacting its durability.

This makes it the superior choice for continuous 24/7 operation and for use in harsh conditions. For less strenuous or more budget-conscious uses, a sleeve bearing model offers quieter function at lower speeds. This adaptability guarantees that you can choose the correct fan for the task without making a compromise.

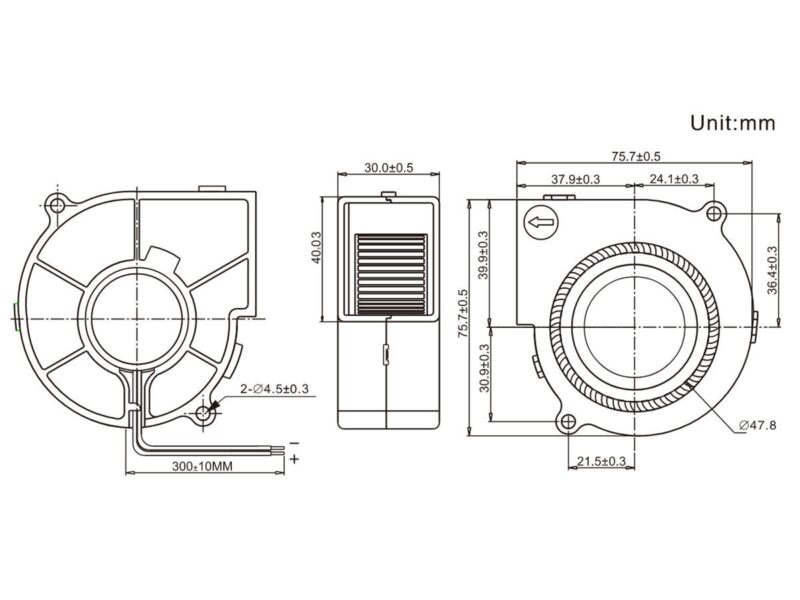

Despite its forceful output, the blower maintains a minimal weight, registering at only 65 grams. Its compact size, meticulously specified in the mechanical diagrams at 75.7 x 75.7 mm with a 30 mm depth, permits straightforward integration into designs with limited space. The strategically positioned mounting holes guarantee a stable fit, while the 300mm lead wires provide ample length for connection to a power supply or controller.

Versatile Electrical Engineering and Onboard Safeguards

This DC blower is engineered for wide-ranging compatibility and is available in various rated voltages, including 5V, 12V, and 24V DC. This allows it to be powered by diverse sources, from a basic USB connection to the standard power supplies in computers, servers, and industrial machinery. Furthermore, every model has a broad operational voltage range. For example, the 12V model can function reliably between 7.0 V and 13.8 V, providing consistent output even with slight power source fluctuations.

To safeguard both the blower and its host device, the motor contains vital protective circuits. A reverse polarity safeguard prevents harm if the positive and negative connections are accidentally reversed during installation—a simple mistake that could otherwise destroy the fan's electronics.

Moreover, impedance protection guarantees the motor will not burn out if its impeller becomes stalled or blocked from spinning, whether due to a foreign object or a system malfunction. Many versions also feature an auto-restart function, which will attempt to automatically restart the fan after an obstruction is removed, enhancing the system's overall reliability without needing manual intervention.

For applications that demand intelligent heat regulation, this fan can be outfitted with advanced control and monitoring capabilities. PWM (Pulse Width Modulation) speed control permits a mainboard or microcontroller to dynamically vary the fan's RPM in real-time according to temperature sensor readings. This creates a smart cooling system that operates aggressively when needed and then slows to a nearly silent state when the system is idle, optimizing for both cooling and acoustics.

Optional FG (Frequency Generator) and RD (Rotation Detection) signal outputs are also offered, which provide crucial feedback to the host system. The FG signal communicates the fan's actual rotational speed, while the RD signal sends a simple alarm if the fan blades have stalled, enabling the system to detect a cooling system failure and initiate an appropriate response.

Limitless Possibilities for Application

The unique fusion of high static pressure, a compact form, and durable engineering makes this 75mm DC blower an adaptable solution for numerous uses, including:

• Additive Manufacturing (3D Printing): An essential upgrade for part cooling, providing a focused stream of air to instantly solidify extruded filament, which leads to cleaner prints, finer details, and superior performance on overhangs and bridges.

• Electronics and Enclosure Ventilation: Perfect for ventilating server hardware, networking gear, home theater PC (HTPC) cases, and other densely packed electronic cabinets where airflow is constrained.

• Spot Cooling: Ideal for directing air onto specific high-temperature parts like CPUs, GPUs, FPGAs, stepper motor drivers, and power regulators.

• DIY Endeavors: A favorite among makers for creating custom cooling solutions for Raspberry Pi clusters, robotics, bespoke computer builds, and more.

• Commercial and Industrial Machinery: Suited for use in a variety of equipment that requires active cooling, such as LED lighting fixtures, medical instrumentation, and air purification devices.

In summary, this 75x75x30mm DC centrifugal blower is more than a simple component; it represents a comprehensive cooling system. By integrating the high-pressure output of a centrifugal design with resilient, safety-certified materials and a suite of flexible electrical options and protections, it delivers the power and dependability necessary to keep your most critical projects operating coolly and securely.
