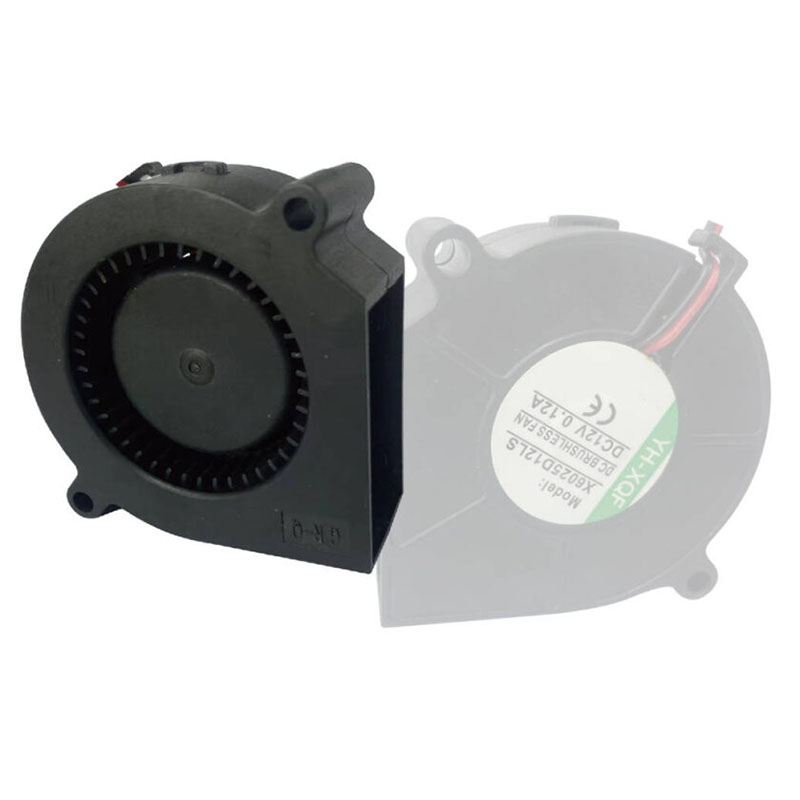

A Premier Compact Cooling Device: The High-Output 12V DC Blower Fan

In the domain of modern electronics and small-scale machinery, dependable thermal regulation is not merely a suggestion; it is a fundamental prerequisite. We present a potent and adaptable 60x25mm DC blower fan, meticulously engineered to provide exceptional cooling output in the most strenuous and space-limited environments.

Operating on a standard 12V DC input, this unit is built to deliver high static pressure along with a focused, high-velocity airflow, establishing it as the ideal choice for situations where conventional axial fans are insufficient. Its sturdy build, sophisticated motor safeguards, and multiple performance tiers guarantee reliability and flexibility for a vast spectrum of cooling problems.

The Centrifugal Advantage: Strength and Precision

Unlike traditional axial fans which displace air along the fan's axis, this blower unit intakes air through its central opening and discharges it perpendicularly through a rectangular exhaust. This centrifugal configuration is naturally more effective for generating high static pressure. Static pressure refers to a fan's capability to overcome resistance, such as that created by fine-finned heatsinks, elaborate ducting, air filtration media, or densely packed electronic parts.

This blower fan excels at surmounting this system impedance, making sure that a consistent volume of cool air reaches vital components even within enclosures with constrained airflow channels. The concentrated, jet-like discharge facilitates precision cooling, directing airflow exactly where it is most needed, for instance, onto a specific microprocessor, a 3D printer's extrusion nozzle, or through the fins of a compact heat exchanger.

Engineered for Longevity and Dependability

This 60mm DC blower is built for longevity, beginning with its housing and impeller, which are fabricated from a premium-grade thermoplastic that adheres to the UL 94V-0 fire-resistance standard. This classification denotes a high degree of safety, making the fan a suitable and ideal component for use within both industrial and consumer electronics.

To address diverse application needs for lifespan, acoustics, and cost, this fan is offered with two primary bearing configurations:

• Dual Ball Bearing: This premium configuration delivers the highest degree of durability and extended life. Ball bearings are perfectly suited for high-temperature settings and strenuous, continuous-duty applications. They exhibit minimal friction, which allows for consistently high rotational speeds and a service duration that can reach 50,000 hours or more. Blowers equipped with dual ball bearings can be installed in any position (horizontal, vertical, or angled) without affecting their performance or longevity, making them perfect for mission-critical hardware like servers, network gear, and industrial machinery.

• Ball/Sleeve Bearing: This hybrid configuration presents a well-rounded solution, combining a ball bearing with a sleeve bearing to offer improved performance over a standard sleeve bearing while retaining a lower cost and a quieter acoustic signature than a dual ball bearing setup. It represents an excellent compromise for applications where noise is a consideration, but more reliability than a basic sleeve bearing is desired.

The blower's motor is intelligently safeguarded against common installation mistakes and operational risks. Onboard reverse polarity protection guards the fan's electronics from damage if the power wires are accidentally connected incorrectly. Furthermore, impedance protection stops the motor from overheating and burning out in the event that the impeller becomes stalled or blocked. When combined with an auto-restart function that automatically attempts to reactivate the fan once an obstruction is cleared, these features result in a resilient and self-recovering cooling unit.

Customized Performance: Speed, Airflow, and Control

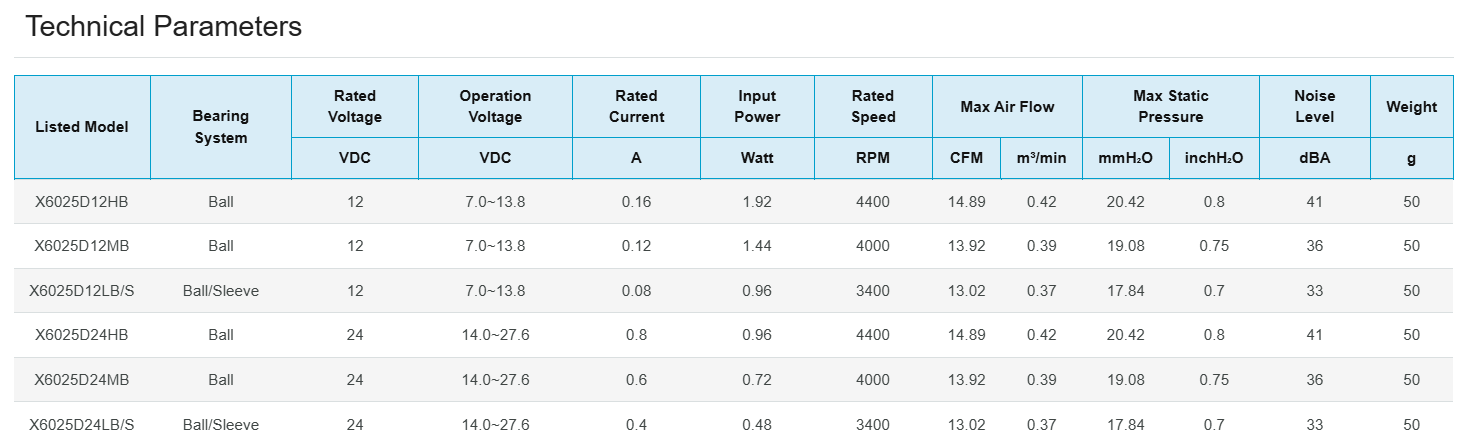

Recognizing that no two cooling needs are identical, this 12V DC blower is offered in several performance tiers, each distinguished by its rotational speed. The technical data outlines models operating at 4400, 4000, and 3400 RPM.

• High-Velocity (4400 RPM) Model: This variant leads in performance, yielding a peak airflow of approximately 14.89 CFM and an impressive maximum static pressure of 20.42 mmH₂O. It is the ideal selection for cooling high-power parts or forcing air through highly restrictive systems, with a corresponding acoustic level of 41 dBA.

• Mid-Tier (4000 RPM) Model: Providing a solid balance of output and acoustics, this version generates up to 13.92 CFM of airflow and 19.08 mmH₂O of static pressure at a more moderate noise level.

• Low-Velocity (3400 RPM) Model: This option is optimized for quieter function. It delivers a still-effective 13.02 CFM of airflow and 17.84 mmH₂O of static pressure, making it excellent for office settings, home media hardware, and other uses where low noise is a primary concern.

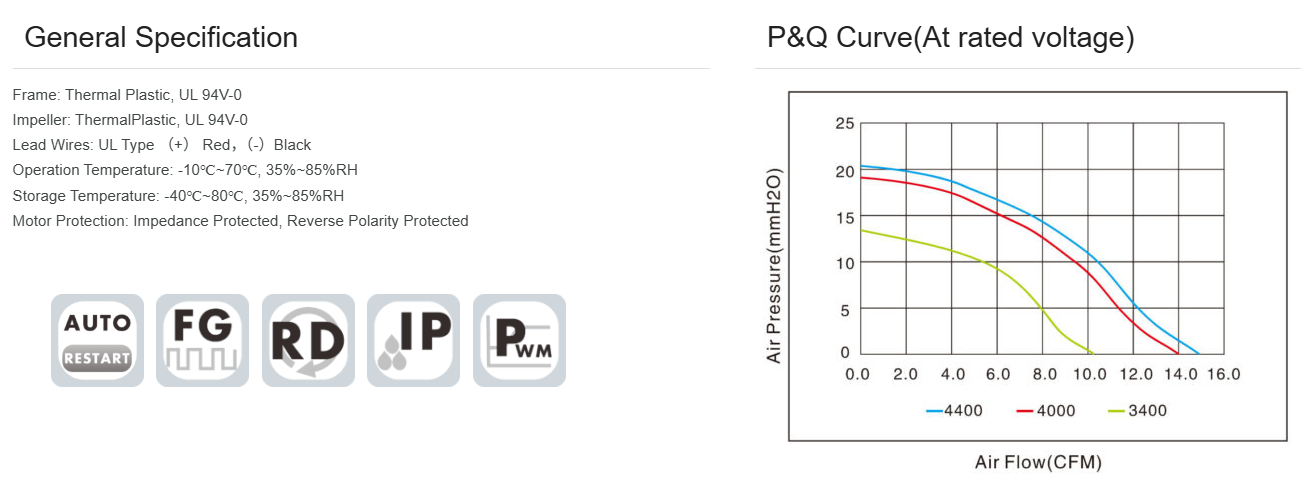

The provided P&Q (Pressure vs. Quantity) curve visualizes this performance, allowing engineers to precisely align the fan with their system's unique airflow opposition. The blower also has a wide operational voltage range of 7.0 V to 13.8 V DC, which provides flexibility for power supply variations and allows for basic speed adjustment through voltage changes.

For more sophisticated uses, options for PWM (Pulse Width Modulation) speed control and FG (Tachometer) output for speed monitoring may be offered, enabling dynamic, temperature-based fan control and system health assessment.

Adaptable Applications

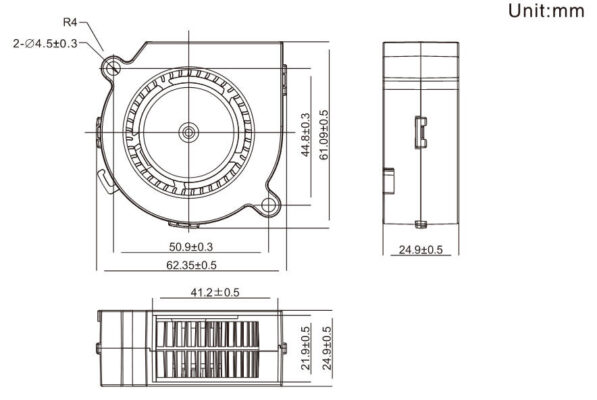

With its compact 60 x 62.35 x 24.9 mm housing and a minimal weight of only 50 grams, this DC blower fan is perfectly suited for a wide range of uses, including:

• Additive Manufacturing (3D Printing): Indispensable for part cooling, where a focused, high-velocity stream of air solidifies extruded material for fine details and clean overhangs.

• Small Form Factor (SFF) Computers & Servers: Ideal for exhausting hot air from confined cases with minimal airflow channels.

• Networking and Storage: Cooling routers, switches, and Network-Attached Storage (NAS) units that operate around the clock.

• Embedded Systems & Project Enclosures: Ventilating custom electronics, single-board computers, and various control cabinets.

• Specialized Equipment: Use in humidifiers, air purifiers, medical instruments, LED lighting fixtures, and other machinery that requires active, directional cooling.

In essence, this 12V DC blower fan is more than a simple component; it is a comprehensive cooling device, providing the strength, precision, and dependability needed to guarantee the longevity and peak performance of your electronic systems.
