The Premier Cooling Solution: A High-Output 50mm Brushless DC Centrifugal Fan

In the ever-advancing landscape of modern technology, dependable thermal regulation is no longer a luxury—it has become a fundamental necessity. As electronic components grow more powerful and device sizes continue to shrink, dissipating heat effectively is crucial for ensuring performance, stability, and longevity.

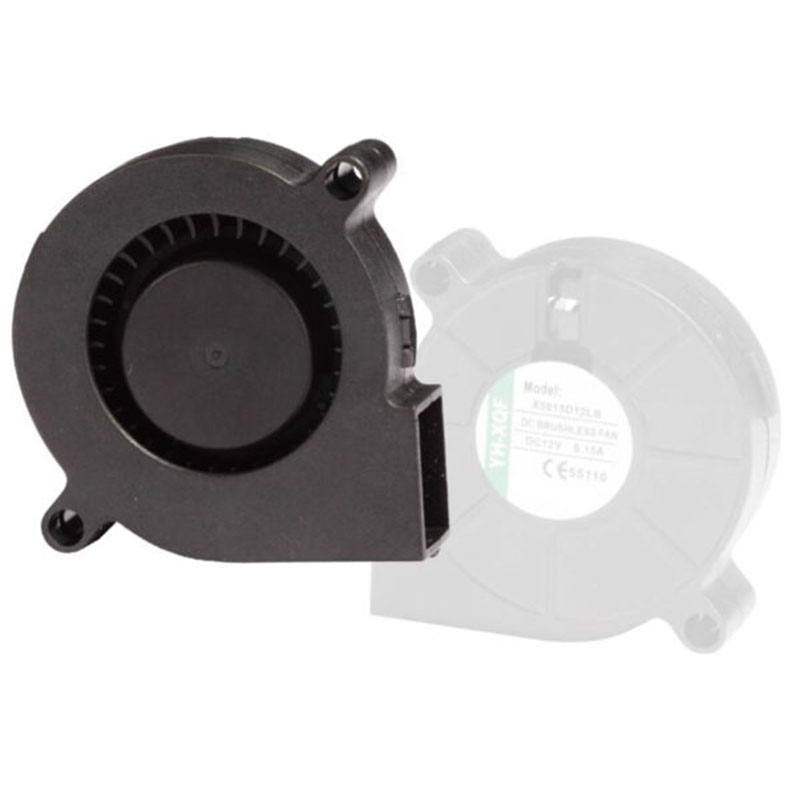

This 50mm Brushless DC Blower Fan is built to address these tough challenges directly, delivering a potent, focused airflow in a remarkably compact and adaptable package. Designed for a wide range of uses, from cutting-edge 3D printers and miniature computing systems to sophisticated networking hardware, this blower represents the pinnacle of cooling technology, providing a perfect fusion of power, precision, and resilience.

Engineered for Superiority: Construction and Design

The basis of this blower's outstanding performance is its sturdy construction and exact engineering. The frame and impeller are both fabricated from high-grade thermoplastic material that complies with the UL 94V-0 flammability standard. This certification attests to the material's self-extinguishing characteristics, offering a crucial layer of safety and fire protection in any electronic assembly. This ensures the fan not only executes its cooling function flawlessly but also enhances the overall security and compliance of the host device.

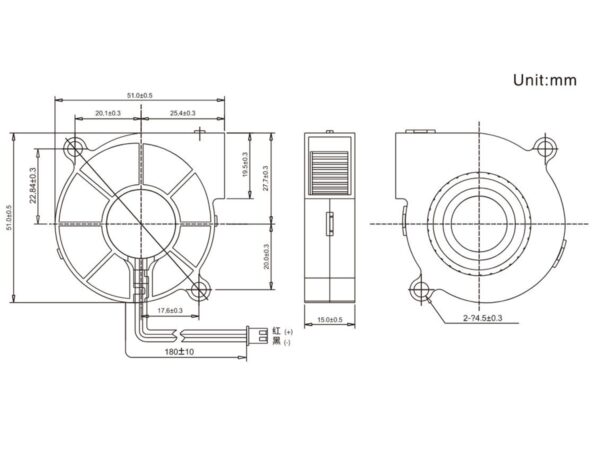

With dimensions of approximately 51mm x 51mm and a slender profile of only 15mm, this fan is designed for integration into space-limited environments where conventional axial fans would not fit or be effective. Its blower-style, centrifugal configuration intakes air from the top and expels it at a concentrated, ninety-degree angle.

This creates a high-pressure stream of air that is ideal for forcing through dense heatsinks, component-congested PCBs, or out of narrow exhaust ports. Despite its powerful output, the fan remains exceptionally lightweight, at a mere 25 grams, which reduces mechanical stress on mounting points and is ideal for applications where weight is a critical consideration.

Unmatched Performance and Versatility

Understanding that no two uses are identical, this DC blower is offered in a comprehensive range of configurations to precisely match your specific needs.

• Voltage and Bearing Choices: The fan is available in three standard DC voltage options: 5V, 12V, and 24V. This wide selection ensures seamless compatibility with the power systems of most electronic devices, from USB-powered gadgets to industrial control systems.

  Further customization is offered with a choice of bearing systems. The full ball bearing option provides outstanding longevity and a broader operating temperature range, making it the perfect choice for high-reliability, long-life applications. For uses where acoustics are a primary concern, the Ball/Sleeve hybrid bearing offers a quieter operational profile while still providing dependable performance.

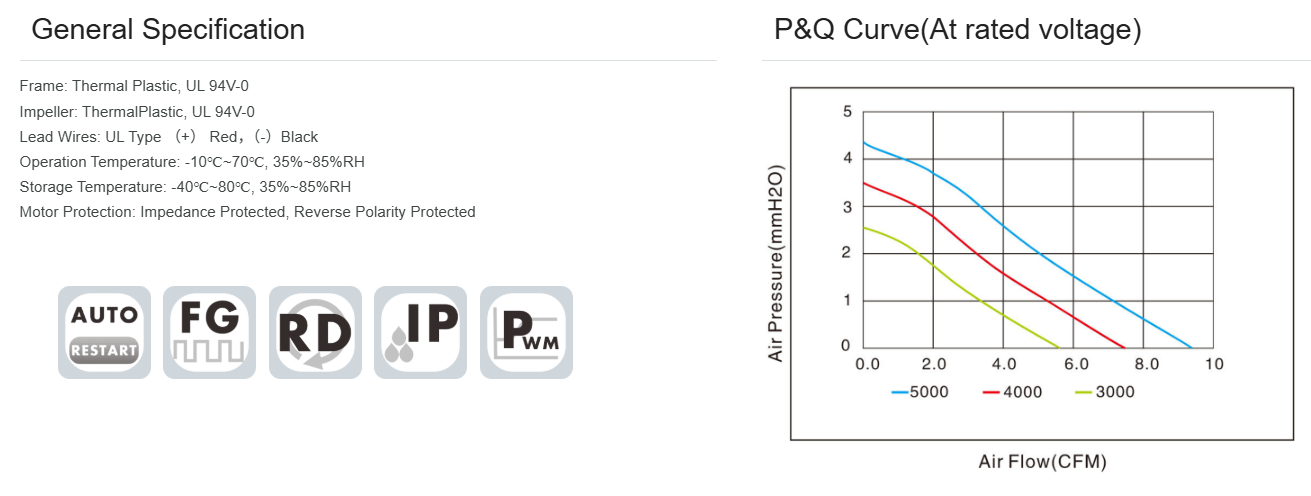

• Airflow, Pressure, and Speed: The true measure of a blower is its capacity to generate both substantial airflow and high static pressure, and this model excels in both areas. The performance characteristics are clearly depicted in the P&Q (Pressure vs. Airflow) curve, which shows the fan's output across its operational range.

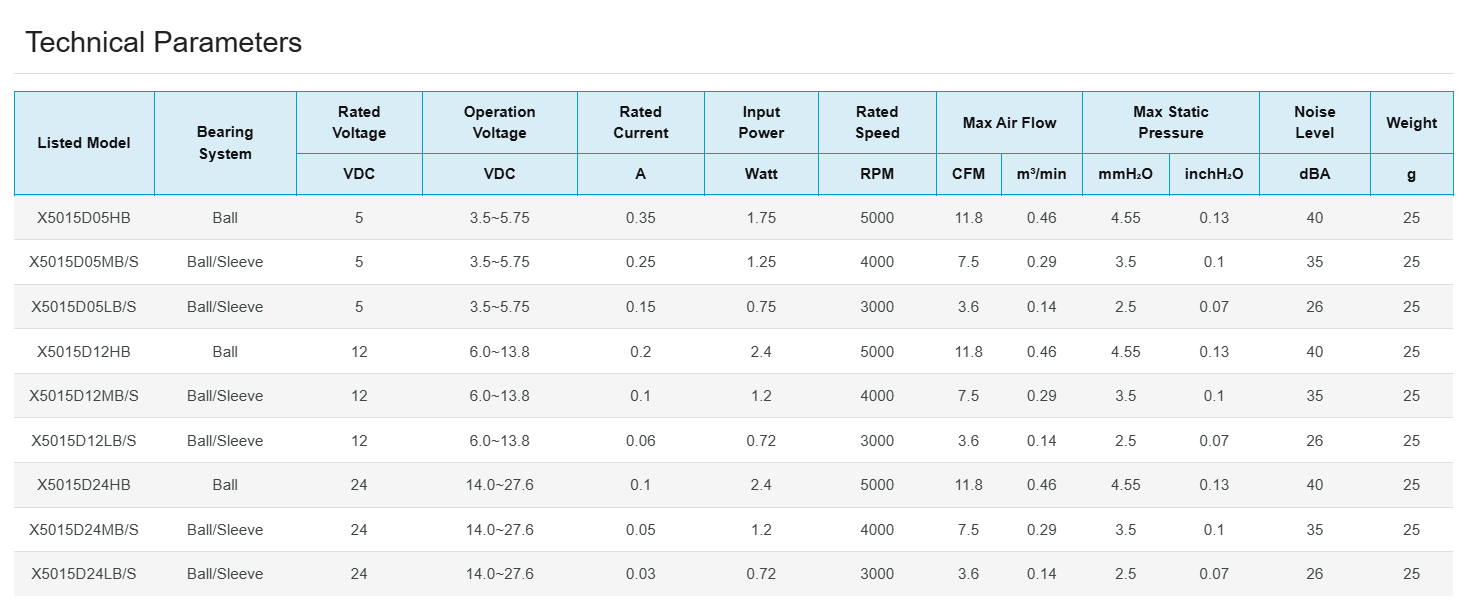

  Depending on the specific model chosen, the fan can achieve:

• Rated Speeds: Ranging from a quiet 3000 RPM to a powerful 5000 RPM.

• Maximum Airflow: Up to 11.8 CFM (Cubic Feet per Minute), delivering significant air movement to cool heat-generating components rapidly.

• Maximum Static Pressure: Reaching up to 4.65 mmH₂O, this fan demonstrates its remarkable ability to overcome resistance, making it ideal for forcing air through restrictive pathways.

This balance of airflow and pressure ensures that even the most densely packed electronics receive the cooling they require to operate at peak efficiency. The noise levels are equally impressive, ranging from a whisper-quiet 25 dBA for the lower-speed models to a moderate 40 dBA for the highest-performing version. This allows designers to select a fan that meets their cooling demands without compromising the acoustic comfort of the end-user.

Advanced Features for Enhanced Reliability

Beyond its core performance metrics, this DC blower is equipped with a suite of advanced protection and control features that ensure stable, long-term operation.

• Robust Motor Protection: Every fan is impedance protected, which stops the motor from burning out in case of a rotor lock or stall. Additionally, it includes reverse polarity protection, a crucial safety feature that prevents permanent damage if the power leads are accidentally connected incorrectly during installation.

• Wide Operating Range: The fan is designed to operate reliably across a variety of conditions. It boasts an operating temperature range of -10°C to +70°C and can be safely stored in temperatures from -40°C to +90°C. The specified operating voltage range (e.g., 6.0 V to 13.8 V for a 12V model) ensures consistent performance even when the input voltage fluctuates.

• Optional Smart Features: For advanced system integration, the fan can be configured with a variety of smart features:

• Auto-Restart: If the impeller is physically obstructed, the fan's circuitry will automatically cut power to the motor and periodically attempt to restart, preventing damage and ensuring it returns to operation once the obstruction is cleared.

• FG (Frequency Generator): This option provides a tachometer output signal proportional to the fan's speed. It allows the host system to monitor the fan's RPM in real-time, enabling proactive thermal management and fault detection.

• RD (Rotation Detector): The RD feature serves as an alarm. It sends a high or low signal if the fan's blades stop rotating, promptly alerting the system to a fan failure so that corrective action can be taken.

• PWM (Pulse Width Modulation): For the ultimate in speed control, the PWM function allows the fan's speed to be precisely managed through a digital signal. This enables the system to dynamically adjust cooling based on real-time thermal loads, optimizing cooling performance while minimizing power consumption and noise.

Ideal Applications

The unique combination of a compact form factor, high static pressure, and robust features makes this 50mm DC blower the ideal cooling solution for a wide range of applications, including:

• 3D Printers: Perfect for part cooling, where a concentrated, high-velocity stream of air is required to solidify extruded filament rapidly.

• Small Form-Factor (SFF) PCs and Laptops: Efficiently expels hot air from confined chassis and CPU/GPU cooling assemblies.

• Network Switches, Routers, and NAS Devices: Provides dependable cooling for high-performance processors and chipsets in always-on networking equipment.

• Embedded Systems: Keeps single-board computers (SBCs) and other embedded controllers running cool in enclosures with limited ventilation.

• LED Lighting: Dissipates heat from high-intensity LED drivers and modules, preventing color shift and extending lifespan.

• Portable Medical Devices and Projectors: Delivers essential cooling where space and power are at a premium.

In summary, this 50mm Brushless DC blower fan is more than just a component; it is a comprehensive and highly adaptable solution for any thermal management challenge. Its durable construction, superior performance, and advanced feature set provide the reliability and peace of mind needed to design and build the next generation of high-performance electronics.
