The Definitive Thermal Solution: The High-Performance 172mm x 51mm Brushless DC fan

In the realm of high-power electronics and sophisticated industrial systems, effective heat management is the very foundation of reliability, optimal performance, and longevity. As components become more powerful and compact, the challenge of dissipating thermal energy grows increasingly critical. Any lapse in cooling can result in catastrophic system failures, expensive operational downtime, and a significantly shortened product lifespan. Addressing this challenge effectively requires a cooling solution that is not only powerful but also intelligent, durable, and adaptable to a diverse array of demanding environments.

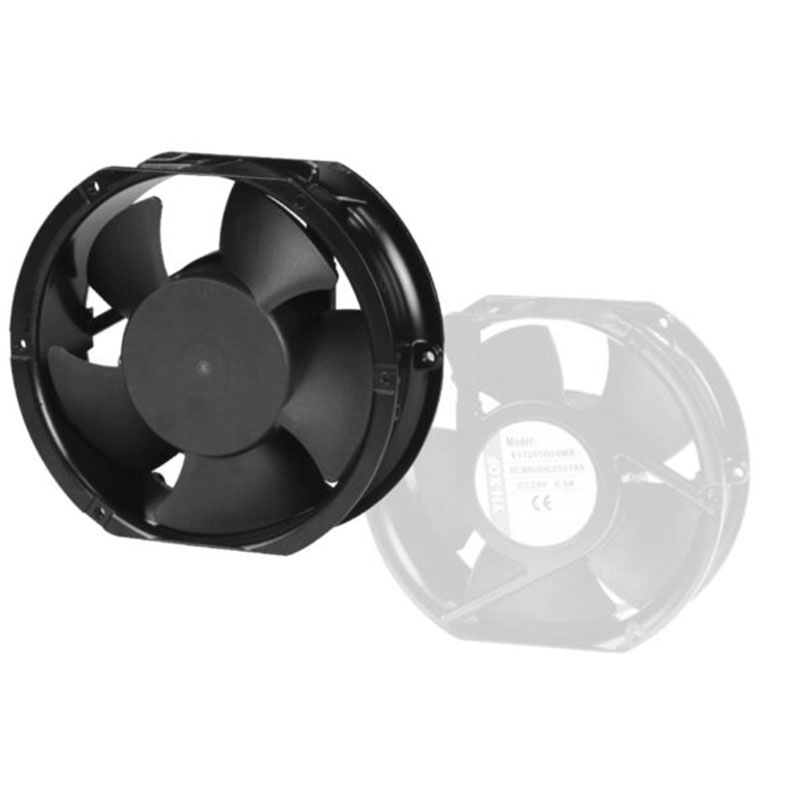

Introducing the 172mm x 51mm brushless DC fan, a formidable cooling apparatus engineered for applications where performance is non-negotiable. This DC fan has been designed from the ground up to move a massive quantity of air with substantial static pressure, establishing it as the premier choice for overcoming the thermal hurdles found in densely packed server systems, industrial control cabinets, telecommunications infrastructure, and high-performance computing. With its robust construction, sophisticated motor technology, and smart functionalities, this DC fan is much more than a simple component; it is an assurance of operational continuity.

Uncompromising Capability: Dominating Airflow and Pressure

The essential duty of any cooling fan is to displace air, and this 172mm DC fan excels at this fundamental task. It is capable of producing a tremendous maximum airflow reaching 372.7 Cubic Feet per Minute (CFM). Such a high volume of air movement is vital for rapidly evacuating hot air from an enclosure or forcing cool, ambient air across critical heat-generating parts like processors, power converters, and amplifiers.

However, raw airflow capacity is not always sufficient on its own. In numerous practical applications, airflow is obstructed by obstacles such as heatsink fins, dust filters, protective grilles, and tightly packed components. This opposition is known as system impedance. To overcome this, a fan must generate adequate static pressure. This DC fan delivers an impressive maximum static pressure of up to 1.79 inchH2O, providing the necessary force to sustain effective airflow even within high-impedance conditions.

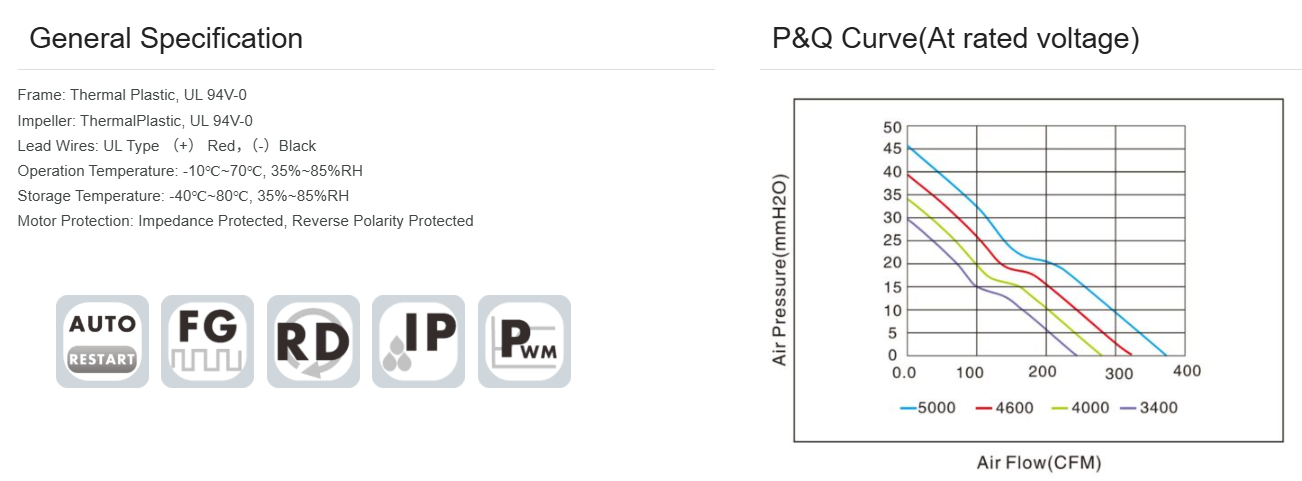

The interplay between airflow and static pressure is clearly depicted in the fan's performance (P&Q) curve. This graph shows that as the opposition (static pressure) within a system rises, the corresponding airflow diminishes. By offering multiple models with rated speeds from a quiet 3400 RPM to a powerful 5000 RPM, this fan family provides a wide spectrum of performance profiles. This enables engineers to select the perfect balance of airflow and pressure to match the specific impedance of their system, guaranteeing optimal cooling without wasting power.

Built for Endurance: Reliability Under the Toughest Conditions

High performance is meaningless if it isn't dependable. This DC fan is constructed for longevity, integrating superior materials and a resilient bearing system to ensure a long and maintenance-free operational life.

• Dual Ball Bearing System: At the center of the fan's rotating mechanism is a high-precision dual ball bearing assembly. When compared to common sleeve bearings, ball bearings offer dramatically greater durability, a much longer lifespan, and a broader operational temperature range. They are less susceptible to degradation from heat and can operate flawlessly in any orientation—vertical, horizontal, or angled—without compromising performance or longevity.

• Durable, Fire-Retardant Construction: Both the fan's frame and its impeller are made from high-quality Thermal Plastic that complies with the UL 94V-0 flammability standard. This is a critical safety certification, indicating that the material will self-extinguish within seconds if exposed to a direct flame and will not contribute to the spread of fire inside an electronic enclosure.

• Wide Temperature Tolerance: This DC fan is designed for reliable operation across a broad range of thermal conditions, with a standard operating temperature of -10°C to +70°C. Its storage temperature range is even more extreme, from -40°C to +70°C, ensuring the fan's integrity is preserved during transport and storage in non-climate-controlled environments.

• Integrated Motor Protection: To protect against common electrical faults and physical obstructions, the fan's motor has multiple layers of safeguards. It is impedance protected, meaning the motor is designed to withstand a stalled or locked-rotor state without burning out. It also includes reverse polarity protection, which prevents permanent damage to the fan's electronics if the power leads are accidentally swapped during installation.

Intelligent Architecture: Advanced Control and Monitoring

Contemporary systems require more than just brute-force cooling; they need smart components that can integrate seamlessly into a broader management system. This DC fan includes several advanced features to meet this need:

• Auto Restart: In the event that a foreign object physically obstructs the fan blades, causing the motor to stall, the Auto Restart function will automatically cut power. Once the obstruction is cleared, the circuitry will detect the change and immediately restart the fan, ensuring that cooling is restored without manual intervention.

• PWM Speed Control: Certain models come equipped with Pulse Width Modulation (PWM) control. This feature allows for dynamic, precise regulation of the fan's speed via a fourth lead wire. A system's motherboard or fan controller can adjust the fan's RPM in real-time based on temperature sensor data. This enables "cooling on demand"—the fan operates at a quiet, low-power speed during idle conditions and ramps up to full power only when necessary, optimizing both acoustic performance and energy efficiency.

• Monitoring and Diagnostics (FG/RD Signals): For mission-critical systems, knowing the fan's status is vital. Models can be outfitted with either a Frequency Generator (FG) or Rotation Detector (RD) signal output. The FG signal (tachometer output) provides a pulse train whose frequency is directly proportional to the fan's speed, letting the system monitor RPM in real-time. The RD signal (alarm output) delivers a simple high/low signal to indicate whether the fan is spinning or locked, enabling the system to trigger an alert for immediate attention.

Versatile Integration and Applications

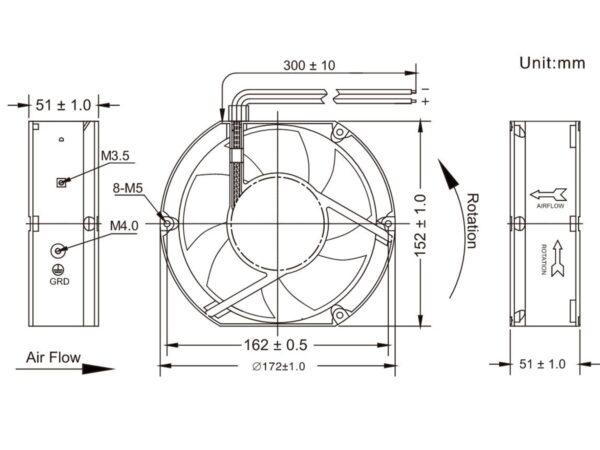

With its standard 172mm x 162mm mounting footprint and a 51mm depth, this fan is an adaptable solution for an extensive range of applications. The availability of models for 12V, 24V, and 48V DC systems facilitates easy integration into a vast array of equipment across numerous industries.

Ideal applications include:

• Data Centers and Networking: Cooling for rack-mounted servers, network switches, and storage arrays where high component density creates immense heat loads.

• Industrial Automation: Ventilation for sealed control cabinets containing PLCs, VFDs, and power supplies, protecting sensitive electronics from harsh factory-floor conditions.

• Telecommunications: Essential cooling for 48V-powered base stations, power rectification systems, and other infrastructure hardware.

• Welding Equipment and Plasma Cutters: Displacing fumes and providing high-pressure cooling for power electronics.

• Renewable Energy: Thermal management for solar power inverters, wind turbine controllers, and battery charging systems.

• Large-Format 3D Printing: Fume extraction and ensuring temperature stability in enclosed build environments.

In conclusion, the 172mm x 51mm brushless DC fan is a masterful synthesis of raw power, industrial-grade durability, and intelligent design. It provides the high airflow and static pressure necessary to conquer the most difficult thermal challenges while delivering the long-term reliability demanded by mission-critical systems. For engineers and designers in search of a comprehensive and powerful cooling solution, this fan represents the pinnacle of thermal management technology.
