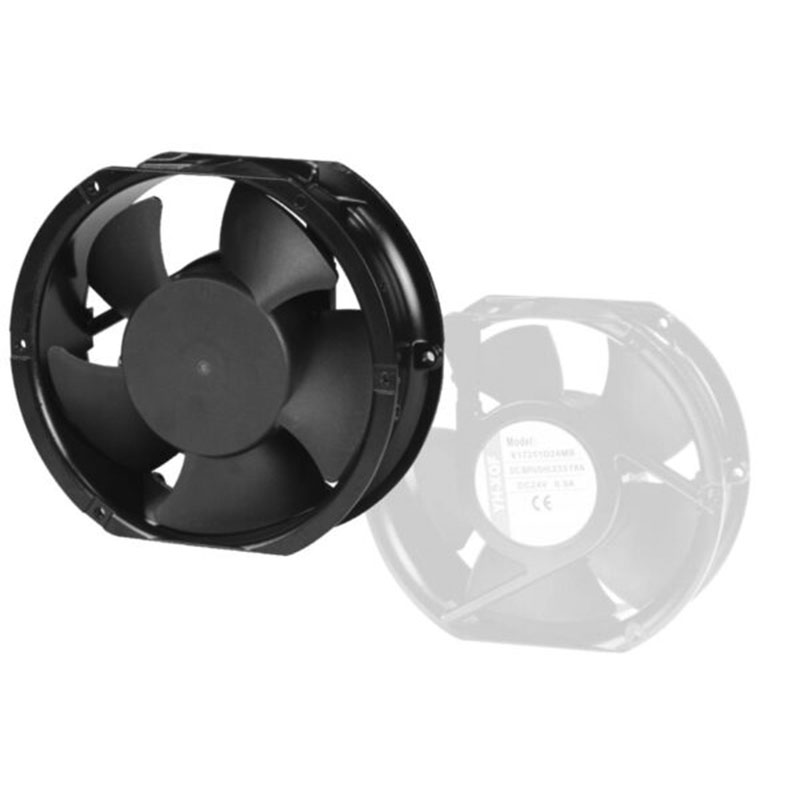

A Comprehensive Cooling Solution: The High-Performance 172mm DC Fan

In the realm of thermal management, where power, reliability, and efficiency are paramount, this 172mm DC fan emerges as a leading solution for a wide array of demanding uses. Precision-engineered and constructed with superior components, this fan provides remarkable airflow, resilient performance, and a very long operational life. Its adaptable architecture, with 12V, 24V, and 48V DC models available, makes it a perfect fit for diverse applications, from industrial equipment and server enclosures to telecommunications hardware and high-power electronics.

Superior Architecture and Construction

The foundation of this DC fan's exceptional performance lies in its brushless DC motor. This advanced motor technology presents several key advantages over conventional brushed motors. By eliminating physical brushes, which are susceptible to wear, brushless motors provide a significantly longer operational life and superior dependability. They also run with less friction, which results in lower power consumption, reduced heat output, and quieter operation. This efficiency not only contributes to lower running costs but also enhances the overall stability and longevity of the system it cools.

Its robustness is reinforced by a dual ball bearing system. Unlike sleeve bearings that can be prone to wear and are often limited by mounting orientation, dual ball bearings offer superior durability and performance under stress. Utilizing two sets of ball bearings helps distribute the load more evenly, minimizing friction and wear. This design allows the fan to be mounted in any position—horizontally, vertically, or at an angle—without compromising its lifespan or performance. Dual ball bearing fans are also better equipped for higher temperature environments, ensuring reliable function when it is most critical.

The physical build of the DC fan is engineered for durability and safety. The frame and the three-bladed impeller are both constructed from Thermal Plastic that adheres to the UL 94V-0 flammability standard. This classification signifies that the material will self-extinguish within ten seconds after a flame source is removed and will not produce flaming drips, providing a crucial safety measure in electronic and industrial contexts.

Unmatched Capability and Versatility

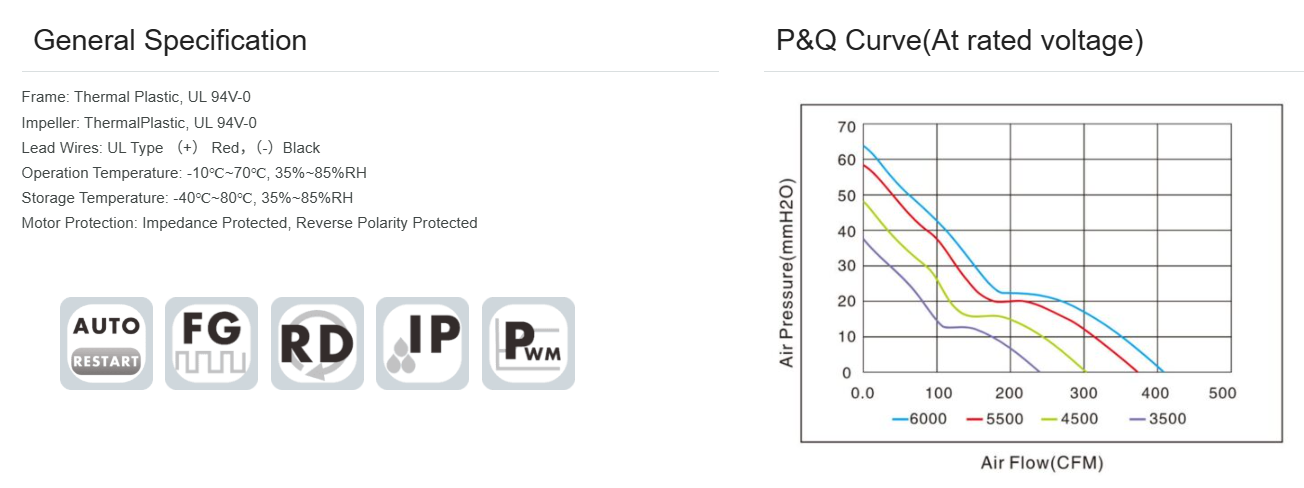

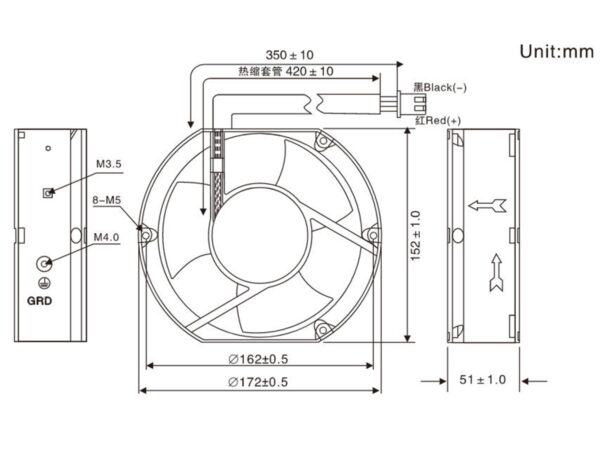

Thanks to its large 172mm diameter and 51mm depth, this DC fan can displace a significant air volume. It delivers a maximum airflow nearing 410 cubic feet per minute (CFM), making it highly effective for cooling densely packed electronics or large enclosures. The fan also produces a peak static pressure of 2.53 inches of H2O, enabling it to push air effectively through restrictive pathways like heatsinks and filters. The fan's performance characteristics are detailed in the provided P&Q (Pressure and Airflow) curve, which shows the inverse relationship between static pressure and airflow, allowing engineers to accurately predict its behavior based on their system's unique impedance.

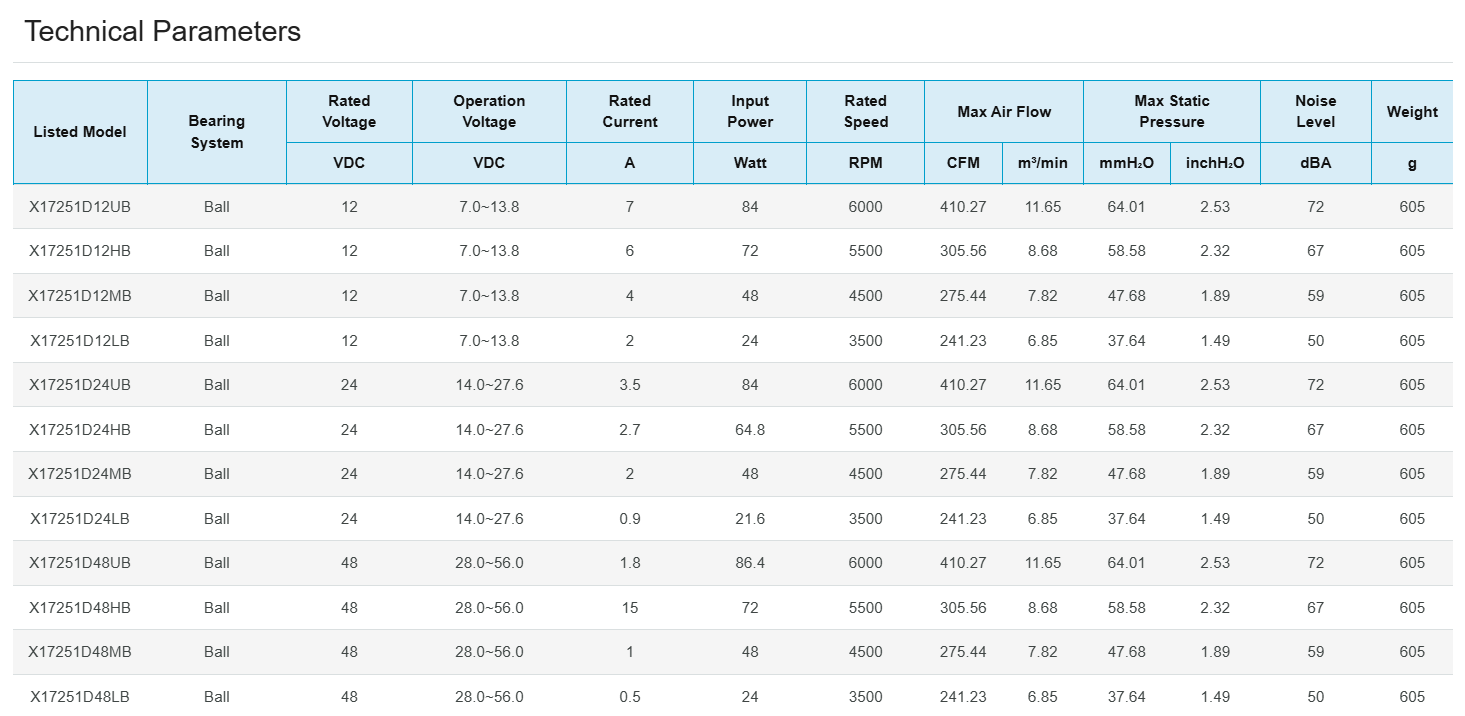

To meet diverse needs, this DC fan is available in various voltage and speed configurations. For instance, the 12V models come in high, medium, and low-speed options, with power ratings of 84W, 48W, and 24W respectively. Similarly, the 24V and 48V versions also provide multiple speed and power setups. This adaptability allows for precise customization of the cooling solution to fit the thermal requirements and power budget of the intended system. As an example, the highest speed models for all voltages operate at a brisk 6000 RPM, while lower speed variants offer a balance between performance and reduced acoustic noise.

Advanced Features and Protections

To ensure the longevity of both the DC fan and the equipment it protects, several key protective mechanisms are included. Impedance protection is a vital safeguard that prevents the motor from overheating if the blades are locked. Should the fan blades become obstructed, this feature raises the impedance of the motor windings to limit current and prevent a dangerous rise in temperature.

Furthermore, this DC fan comes equipped with reverse polarity protection. This essential safeguard prevents damage to the fan's sensitive internal electronics if the DC power source is accidentally connected with the wrong polarity. In industrial settings or during field service, wiring errors can happen, and this protection circuit immediately cuts off power flow to shield the motor from potentially catastrophic damage.

For enhanced system monitoring and control, this DC fan can be outfitted with optional features such as a tachometer output (Frequency Generator - FG) and a locked rotor alarm (Rotation Detector - RD). The FG signal gives real-time feedback on the fan's rotational speed, permitting precise control and monitoring of its performance. The RD signal issues an alarm if the fan ceases to rotate, enabling the system to take corrective measures, like shutting down to prevent overheating. Additionally, a Pulse Width Modulation (PWM) control option is available, which permits dynamic speed control based on temperature or system load, optimizing cooling efficiency while minimizing noise and power consumption.

Extensive Applications

The robust design and powerful performance of this 172mm DC fan make it suitable for a multitude of applications across various industries. Some of its common uses include:

• Industrial Automation: Ventilating motor drives, power supplies, and control cabinets.

• Telecommunications: Managing heat in base stations, routers, and network switches.

• Server Racks and Data Centers: Providing essential cooling for servers, storage systems, and networking gear.

• Welding Equipment and CNC Machinery: Dissipating the substantial heat generated during operation.

• Medical Equipment: Ensuring the integrity and safety of sensitive diagnostic and therapeutic devices.

• Renewable Energy: Cooling inverters and power conversion systems for solar and wind power.

Ultimately, this 172mm brushless DC fan embodies a top-tier cooling solution, meticulously designed for resilience, safety, and high performance. The fusion of a powerful brushless motor, a robust dual ball bearing system, and a comprehensive suite of control and protection features makes it a superior choice for any application where dependable and effective thermal management is crucial.
