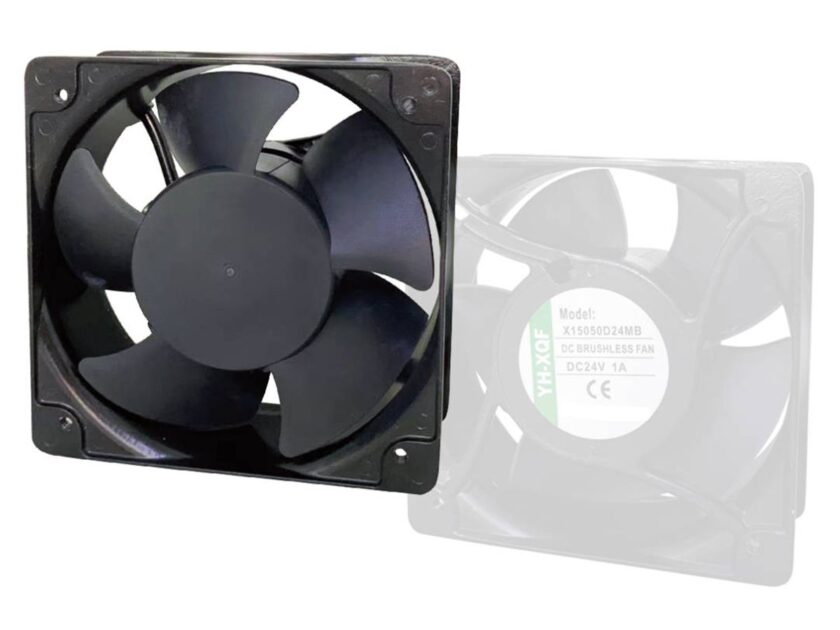

A Thorough Introduction to the High-Performance 140mm DC fan

In the world of modern electronics and industrial equipment, where reliable thermal management is not just a feature but an essential requirement, this 140mm DC fan stands out as a premier solution for demanding applications. As components grow more powerful and compact, the heat they generate can degrade performance, reduce lifespan, and even lead to catastrophic system failure. Answering the call for robust, dependable, and potent cooling is this 140mm DC fan, a solution engineered for the most challenging applications where consistent performance and resilience are critical.

This fan is not just a part; it's a comprehensive cooling solution built to move significant volumes of air, withstand harsh operating conditions, and offer a suite of customizable features to integrate seamlessly into sophisticated systems. From high-density server racks and telecommunication cabinets to industrial control systems and high-performance PC rigs, this fan provides the airflow and pressure needed to maintain optimal operating temperatures.

Robust Construction and Thoughtful Design

At the core of this DC fan's reliability is its superior construction. The frame and nine-bladed impeller are made from high-quality Thermal Plastic, which complies with the UL 94V-0 flammability standard. This is a crucial safety feature, as this rating signifies that if the material should ignite, it will self-extinguish within 10 seconds on a vertical sample, without producing flaming drips. This ensures a higher degree of safety, especially in enclosed electronic devices where a fire can be devastating.

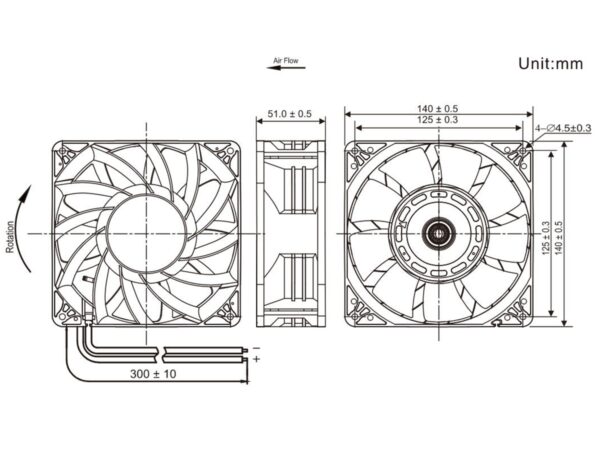

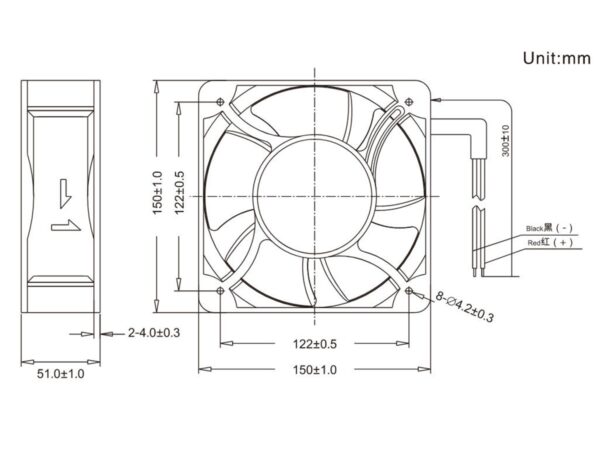

The DC fan's physical dimensions are a standard 140mm x 140mm, with a substantial 51mm thickness. This depth is a key element of its powerful performance, allowing for a more aggressive blade pitch and a potent motor, which together generate both high airflow and high static pressure. Mounting is standard and straightforward, with four 4.5 mm holes set in a 125mm x 125mm square pattern, ensuring compatibility with a wide variety of cases, brackets, and enclosures. All models in this series have a solid weight of 500 grams, a testament to the robust motor and durable frame construction.

Uncompromising Performance: Airflow and Static Pressure

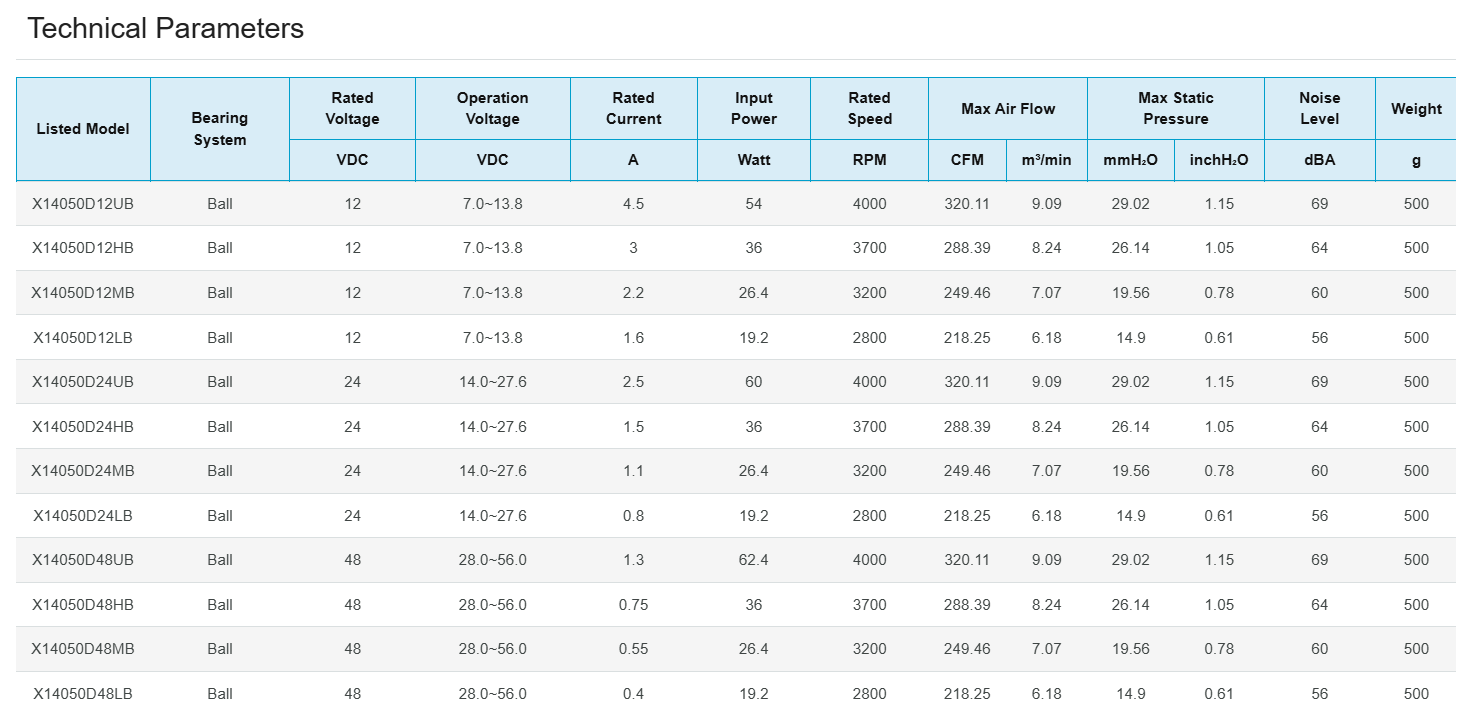

The primary function of any DC fan is to move air, and this 140mm model excels in this respect, offering a versatile range of performance ratings to suit various needs. At the top end, it is capable of generating a massive maximum airflow of 320.11 Cubic Feet per Minute (CFM). This level of airflow is essential for applications that require rapid heat exchange in large enclosures or for cooling densely packed components. For applications where noise or power consumption is a greater concern, options are available that provide a still-impressive 218.25 CFM.

However, raw airflow is only half the story. In many real-world applications, air must be forced through obstacles like thick heatsinks, radiators, filters, or restrictive chassis grilles. This is where static pressure becomes critical. Static pressure is the measure of force a DC fan can exert to push air through such resistance. This DC fan boasts a maximum static pressure of up to 29.02 mmH₂O (millimeters of water), making it remarkably suitable for high-impedance environments.

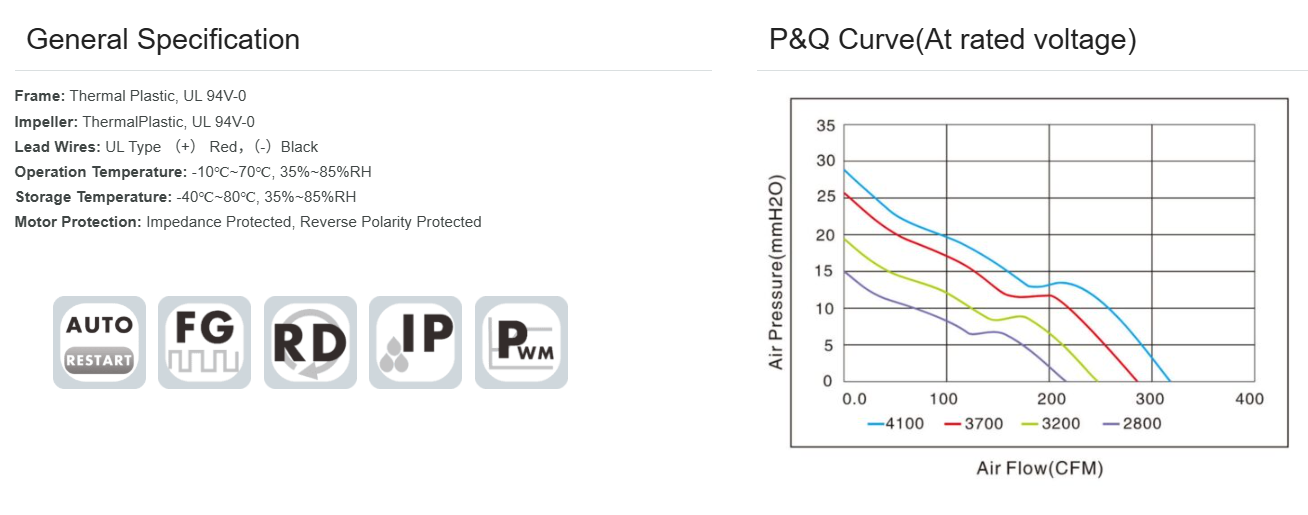

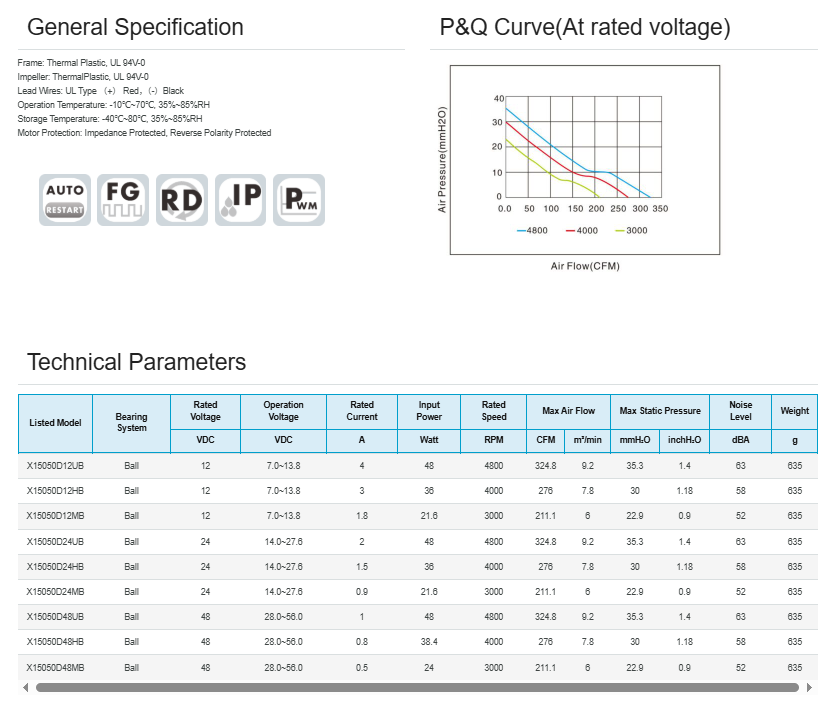

For less restrictive applications, models are available with a static pressure of 14.9 mmH₂O. The P&Q (Pressure vs. Airflow) curve provided in the specifications illustrates this trade-off, showing how the DC fan will perform across a range of system resistances, allowing engineers to choose the ideal operating point for their specific design.

Efficiency and Durability: The Brushless DC Motor and Ball Bearings

Powering this impressive performance is a sophisticated brushless DC (BLDC) motor. Unlike their brushed counterparts, BLDC motors have no physical brushes to wear out, resulting in significantly higher efficiency, a much longer operational lifespan, and quieter operation. This technology also allows for more precise speed control and generates less electromagnetic interference (EMI), a crucial advantage for sensitive electronic environments.

To match the longevity of the motor, the DC fan is equipped with a dual ball bearing system. Ball bearings are superior to traditional sleeve bearings in almost every metric for high-performance applications. They offer a much longer lifespan, can operate reliably at higher temperatures, and are not restricted by mounting orientation—they perform equally well whether mounted vertically, horizontally, or at an angle. This ensures consistent and reliable performance for tens of thousands of hours, even under continuous operation.

The DC fan's durability is further underscored by its wide operational temperature range, from -10°C to +70°C, and a storage temperature range of -40°C to +85°C. This resilience makes it an ideal choice for environments that are not climate-controlled, such as or outdoor telecom enclosures. For added peace of mind, the motor features integrated impedance protection, which prevents burnout if the rotor is blocked, and reverse polarity protection, which safeguards the DC fan's electronics against accidental incorrect wiring during installation.

Versatility and Intelligent Control

Recognizing that modern systems demand more than just raw performance, this DC fan is available with a variety of power and control options. It can be configured for various DC power systems, with 12V, 24V, and 48V rated voltage options. This flexibility allows it to be integrated into everything from consumer-grade PCs (12V) and industrial automation systems (24V) to telecommunications equipment (48V).

Performance can be precisely scaled across four main speed ratings: 2800 RPM, 3200 RPM, 3700 RPM, and 4000 RPM. This selection allows for a balance between maximum cooling, energy efficiency, and acoustics. Noise levels range from a moderate 56 dBA for the lower-speed models to a robust 69 dBA for the highest performance variant—a sound level commensurate with its powerful air-moving capability.

For systems that require intelligent, dynamic control, the DC fan can be equipped with several advanced features:

• PWM (Pulse Width Modulation) Control: This feature provides a fourth wire for a PWM signal, allowing a motherboard or dedicated fan controller to precisely manage the fan's speed based on real-time system temperatures. This allows the system to run nearly silently at idle and ramp up to full power only when needed, optimizing both acoustics and cooling efficiency.

• FG (Frequency Generator) Signal: Also known as a tachometer output, this third-wire signal provides feedback on the fan's rotational speed. System administrators can use this data to monitor the health and performance of the cooling system, ensuring all fans are running as expected.

• RD (Rotation Detector) Signal: This feature acts as a simple but essential alarm. It sends a high or low signal to the system to indicate whether the fan is rotating or has failed. In mission-critical applications like servers or medical equipment, this alarm can trigger alerts or system shutdowns to prevent catastrophic damage from overheating.

• IP (Ingress Protection) Rating: For deployment in particularly harsh environments, the fan can be designed to meet specific Ingress Protection standards, providing certified protection against the intrusion of dust and moisture.

Conclusion

This 140mm High-Speed DC fan is a masterclass in cooling engineering, designed from the ground up for performance, reliability, and versatility. By combining a powerful and efficient brushless motor, a durable dual ball bearing system, and a robust, safety-rated construction, it delivers exceptional airflow and static pressure.

With its wide range of available voltages, speeds, and advanced control features like PWM, FG, and RD, it is more than just a component—it is a smart, adaptable, and essential tool for any serious thermal management strategy. Whether you are an engineer designing an industrial control cabinet, a systems integrator building a server cluster, or an enthusiast seeking the ultimate in PC cooling, this DC fan delivers the uncompromising performance required to keep critical components cool, stable, and running efficiently for years to come.
