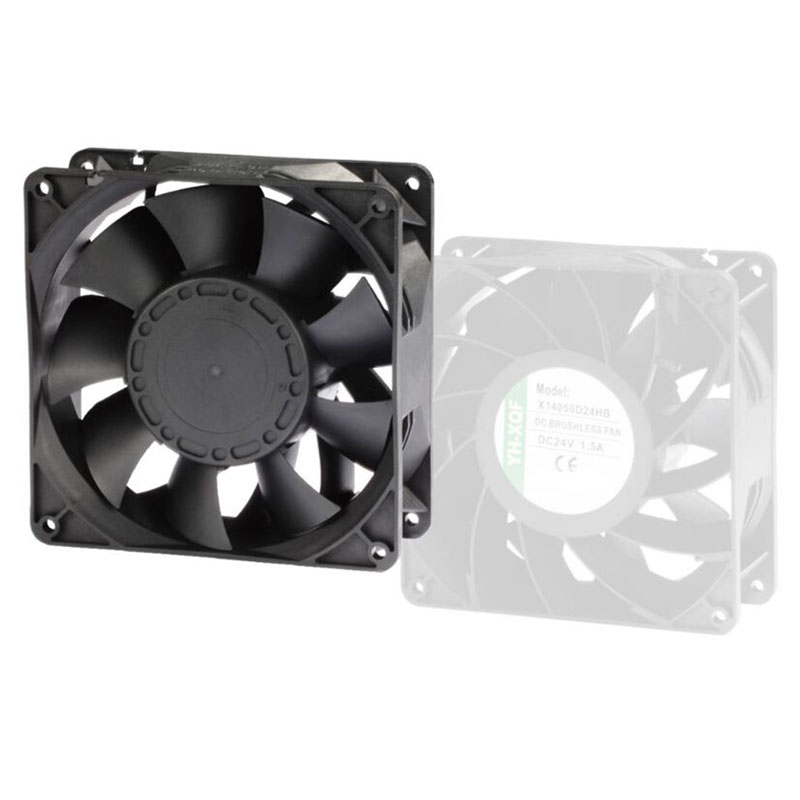

Unlocking Superior Cooling Power: The 120x38mm Brushless DC fan with Ball Bearings

In the domain of high-performance industrial equipment and electronics, managing heat effectively is not merely a recommendation; it is an essential prerequisite. The drive for efficient, dependable, and robust cooling solutions has spurred the creation of sophisticated fans designed to meet the rigorous demands of contemporary technology. Among these advanced options, the 120x38mm DC fan, equipped with a dual ball bearing system and a high-velocity brushless motor that can achieve an impressive 5100 RPM, stands out as a pinnacle of cooling innovation. This particular DC fan is engineered to produce exceptional airflow and static pressure, ensuring optimal operating conditions for even the most challenging systems.

Designed for Strength and Precision

The core of this formidable cooling solution is a highly efficient brushless DC motor. When compared to their brushed equivalents, brushless motors present a multitude of benefits, such as significantly improved efficiency, a much longer operational life, and quieter performance. The elimination of brushes gets rid of friction and wear, which, distinct from the reduced friction of ball bearings, translates into less heat generation and lower maintenance needs.

This inherent efficiency means more electrical energy is converted into rotational force, propelling the DC fan blades at a remarkable 5100 revolutions per minute. This high rotational velocity is directly responsible for the fan's impressive airflow and static pressure ratings, making it a perfect choice for applications where moving a large volume of air through confined spaces is critical.

The fan's design, with a 120x120mm frame and a 38mm depth, provides a substantial area for its dynamically balanced blades. This larger form factor, paired with the high RPM, allows it to achieve a significant cubic feet per minute (CFM) value, effectively removing heat from vital components. Furthermore, the 38mm depth enhances its ability to generate higher static pressure, enabling this DC fan to overcome resistance from dense heatsinks, filters, and tightly packed enclosures. This makes it particularly well-suited for server racks, telecommunications hardware, industrial control cabinets, and high-end gaming computers where maintaining ideal temperatures is crucial for performance and reliability.

The Unwavering Dependability of Dual Ball Bearings

A critical component that contributes to this DC fan's exceptional longevity and consistent performance is its dual ball bearing system. Ball bearings present several clear advantages over conventional sleeve bearings. They are less prone to wear, can function at higher temperatures, and are not restricted by mounting orientation, which means they can be installed horizontally, vertically, or at any angle without affecting their lifespan or performance. This flexibility is a major plus in complex system designs where space and mounting possibilities might be limited.

The use of dual ball bearings creates a robust and stable support structure for the fan's rotor, which minimizes wobble and vibration even at high speeds. This stability not only results in quieter operation than one might expect from such a powerful fan but also significantly extends its mean time between failures (MTBF). The reduced friction found in ball bearing systems also leads to better motor performance and efficiency. With a potential lifespan of up to 70,000 hours of continuous use, this DC fan represents a long-term, reliable investment for any critical cooling need.

Resilient Construction and Integrated Safety

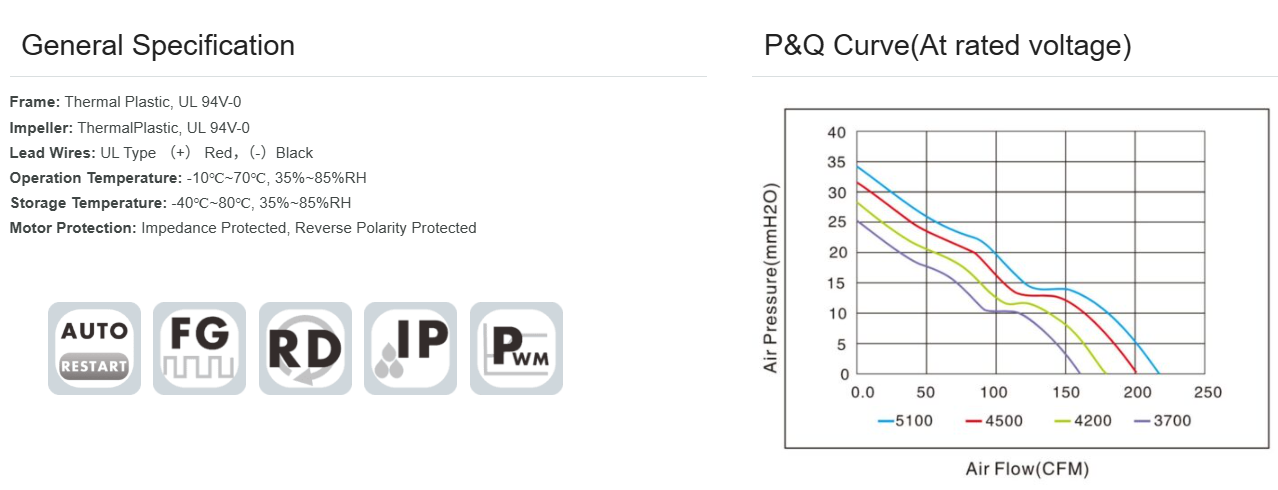

To guarantee durability and safety across a wide spectrum of operating conditions, this DC fan is constructed from high-quality materials. Its frame and impeller are typically made from a polycarbonate that adheres to UL94V-0 flammability standards. This rating signifies that the plastic is highly flame-retardant and will self-extinguish within a very short time after a flame source is removed, providing a vital layer of safety in electronic equipment.

Beyond its sturdy physical build, the fan integrates several essential protection mechanisms. Impedance protection is a key feature that shields the motor from burnout in the case of a locked rotor. If the DC fan blades become obstructed and cannot turn, the impedance protection circuit limits the current to a safe level, preventing the motor windings from overheating and failing.

This is a crucial safety function that protects both the fan and the equipment it is cooling. Additionally, many high-quality DC fans, this model included, incorporate reverse polarity protection. This feature prevents damage to the fan's delicate internal electronics if the power leads are accidentally connected incorrectly. While a simple error, reversed polarity can instantly destroy unprotected electronic components. The inclusion of this feature provides peace of mind during installation and maintenance, ensuring the fan's long life and dependable service.

Adaptability and Extensive Applications

The combination of high airflow, substantial static pressure, robust construction, and advanced protective features makes this 120x38mm DC fan an exceptionally versatile cooling solution. Its capacity to operate effectively in a broad temperature range, typically from -10°C to +70°C, further broadens its potential uses.

In the sphere of information technology, these DC fans are essential for cooling servers, network switches, and data storage systems that generate immense amounts of heat in densely packed setups. Industrial applications are also numerous, with these fans being utilized to cool power supplies, inverters, motor drives, and other sensitive electronic controls within enclosures. They are also found in professional audio equipment, medical devices, and premium desktop computers where performance and stability are non-negotiable. The fan's architecture allows for customization, with choices for various lead wire lengths and connectors to meet specific integration requirements.

In conclusion, the 120x38mm DC fan, with its 5100 RPM brushless motor and dual ball bearing system, represents a powerful and dependable solution for the most challenging thermal management tasks. Its superior airflow, high static pressure, exceptional durability, and built-in safety features make it an ideal choice for a vast array of high-performance applications. By ensuring optimal operating temperatures, this DC fan not only enhances the performance of electronic and industrial hardware but also safeguards its long-term reliability and operational stability.
