A New Standard in Advanced Thermal Control

In the dynamic world of contemporary electronic devices, effective thermal regulation has become a fundamental requirement. The increasing power and shrinking size of components create heat that poses a major threat to performance, dependability, and overall product life. Inadequate cooling can lead to reduced processing speeds, system failures, and early hardware degradation. Countering this issue demands a cooling solution that is not merely sufficient, but also robust, efficient, and exceptionally reliable.

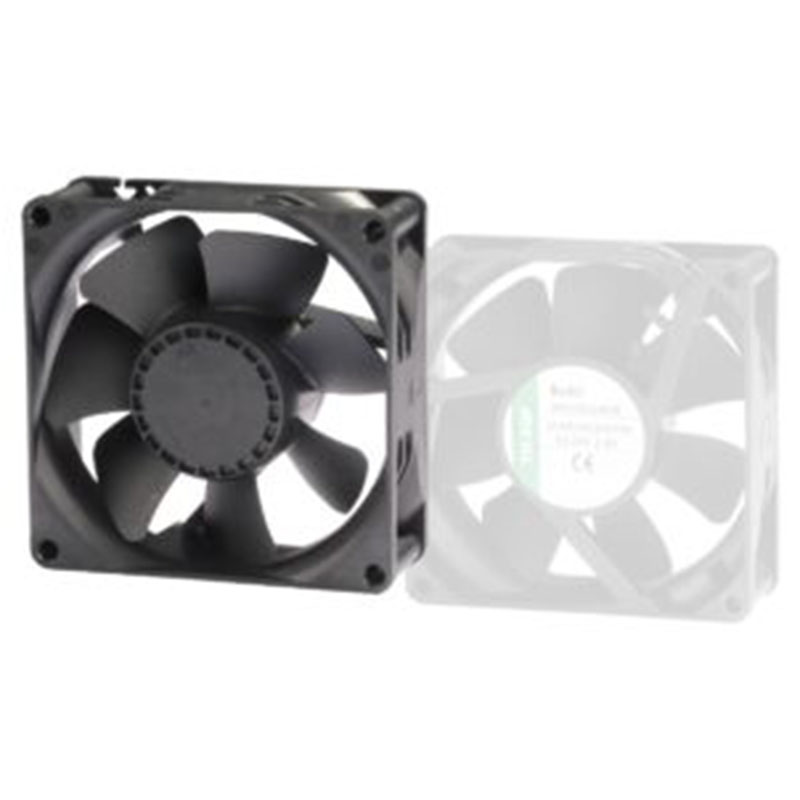

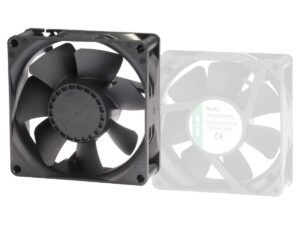

We introduce a top-tier thermal solution designed for the most challenging conditions: the High-Speed 92x92x32mm Brushless DC fan. This fan is carefully engineered to deliver outstanding airflow and static pressure, positioning it as an ideal choice for a diverse set of applications, including high-performance computing, server installations, industrial control cabinets, and telecommunications hardware. By merging a sturdy build, advanced motor design, and a highly efficient blade configuration, this fan serves as a cornerstone for any effective heat management strategy.

Performance Designed for Power and Accuracy

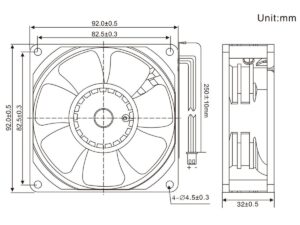

At the heart of this fan's capability is its extraordinary performance, defined by substantial air movement and impressive static pressure. Its physical dimensions of 92x92x32mm provide the ideal framework for a larger motor and more aggressively angled blades than those found in thinner models.

This design is key to displacing a large volume of air, a metric measured in Cubic Feet per Minute (CFM). With versions capable of reaching speeds up to 6000 RPM, this DC fan can produce a remarkable peak airflow of nearly 111 CFM. This degree of performance is essential for applications that demand rapid heat exchange and ventilation within open enclosures or across multiple heat-generating parts.

Just as crucial is its capacity to generate high static pressure, representing the fan's power to force air through confined pathways. In practical situations, airflow is rarely unobstructed. It must navigate through dense heatsink fins, dust screens, radiators, and tightly packed components. This fan excels in these challenging scenarios, with its leading models producing a maximum static pressure of 14.8 mmH2O. This capability ensures a consistent and cooling stream of air reaches vital components, even within high-impedance environments.

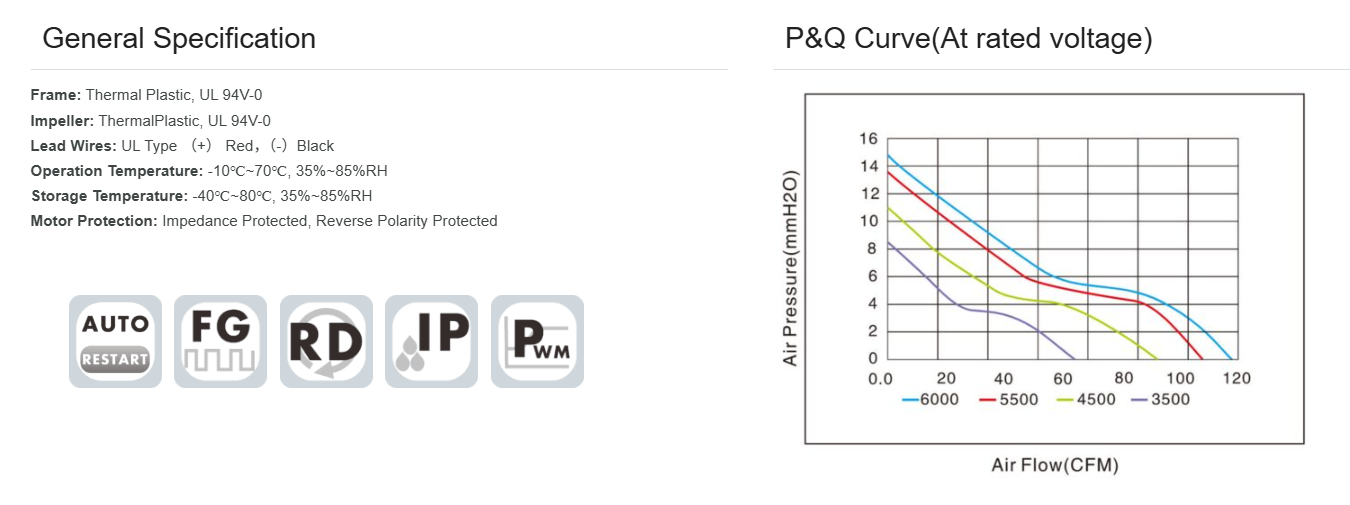

The accompanying performance (P&Q) curve clearly illustrates the dynamic interplay between airflow and pressure. This allows engineers to select the exact performance level for their unique application, with choices available at various speed ratings, including 5500, 4300, and 3500 RPM, for those needing a balance between cooling power and noise levels.

Unwavering Dependability and Durability

A cooling fan is often one of the few moving parts in an electronic system, making its reliability absolutely vital. This DC fan is constructed for longevity, beginning with its superior ball bearing system. In contrast to conventional sleeve bearings, which have shorter lifespans and are prone to failure, especially in non-vertical orientations, a dual ball bearing system guarantees years of uninterrupted, maintenance-free service. Ball bearings feature lower friction, better temperature resistance, and the versatility to be mounted in any position without impacting durability, making this fan a perfect "fit-and-forget" solution for critical 24/7 systems.

The fan's physical construction further reinforces its resilience. Both the frame and the seven-blade impeller are made from high-grade thermal plastic that meets the UL 94V-0 flammability standard. This certification signifies that the material will self-extinguish in a fire, adding an important safety layer for industrial equipment. The fan is designed to operate flawlessly over a wide temperature spectrum, from a chilly -10°C to a warm +70°C (14°F to 158°F). Its storage temperature tolerance is even broader, from -40°C to +80°C, ensuring its integrity is preserved during transport and storage in uncontrolled climates.

Sophisticated Motor Technology and Versatility

The fan's core is an advanced brushless DC motor, which provides several advantages over older brushed motor designs. The absence of brushes eradicates the most common source of wear, dramatically extending the motor's lifespan and dependability. Brushless motors are also more energy-efficient, converting more electricity into rotational force while wasting less as heat.

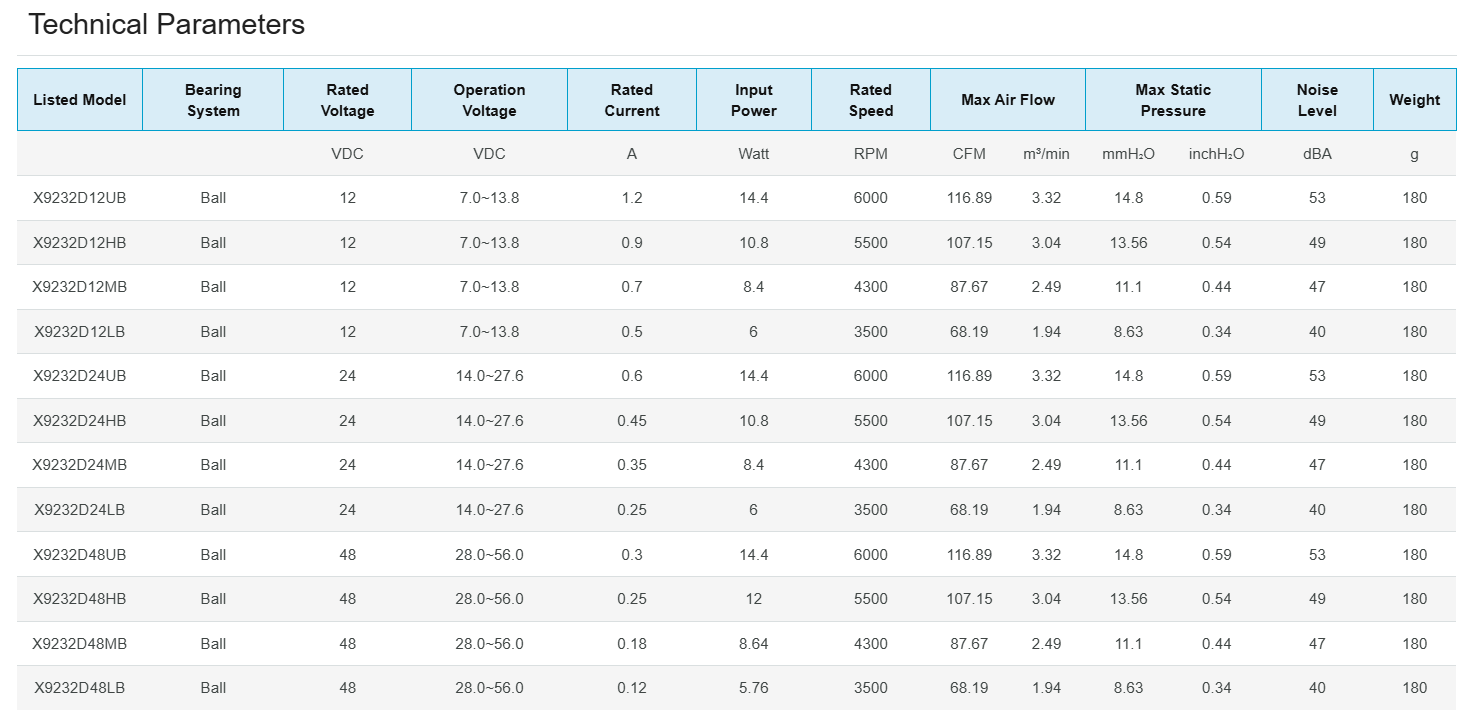

This efficiency is evident in the fan's power draw, which ranges from a low 5.76 watts for slower models to only 14.4 watts for the highest-performing version. For enhanced system protection, the motor features integrated impedance and reverse polarity protection, safeguarding both the fan and the host device from electrical faults.

Adaptability is a key design principle of this fan. It is offered in several standard DC voltages—12V, 24V, and 48V—making it a direct replacement solution for a wide range of industries. The 12V models are suited for consumer electronics, custom PC builds, and automotive use. The 24V and 48V versions are designed for industrial automation, server farms, and telecom infrastructure where higher DC voltages are prevalent.

This versatility simplifies procurement and integration for engineers working on diverse platforms. Furthermore, the fan can be outfitted with advanced options like Pulse Width Modulation (PWM) for precise speed control, a Frequency Generator (FG) for RPM monitoring, and a Rotation Detector (RD) alarm for critical failure alerts, enabling intelligent and responsive system-wide thermal management.

Applications

The blend of high performance, rugged construction, and design adaptability makes this 92x92x32mm DC fan ideal for an extensive list of applications:

• Data Centers and Servers: Providing crucial cooling for rack servers, storage hardware, and network switches.

• Telecommunications: Cooling for base stations, power systems, and signal processing hardware.

• Industrial Automation: Ventilating control cabinets, PLC systems, and motor drives to avert overheating in factory settings.

• High-Performance PCs and Workstations: Serving as a powerful CPU cooler fan or a high-airflow case fan for gaming and content creation systems.

• Professional A/V Equipment: Maintaining the reliability of amplifiers, broadcast gear, and audio mixers.

• 3D Printers and Manufacturing Equipment: Cooling hotends, control boards, and finished prints to improve output quality and system dependability.

In essence, this High-Speed DC fan is more than just a part; it's a complete cooling solution. It provides the raw power necessary to manage the most thermally demanding situations, the robust build to guarantee long-term reliability, and the design flexibility to integrate seamlessly into numerous systems. When performance is non-negotiable and failure is unacceptable, this fan provides cooling you can depend on.
