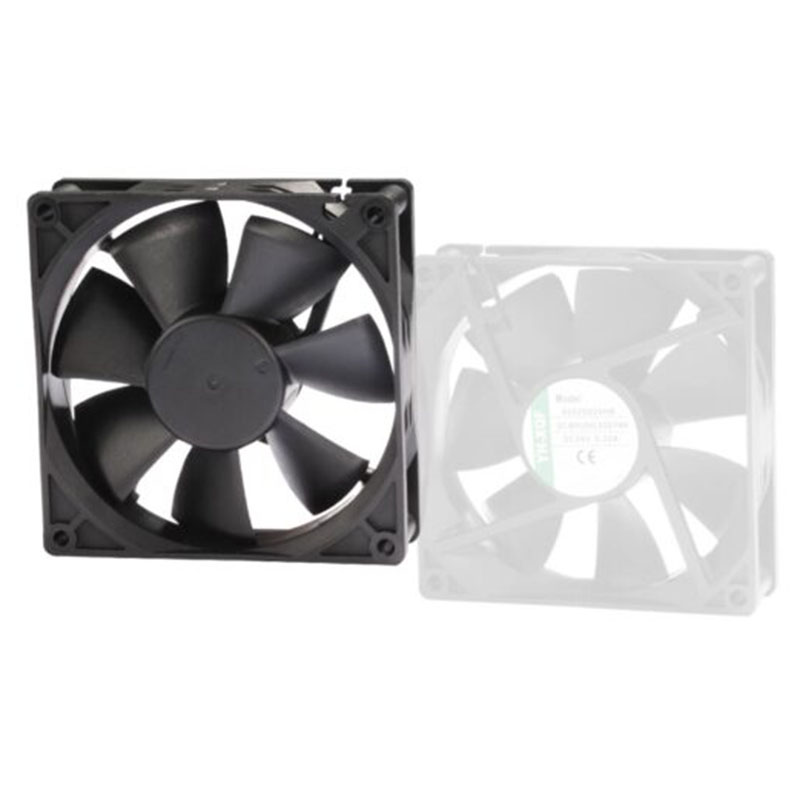

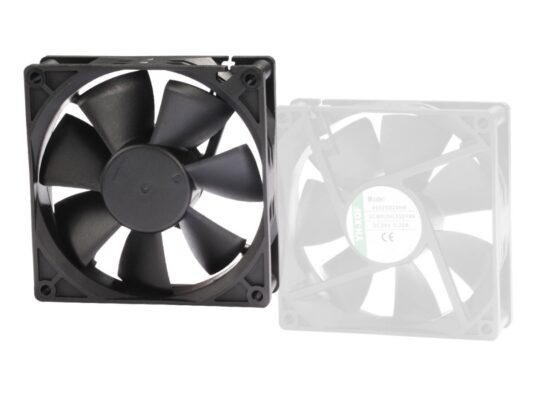

The 92x92x32mm Brushless DC Fan: Dependable Cooling in a Compact Form

For the stability, performance, and longevity of contemporary electronic hardware, trustworthy thermal management is absolutely essential. The 92x92x32mm Brushless DC fan, equipped with a ball bearing system, presents a superior cooling solution designed for challenging applications. Small yet potent, this fan strikes an optimal balance between airflow effectiveness, quiet operation, and durability, making it perfect for industrial, commercial, and electronic uses where space, temperature, and reliability are paramount.

Compact Design with Powerful Air Movement

With dimensions of 92mm x 92mm x 32mm, this DC fan provides substantial airflow capacity without demanding excessive space. Its streamlined profile allows for effortless integration into chassis, enclosures, and systems with restricted airflow pathways. Despite its condensed form, the fan delivers remarkable air performance, achieving a maximum airflow of up to 96.02 CFM at 5300 RPM. This high output guarantees swift heat dissipation during continuous operation, keeping system components within their ideal thermal limits. The fan's strong airflow ensures consistent cooling without needing oversized or multiple units, whether for a densely packed industrial controller, a telecommunications rack, or a power supply unit.

Advanced Ball Bearing Mechanism

This DC fan incorporates a high-precision ball bearing system, offering several functional benefits compared to sleeve bearings. Ball bearings are celebrated for their enhanced durability, minimized friction, and excellent performance in any mounting orientation. These bearings also contribute to a prolonged operational life, especially in high-temperature or high-vibration conditions. The fan's bearing system ensures long-term operation with minimal degradation, a critical feature for equipment that requires 24/7 availability. With a typical lifespan exceeding 50,000 hours at ambient temperatures, it delivers maintenance-free dependability even in harsh environments.

Brushless Motor Technology

A brushless DC motor lies at the fan's core, providing exceptional power efficiency, lower electrical interference, and improved resilience over traditional brushed motors. Since brushless motors are electronically commutated, they eliminate friction and wear on brushes, which lowers power usage and significantly extends their operational life. Furthermore, these motors are inherently more reliable, producing less electromagnetic interference (EMI) and running more quietly. This makes the fan well-suited for applications in sensitive electronic settings where stable performance and low acoustic noise are vital.

Broad Voltage Compatibility and Minimal Power Draw

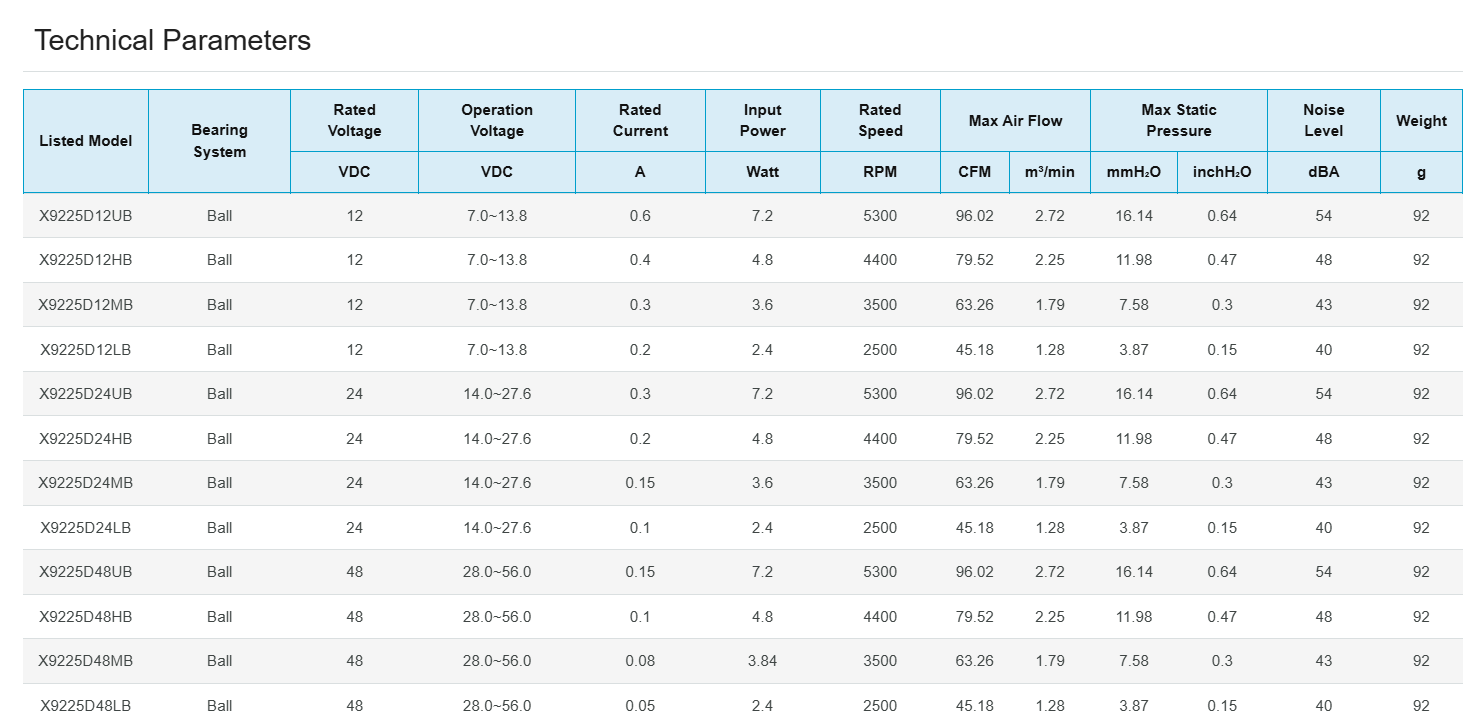

This DC fan is available in various rated voltages, including 12V, 24V, and 48V DC models. Each version provides outstanding operational range flexibility, making it ideal for systems powered by different DC sources or battery backups. The rated current and input power vary accordingly, with energy-efficient models consuming as little as 2.4 W and higher-performance variants using up to 7.2 W. Despite their differing power ratings, all fan models are optimized for low energy consumption, ensuring cost savings and reducing heat generation from the fan itself.

Superior Static Pressure and Cooling Effectiveness

A key performance indicator for a fan is its ability to generate static pressure, which reflects its capacity to push air through obstacles like filters, vents, or dense component arrays. This fan achieves a maximum static pressure of up to 0.64 inchH₂O (16.14 mmH₂O), depending on the specific model. Such high static pressure capability ensures the fan maintains steady airflow even as resistance increases from dust accumulation or compact layouts, making it a reliable choice for forceful, targeted cooling in industrial automation, network hardware, and high-density computers.

Acoustic Management for Quiet Operation

A fan's noise output is just as important as its cooling ability, especially in office, medical, or residential spaces. Depending on the model and speed, the fan operates with a sound level as low as 37 dBA, while faster versions reach approximately 54 dBA. The aerodynamic design of the impeller blades and a precision-balanced motor work together to minimize vibration and turbulence, resulting in quieter, smoother performance.

Robust Build with Flame-Resistant Materials

Durability and safety are crucial considerations in fan selection. The 92x92x32mm DC fan is constructed with a UL 94V-0 rated thermoplastic frame and impeller, offering high resistance to heat and flames. This flame-retardant material enhances operational safety and allows the fan to perform reliably in high-temperature settings, with an operational temperature range of -10°C to +70°C. Additionally, it can be stored in ambient conditions from -40°C to +80°C with up to 85% RH humidity tolerance.

Intelligent Motor Safety Features

To protect both the fan and the system it serves, multiple built-in safety mechanisms are included:

• Impedance protection guards against damage from stalled blades or overload situations.

• Reverse polarity protection prevents malfunction from incorrect wiring.

• Auto-restart functionality ensures the fan automatically resumes operation after an obstruction is cleared.

These smart features reduce the risk of overheating and minimize maintenance by enhancing fault resilience.

Adaptable Applications Across Industries

Due to its compact footprint, efficient airflow, and sturdy construction, the 92x92x32mm DC fan is suitable for a wide variety of applications, such as:

• Industrial control and automation panels

• Telecommunications and network hardware

• LED lighting enclosures

• Power supplies and UPS systems

• Home theater and audio-visual equipment

• Medical and laboratory instruments

• Vending machines and information kiosks

• 3D printers and other fabrication tools

Its adaptability and reliability make it an optimal cooling solution for any environment needing effective thermal control in a limited space.

Simple Integration and Setup

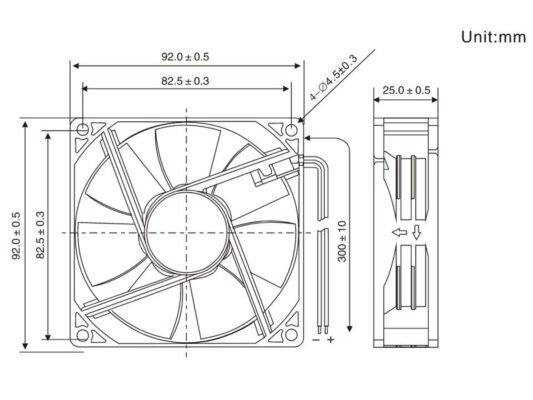

Featuring standard 4-hole mounting patterns and multiple lead wire choices, the fan is easy to install in both new designs and existing systems. The sturdy frame construction ensures mechanical stability, while pre-tinned lead wires facilitate secure electrical connections. With typical wire lengths around 300mm, installation is flexible enough for various internal layouts.

Conclusion

The 92x92x32mm Brushless DC fan with a ball bearing system merges potent airflow, extended lifespan, and high efficiency within a compact package. Engineered for precision and built with durable materials, it delivers trustworthy cooling for a broad spectrum of uses, from heavy-duty industrial machinery to space-conscious consumer electronics. With an emphasis on noise reduction, energy efficiency, and safety, this fan is a dependable, maintenance-free choice that ensures the longevity and stability of your valuable systems.
