An Introduction to the 92x92x20mm DC Fan (Ball/Sleeve, Low Noise)

In the fast-paced domain of electronics and compact computing, proficient heat regulation has become essential for system dependability and optimal function. The choice of a cooling fan can profoundly affect performance, lifespan, and sound levels, whether for an embedded industrial setup, a power supply, or a dense computing environment.

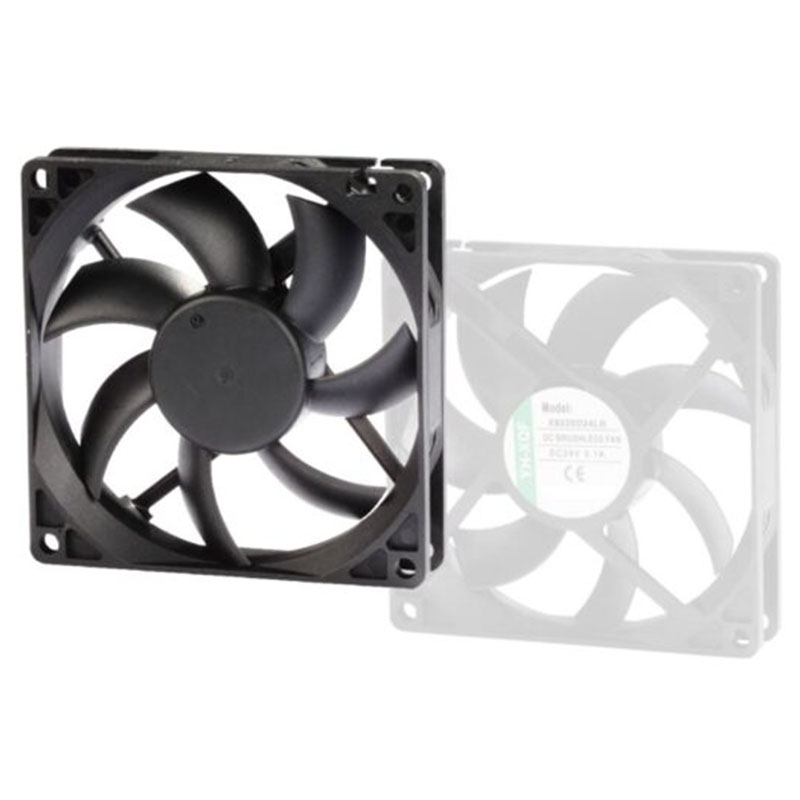

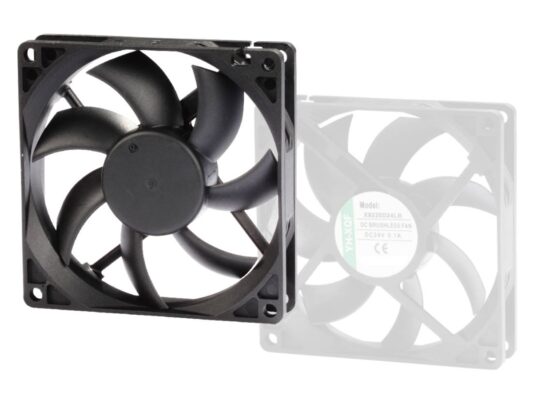

The 92x92x20mm DC fan stands as a highly efficient, compact cooling solution, created to satisfy the needs of contemporary electronic systems that demand quiet operation and dependable airflow. Offering a dual bearing choice (full ball bearing or a ball/sleeve hybrid), this fan is engineered to achieve an excellent balance of durability, cooling capability, and minimal acoustic output.

Precision Engineering and High-Quality Materials

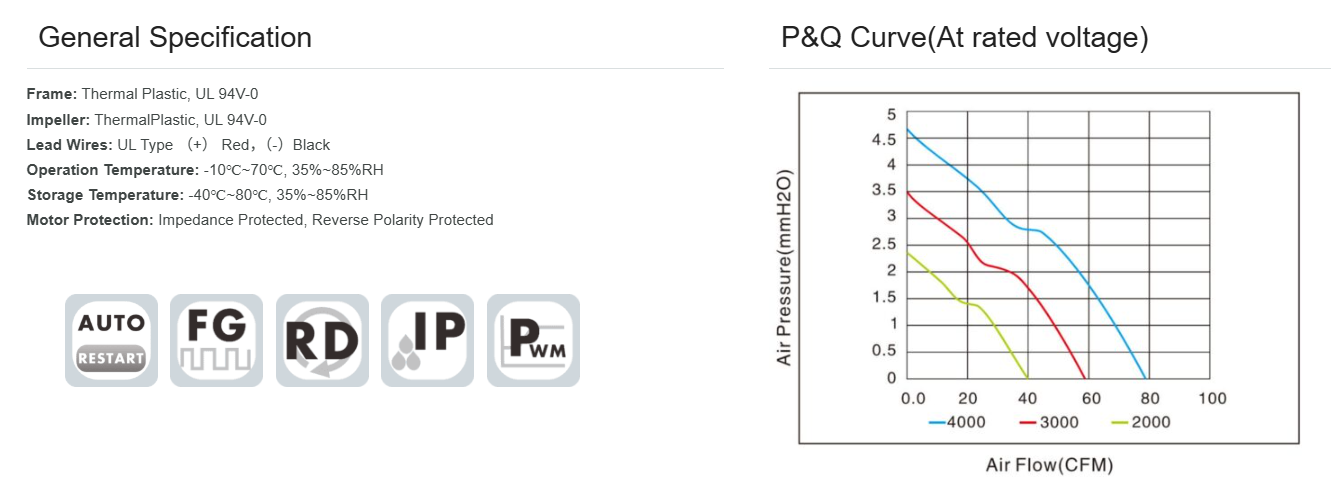

The fan's frame and blades are constructed from UL 94V-0 certified thermal plastic, which ensures exceptional heat tolerance, flame resistance, and structural integrity. These high-grade materials permit prolonged use in harsh conditions, supporting a wide operational temperature spectrum from -10°C to 70°C and storage between -40°C and 80°C. This impressive thermal resilience makes it ideal for demanding industrial, automotive, and consumer electronics. Furthermore, the lead wires adhere to UL standards and feature distinct color-coding for straightforward installation.

Compact Design with Optimal Airflow

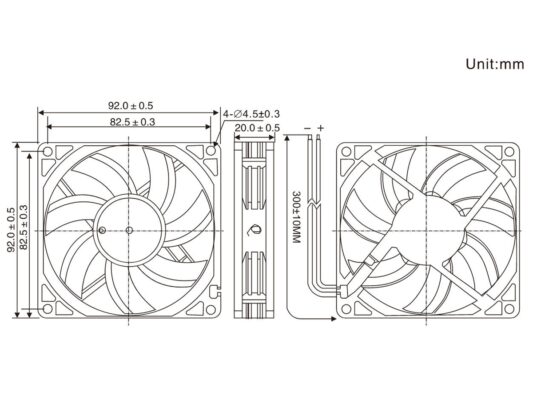

Measuring only 92x92x20mm, this fan is designed for applications where space is at a premium, yet it delivers a robust airflow reaching 78.69 CFM. Despite a slender profile, its aerodynamic blade shape generates significant static pressure up to 4.85 mmH₂O. This capability helps guarantee consistent cooling over dense or high-impedance components, like tightly finned heatsinks or restrictive enclosures. The design also incorporates four precisely drilled mounting holes for secure and universal fitting.

Flexible Power Compatibility

A key advantage of this 92mm fan is its broad voltage compatibility. It is designed to operate at 5V, 12V, and 24V DC, with allowances for fluctuating voltages based on the chosen configuration. This flexibility ensures smooth integration into power-sensitive hardware like portable devices, embedded boards, and networking gear. Its rated current and power consumption are optimized for efficiency, resulting in minimal power draw and less heat generation from the fan itself, which is ideal for energy-conscious systems.

Ball and Ball/Sleeve Hybrid Bearing Options

This fan is offered in both full ball bearing and ball/sleeve hybrid configurations to meet diverse application requirements.

• Ball Bearing: Built for superior durability and performance during continuous use, offering a longer service life and reliable operation in any mounting orientation. It is well-suited for mission-critical industrial or networking systems.

• Ball/Sleeve Hybrid: For applications prioritizing quieter operation and cost-effectiveness, this option provides a wonderful balance, achieving a low acoustic output down to 28 dBA without a significant compromise in performance or lifespan.

Across all models, the noise level ranges from 28 dBA to 40 dBA, ensuring a quieter environment for users—a major benefit in office workstations, home appliances, and public-facing equipment.

Intelligent Motor Protection and Safety

This fan incorporates intelligent motor protections like impedance and reverse polarity safeguards, enhancing safety and reducing the risk of damage from miswiring or overloads. It can also be equipped with Auto Restart and Rotation Detection (RD) options for added dependability in critical environments where consistent airflow is non-negotiable. For applications needing advanced management, Pulse Width Modulation (PWM) and Frequency Generator (FG) signal support are available, enabling dynamic speed adjustments and real-time monitoring for sophisticated thermal control.

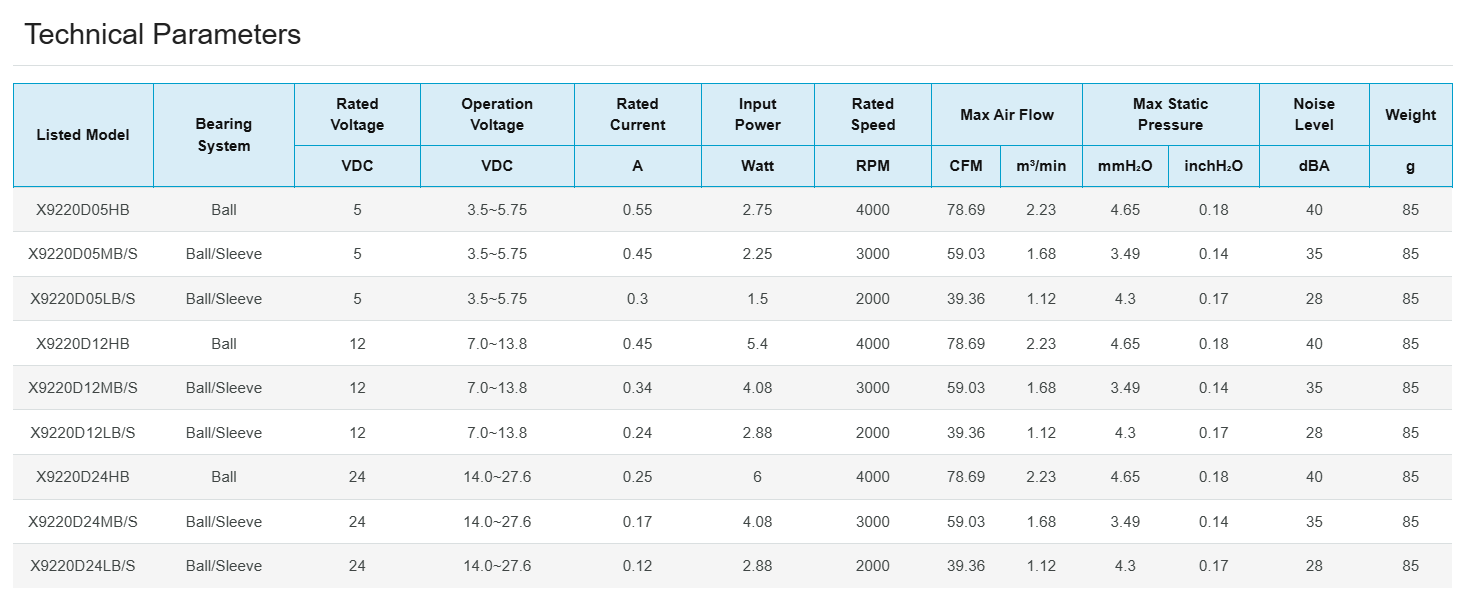

Performance Across Voltage Options

• 5V DC Model: Delivers maximum airflow up to 78.69 CFM with static pressure of 4.85 mmH₂O and noise levels from 28 to 40 dBA, making it perfect for USB- and battery-powered devices.

• 12V DC Model: Offers airflow up to 78.69 CFM with a moderate power draw, providing a balance of performance and efficiency for general electronics.

• 24V DC Model: Features a low current draw while maintaining airflow up to 59.03 CFM, making it ideal for industrial systems with higher voltage rails.

All versions weigh approximately 85g, ensuring minimal impact on the overall system weight and mechanical balance.

Application Versatility

Its versatility makes this 92x92x20mm DC fan suitable across many sectors and uses:

• Industrial Hardware: Motion controllers, PLCs, and power units.

• Network Equipment: Switches, routers, firewalls, and access points.

• Consumer Electronics: Gaming systems, projectors, and audio amplifiers.

• Medical Devices: Diagnostic machines, sterilizers, and mobile health monitors.

• Automotive Systems: Inverters, infotainment, and battery management.

• Fabrication Tools: 3D printers and CNC machines for electronics and extruder cooling.

• Telecommunications: Base stations, remote hardware, and signal boosters.

Conclusion

In conclusion, the 92x92x20mm DC fan presents a compelling package of quiet operation, durable design, energy efficiency, and safety within a slim profile. With choices for different bearings, voltage inputs, and smart features like RD, FG, and PWM, this fan is extremely adaptable for a broad array of uses, from high-end industrial equipment to compact consumer products. Engineered to provide dependable cooling with a minimal acoustic footprint, it addresses the growing demand in modern electronics for silent and effective thermal solutions. Whether for a critical system or a quiet, compact space, this fan is a proven, cost-effective choice to keep your hardware running cool and peacefully.
