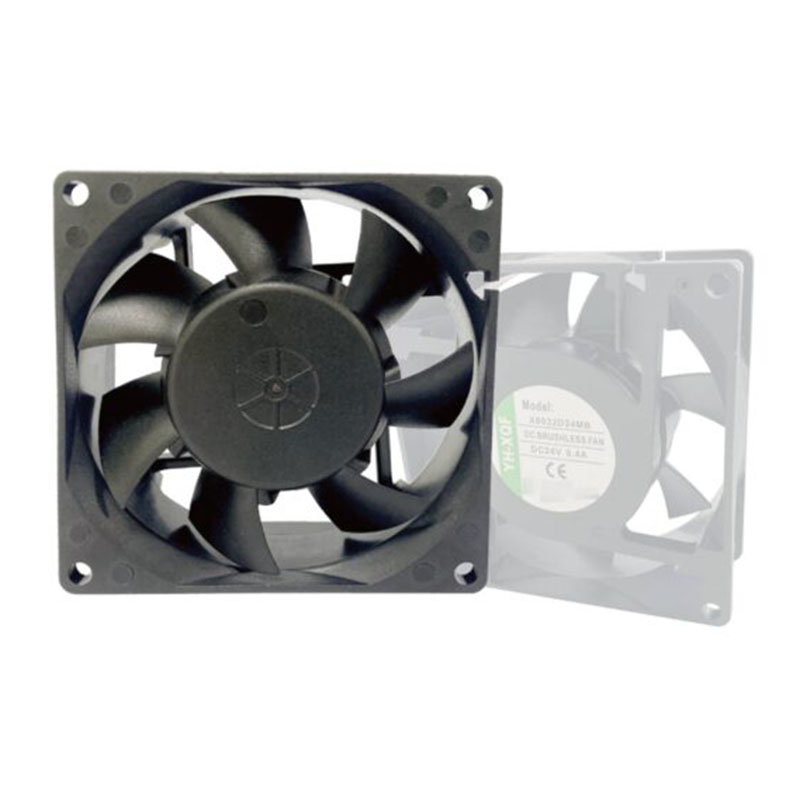

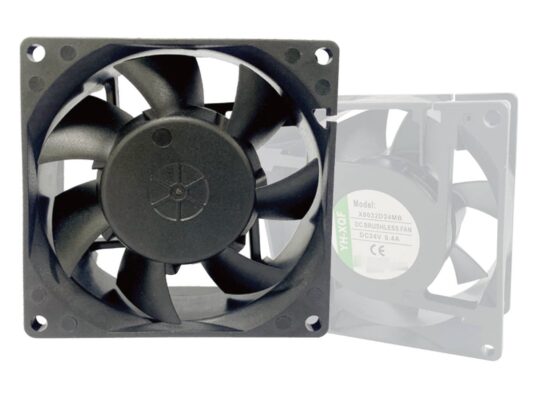

An Introduction to the 80x80x32mm DC Fan (12-48V, Ball Bearing)

In advanced digital and industrial settings, effective heat regulation is vital for maintaining sustained functionality, efficiency, and operational safety. The 80x80x32mm DC fan, with its extensive 12-48V voltage range and sturdy ball bearing construction, presents itself as a compact yet potent cooling solution designed for a wide spectrum of challenging environments. Engineered for superior air movement, extended life, and power efficiency, this fan delivers reliable cooling in space-limited enclosures without sacrificing reliability or safety.

Meticulously Designed Compact Form

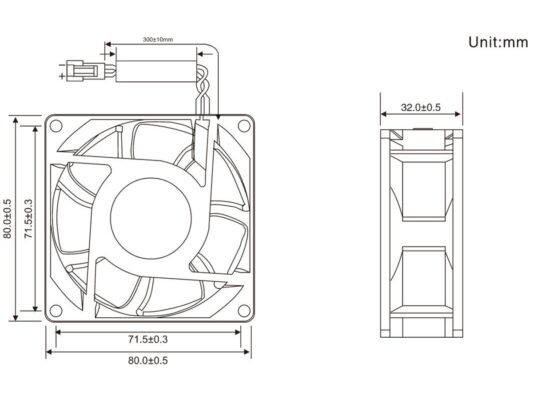

With a footprint of 80mm x 80mm x 32mm, this fan features a low-profile, square-frame shape that allows for simple incorporation into many different systems. Its standard mounting points and lightweight design (only 98 grams) make it perfect for applications where dimensions, mass, and airflow must be precisely calibrated. Both the casing and the impeller of the DC fan are fabricated from premium UL 94V-0 certified thermal plastic, guaranteeing flame retardancy and structural stability even after extended exposure to high temperatures.

Broad Operating Voltage: 12V, 24V, and 48V Choices

Versatility is a central characteristic of this fan series. Supporting three separate rated voltage classes—12V, 24V, and 48V—this fan can be adapted to a broad variety of electronic hardware. Whether powering sensitive consumer gadgets or rugged industrial machinery, the wide operational voltage ranges handle fluctuating power conditions without any performance decline. Each voltage option is available in multiple performance profiles, offering the choice of either maximum airflow or extremely quiet operation.

Dependable Ball Bearing System

Featuring a dual ball bearing mechanism, the DC fan provides a prolonged operational life, reduced degradation, and superior performance in both horizontal and vertical mounting orientations. In contrast to sleeve-bearing fans, the ball bearing design permits function in harsh settings, including those with higher ambient temperatures or upright installations where sleeve lubricants might settle unevenly. This makes it especially beneficial for critical systems where continuous availability is essential.

Robust Airflow and Static Pressure Performance

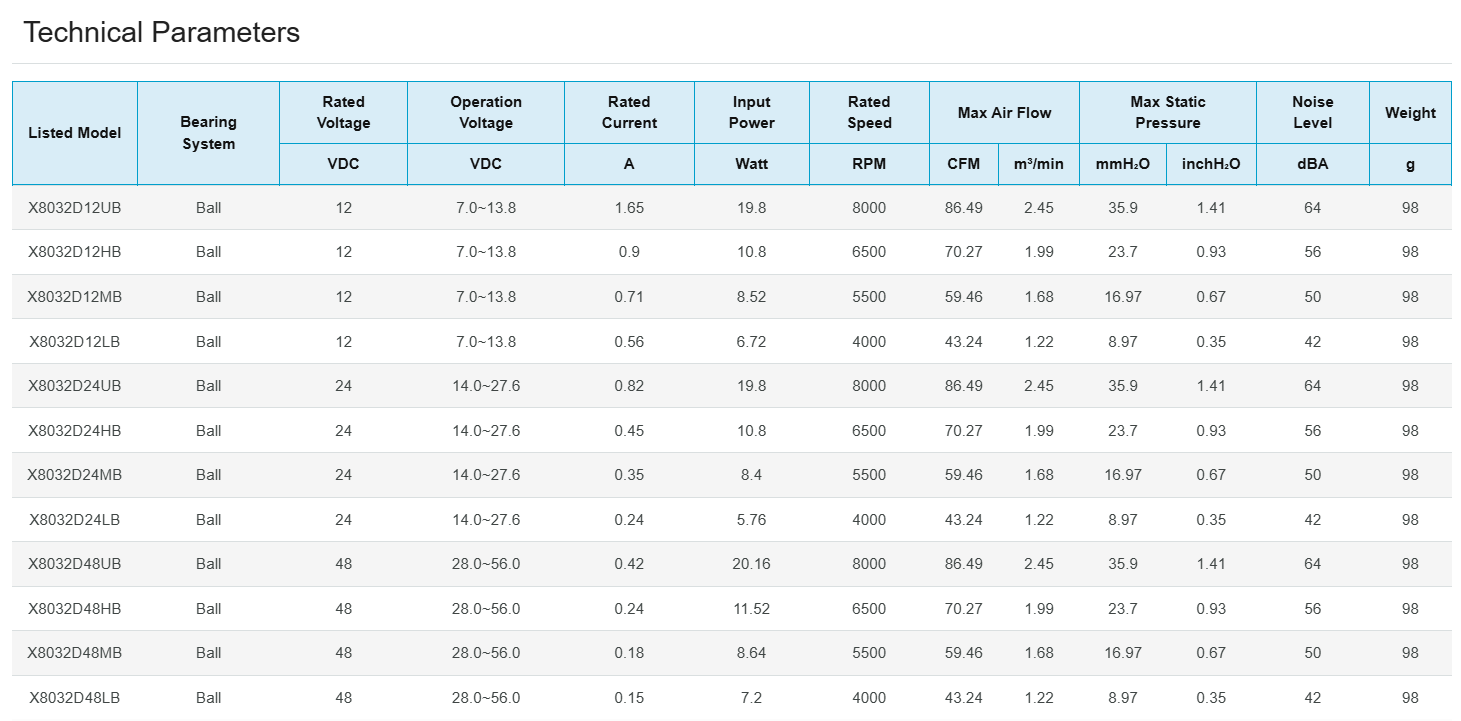

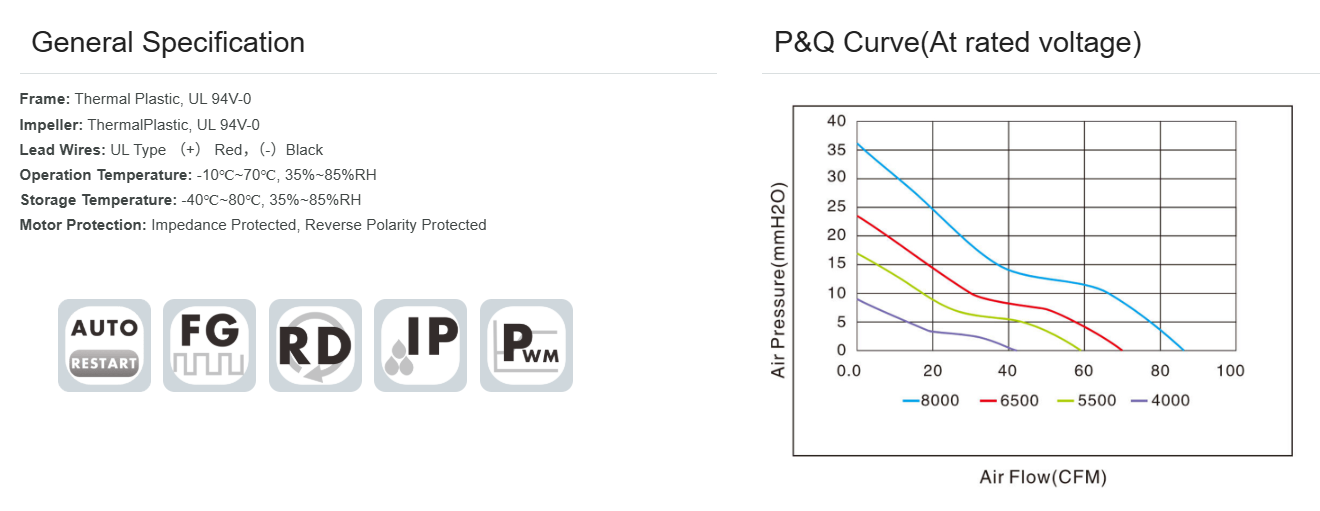

This DC fan offers impressive airflow capabilities, with maximum speeds reaching as high as 8000 RPM. Such a fast rotational speed facilitates a peak airflow of up to 88.49 CFM and a static pressure of 1.41 inchH₂O in its high-performance configuration. Lower RPM models deliver quieter operation, with airflow starting at 43.24 CFM, which is still sufficient for moderate cooling needs while keeping the acoustic profile low. The equilibrium between air displacement and pressure ensures this fan can effectively cool dense electronic parts and larger open enclosures.

Intelligent Circuitry and Advanced Features

The motor system of this fan is protected by features like impedance and reverse polarity safeguards, which shield the internal components from damage caused by accidental wiring errors or system overloads. Furthermore, the fan supports enhanced functionalities such as:

• Auto Restart: Automatically resumes functioning after a power loss.

• Frequency Generator (FG): Outputs a tachometer signal to track fan speed in real time.

• Rotation Detection (RD): Issues an alert if fan rotation ceases or slows unexpectedly.

• Ingress Protection (IP): Provides enhanced resistance against dust and moisture.

• Pulse Width Modulation (PWM): Enables speed adjustments via an external controller to lower power use and noise.

These sophisticated capabilities make the DC fan particularly well-suited for integration into smart systems that require real-time diagnostics and speed management.

Thermal & Environmental Resilience

This fan is certified for operation in environments from -10°C to +70°C, with a humidity tolerance of 35% to 85% RH. Storage temperatures can range from -40°C to +80°C, ensuring safe transport and storage life before use. This durability allows for its deployment in diverse settings, from climate-controlled offices to rugged industrial locations where temperature fluctuations are common.

Noise Optimization for Acoustic Comfort

While high performance is crucial, acoustic comfort is just as important in noise-sensitive places like offices, networking closets, or medical facilities. This fan is available in several configurations with noise levels as low as 42 dBA in low-speed models, peaking at 64 dBA in high-speed versions. Users can choose a model based on their required airflow-to-noise ratio, balancing cooling demands with the appropriate acoustic level for their application.

Use Cases and Applications

Its versatile design, broad voltage support, and high-performance cooling make this 80x80x32mm DC fan an ideal component for many industries:

• Telecommunications: Cooling for base stations, signal routers, and network switches.

• Industrial Equipment: Control panels, power inverters, and battery enclosures.

• Computer Systems: CPU/GPU cooling, PSU units, and server racks.

• Home Appliances: Air purifiers, HVAC modules, and automation systems.

• Medical Instruments: Diagnostic and imaging equipment with strict cooling requirements.

• Automotive Electronics: EV charging stations, battery cooling, and infotainment systems.

Conclusion: Performance Meets Durability

The 80x80x32mm DC Fan, with its ball bearings and 12-48V compatibility, embodies an excellent fusion of engineering precision, energy efficiency, and mechanical resilience. Possessing advanced safety features, smart monitoring, and high airflow capacity in a compact package, it offers a complete solution for managing heat in both critical infrastructure and consumer-grade devices. Whether the priority is ultra-quiet functioning, robust industrial strength, or high-performance thermal regulation, this fan series provides the flexibility and reliability essential for today's electronic systems.
