Advanced Cooling in a Compact Design: The 60x60x10mm Brushless DC Fan

In the constantly advancing world of electronics, where components are becoming more powerful and smaller, proficient thermal regulation is no longer just a recommendation but an absolute necessity. The 60x60x10mm brushless DC fan emerges as a superior solution, meticulously designed to provide powerful and dependable cooling performance for a wide spectrum of applications. This fan is crafted to ensure optimal operating temperatures, thereby improving system longevity and stability from vibrant data centers to sophisticated consumer devices. Its compact size, combined with a range of advanced features and sturdy construction, makes it an essential component for any modern electronic assembly.

Precision Craftsmanship and Resilient Construction

Central to this fan's durability and long-lasting performance is its high-grade dual ball bearing system. In contrast to conventional sleeve bearings, which can be prone to degradation and are often limited by mounting orientation, ball bearings provide substantially lower friction and superior resilience. This design allows the fan to operate continuously for prolonged periods, with some versions rated for 50,000 hours or more of uninterrupted service. The use of ball bearings also means the fan can be installed in any position—horizontally, vertically, or at an angle—without affecting its performance or lifespan, a critical advantage in custom and space-limited enclosures.

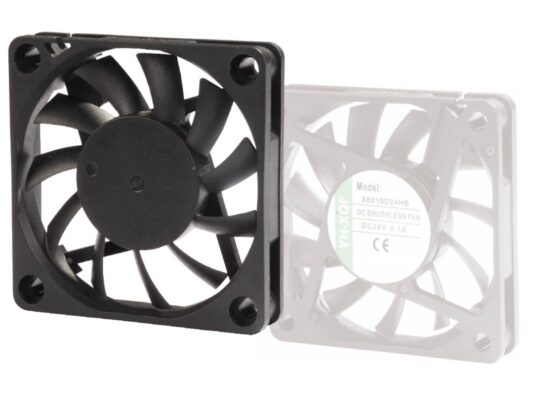

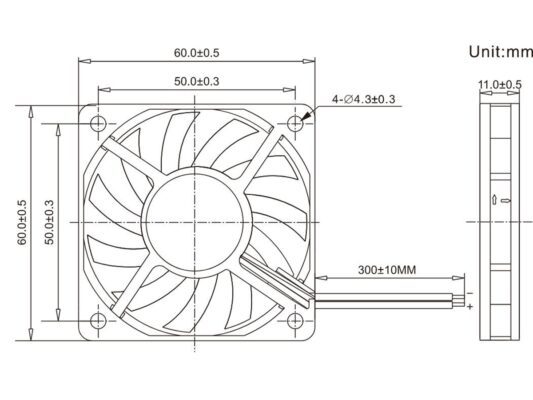

The fan's frame and nine-blade impeller are constructed from premium thermal plastic that adheres to the UL 94V-0 flammability standard. This is the highest rating for plastics, signifying that the material will extinguish itself within ten seconds after a flame source is removed and will not produce flaming drips. This fire-retardant property is a crucial safety element, especially in applications where the fan is in close proximity to heat-generating parts and electrical currents. The physical dimensions of the fan are precisely controlled at 60x60mm with a slim 10mm profile, and its mounting holes are strategically placed in a 50x50mm square pattern, ensuring easy integration.

Deconstructing Performance: Airflow, Static Pressure, and Efficiency

The essential function of any fan is to displace air, and this model excels in this capacity. The technical data reveals a range of performance capabilities designed for various operational needs. Depending on the specific model, the fan can achieve rated speeds from a quiet 3000 RPM up to a powerful 8000 RPM. This high rotational velocity translates directly into impressive airflow, with available models offering maximum airflow from approximately 10.34 CFM to a substantial 16.92 CFM.

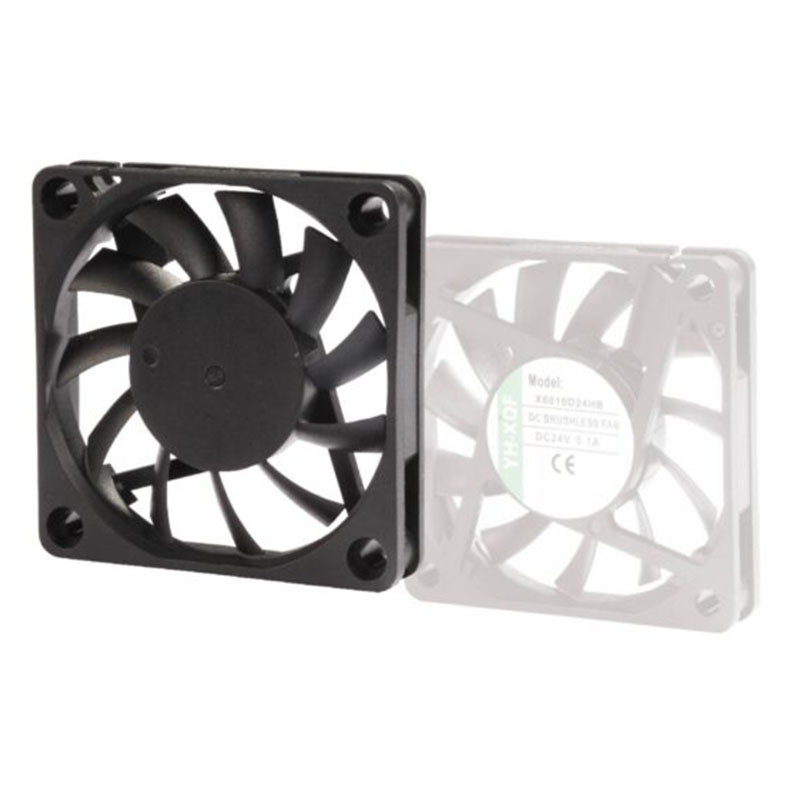

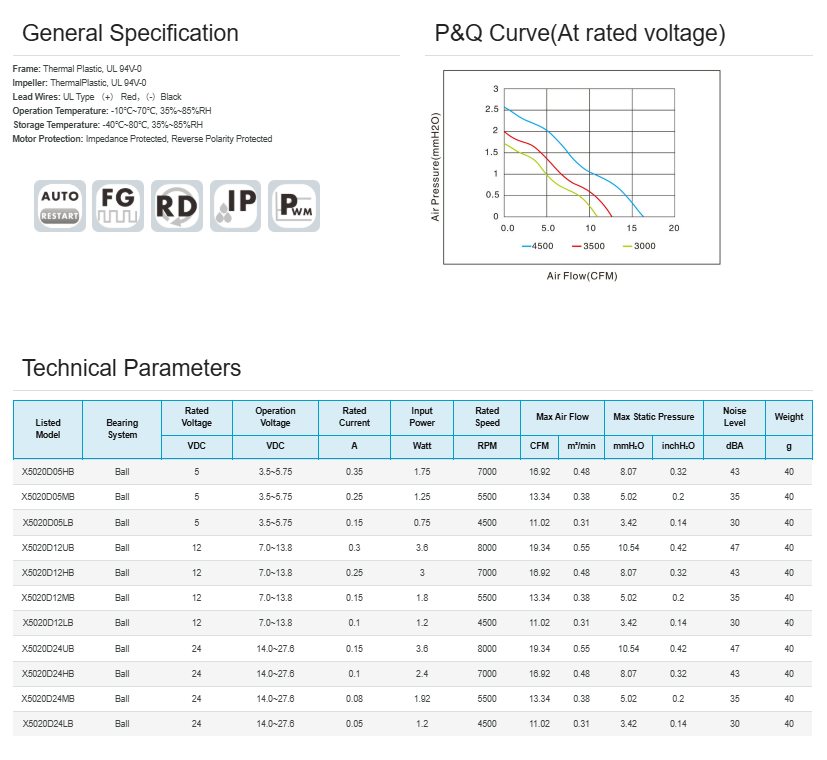

However, raw airflow is only one aspect of performance. In many practical applications, the fan must push air through obstacles such as heat sinks, filters, or densely packed components. This is where static pressure is of utmost importance. This fan series boasts maximum static pressure ratings from 0.14 to 0.55 inchH₂O, demonstrating its ability to maintain effective cooling even in high-impedance environments. The relationship between airflow and static pressure is graphically detailed in the P&Q (Pressure-Airflow) curve, which allows engineers to determine the fan's actual operating point within a specific system.

Electrical Characteristics and Protective Systems

This DC fan is available in multiple voltage ratings—5V, 12V, and 24V—making it versatile for a broad array of electronic systems. To safeguard both the fan and the host device, the motor includes several protection mechanisms. It is impedance protected, a design where the motor windings have a higher impedance to limit current and prevent overheating if the blades become locked. It also features reverse polarity protection, which prevents damage to the fan's electronics if the power leads are accidentally connected incorrectly. The fan also comes with an "Auto Restart" function, which will cut power to the motor if the blades are obstructed and attempt to restart it periodically.

Advanced Control and Monitoring Capabilities

For applications that require more sophisticated control and system monitoring, this fan series offers several advanced signal options:

• FG (Frequency Generator): This output signal provides real-time feedback on the fan's rotational speed, allowing a system controller to monitor performance accurately.

• RD (Rotation Detector): The RD signal is a simpler alarm function that indicates whether the fan is spinning or has stopped, enabling the system to trigger an alert or take corrective action.

• PWM (Pulse Width Modulation): The PWM feature allows for precise digital control over the fan's speed. By modulating the duty cycle of a signal, the motor speed can be finely adjusted, enabling dynamic cooling that optimizes both performance and acoustics.

A Versatile Solution for Modern Electronics

In conclusion, this 60x60x10mm brushless DC fan is a highly adaptable and reliable cooling solution. Its sturdy ball bearing construction ensures a long operational life across a wide temperature range (-10°C to +70°C) and in any mounting position. The combination of high airflow and strong static pressure makes it effective in both open and restrictive settings. With multiple voltage options, integrated motor protection, and advanced control features like PWM and speed sensing, this fan can be seamlessly integrated into a myriad of applications, from network switches and servers to medical equipment and industrial controls, ensuring the integrity and longevity of the entire system.
