Introducing the 50x50x20mm DC Fan

In the complex domain of contemporary electronics, where processing capabilities and component density are perpetually increasing, proficient thermal regulation is a cornerstone of system reliability and longevity. The heat generated by hard-working components can act as a silent adversary, degrading performance, shortening operational lifespans, and creating a risk of complete system failure.

To counter this persistent thermal challenge, engineers and system builders require cooling solutions that are not only potent but also compact, efficient, and exceptionally dependable. The 50x50x20mm DC Fan, designed for 12V operation and equipped with a resilient ball bearing system, is a superior solution created to meet and surpass these essential demands.

Sturdy Design and High-Quality Construction

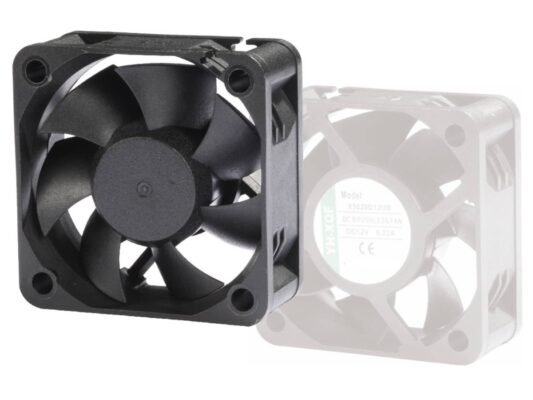

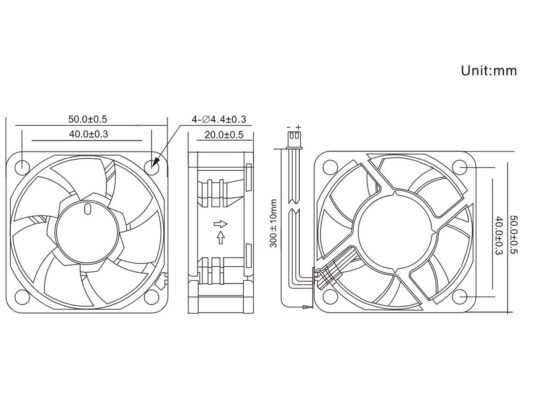

At a glance, this fan exemplifies compact and efficient engineering. Its frame dimensions of 50mm by 50mm, with a 20mm depth, make it a perfect choice for a diverse range of applications, especially where space is limited. The fan utilizes a standard 4-hole mounting pattern with 40mm by 40mm spacing, ensuring straightforward integration into pre-existing layouts, whether on a processor heatsink, inside a small electronics enclosure, or as part of a larger ventilation network.

The construction of this fan speaks volumes about its intended durability and safety. Both its frame and the seven-bladed impeller are made from high-grade Thermoplastic PBT (Polybutylene terephthalate). This material was selected for its remarkable mechanical strength, rigidity, and resistance to heat and chemicals. Crucially, it holds a UL94V-0 flammability rating, the highest classification for plastics, which means the material will cease burning within ten seconds after an ignition source is removed. This provides a vital safety layer for any electronic apparatus.

The Ball Bearing Advantage: Longevity and Dependability

At the very heart of this fan's design is its dual ball bearing system, a feature that distinguishes it from fans that use conventional sleeve bearings. The ball bearing mechanism is engineered for a significantly extended operational life and is capable of withstanding higher operating temperatures without any performance degradation. This is achieved through diminished friction and enhanced blade stability. The result is a fan perfectly suited for continuous, 24/7 operation in demanding environments like servers, networking equipment, and industrial control systems.

Optimized Electrical and Performance Metrics

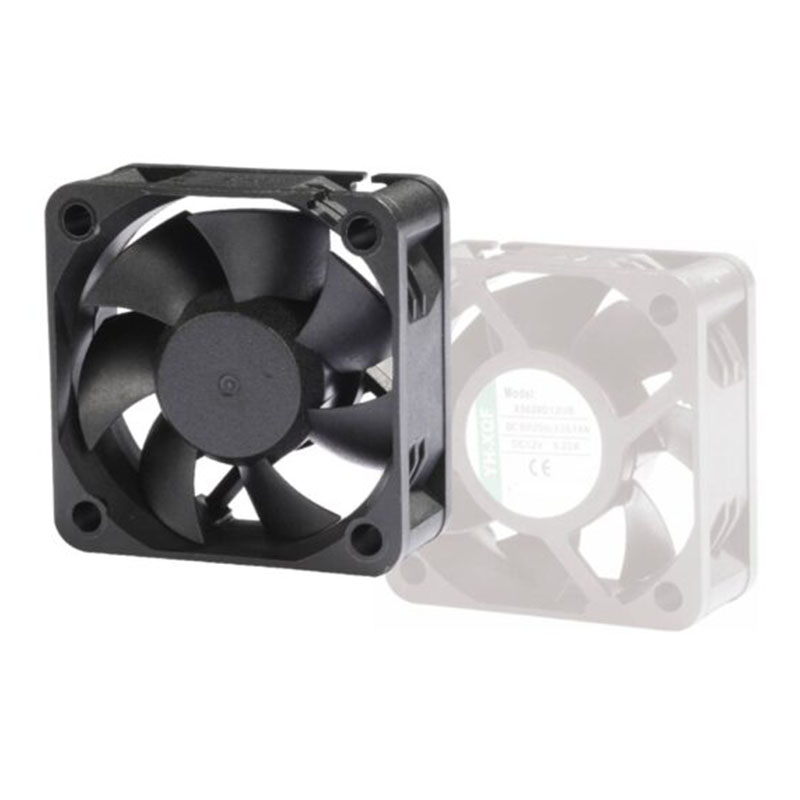

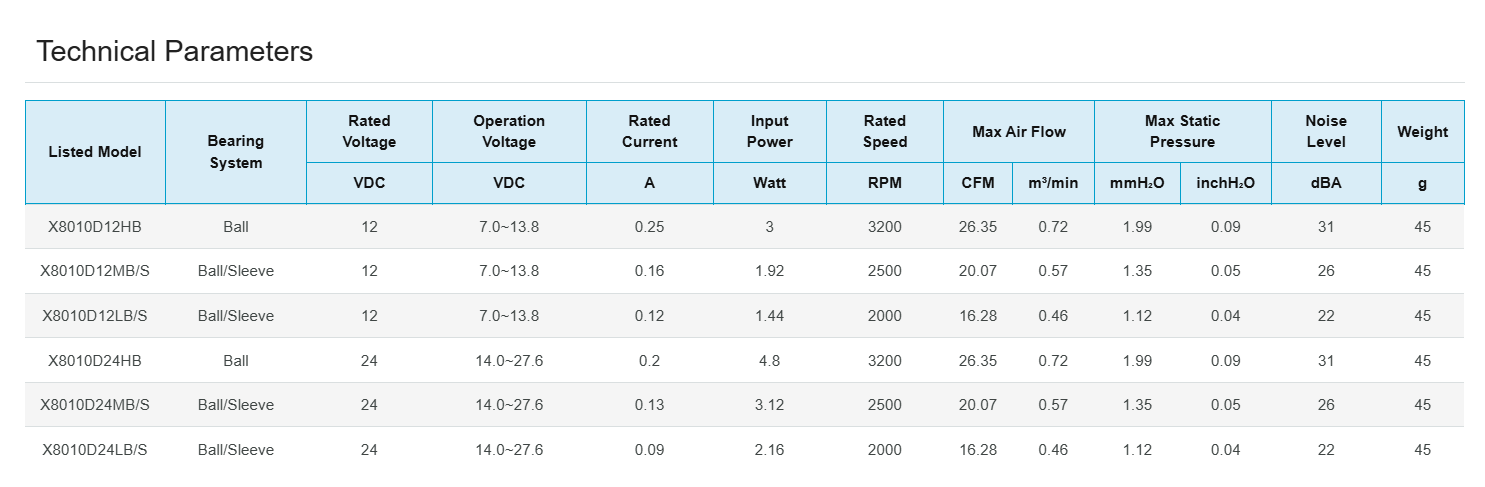

This fan is designed to run on a standard 12V DC power source, making it compatible with a vast array of electronic systems. The specified operational voltage range for the 12V models, from 7.0 to 13.8 volts, provides excellent functional flexibility and guarantees stable performance even when the power source has minor fluctuations. The product line contains multiple versions, each tailored for different performance requirements, from prioritizing silent operation to delivering maximum cooling potential.

The performance of a fan is measured by its ability to move air (airflow) and its capacity to push that air against obstruction (static pressure). This 50mm fan excels in both respects. Depending on the specific 12V model, it can achieve rotational speeds from a quiet 4500 RPM to an impressive 8000 RPM. This translates into excellent airflow figures, reaching up to 19.34 CFM (Cubic Feet per Minute). Such airflow is vital for effectively evacuating hot air from an enclosure and introducing cool, ambient air. Simultaneously, the fan can generate considerable static pressure, with high-performance models reaching up to 0.42 inchH₂O. This high static pressure is essential in applications where airflow is restricted by obstacles such as dense heatsink fins or tightly packed internal components.

Understanding the P&Q Performance Curve

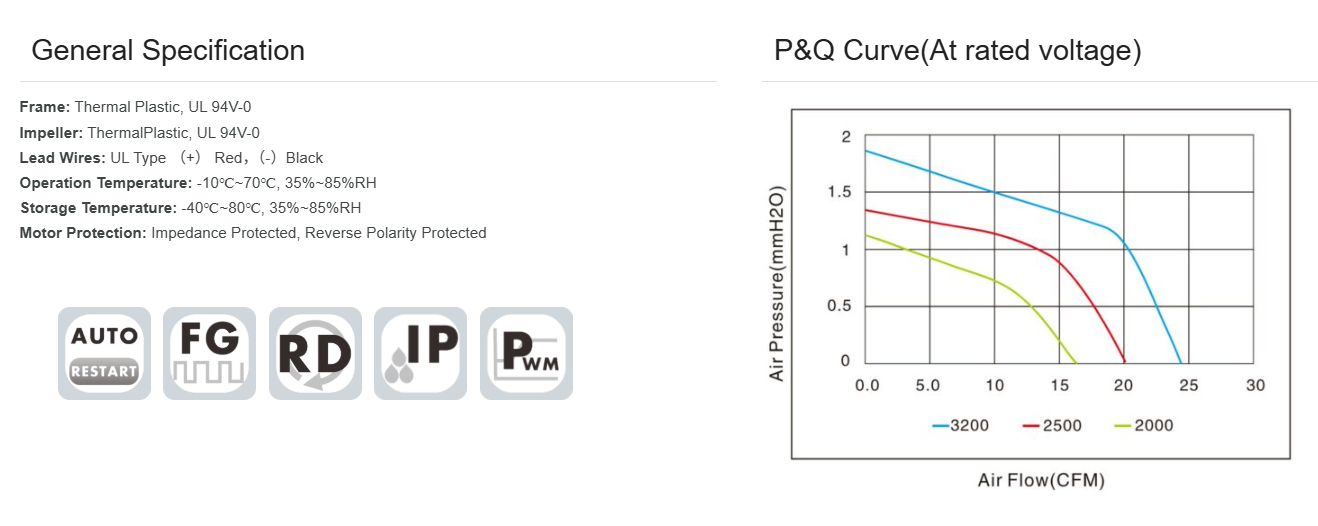

The included P&Q (Pressure vs. Airflow) curve is an indispensable engineering tool that visualizes the fan's performance characteristics. It illustrates the inverse relationship between static pressure and airflow. A system designer can calculate the impedance of their specific system and plot it on this curve to determine the fan's precise operating point, ensuring the chosen model is a perfect match for the application's needs.

Advanced Capabilities for Modern Solutions

Beyond its core mechanical and electrical performance, this fan integrates features vital for modern, intelligent systems. Standard motor protection includes both impedance and reverse polarity safeguards. Impedance protection stops the motor from burning out if the blades get blocked, while reverse polarity protection shields the fan's electronics from damage if power is connected incorrectly.

Furthermore, this fan platform supports a range of advanced control and monitoring functions:

• Auto Restart: A critical reliability feature ensuring that if the rotor ever locks, the motor will automatically attempt to restart, restoring cooling without manual intervention.

• Frequency Generator (FG) Signal: This is a tachometer output wire that provides a pulse signal corresponding to the fan's rotational speed, allowing a system to monitor its operation.

• Rotation Detector (RD) Signal: This is an alarm function. If the fan stalls, this signal will change its state, immediately notifying the system of a cooling failure so it can take protective measures.

• PWM (Pulse Width Modulation) Control: Many modern systems require dynamic cooling. The 4-wire PWM version of this fan allows for precise speed control, enabling a system to adjust the fan's speed in real-time based on temperature readings.

In conclusion, the 50x50x20mm 12V DC Fan is more than a simple cooling component. It represents a highly engineered, feature-rich solution for sophisticated thermal management. Its robust and safe construction, long-life ball bearing system, and excellent balance of high airflow and static pressure make it a versatile choice for countless applications, from cooling high-performance computers to ensuring the reliability of critical networking and industrial hardware.
