A Comprehensive Cooling Solution: The High-Performance 12V DC Fan

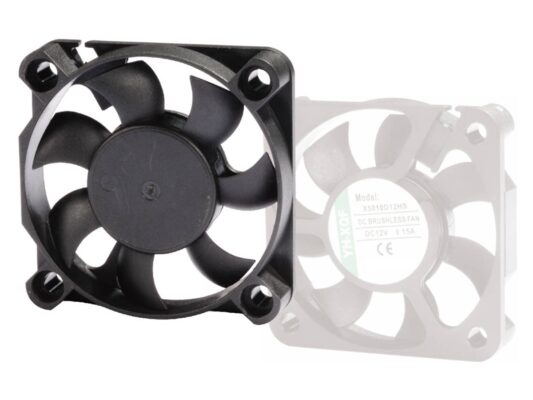

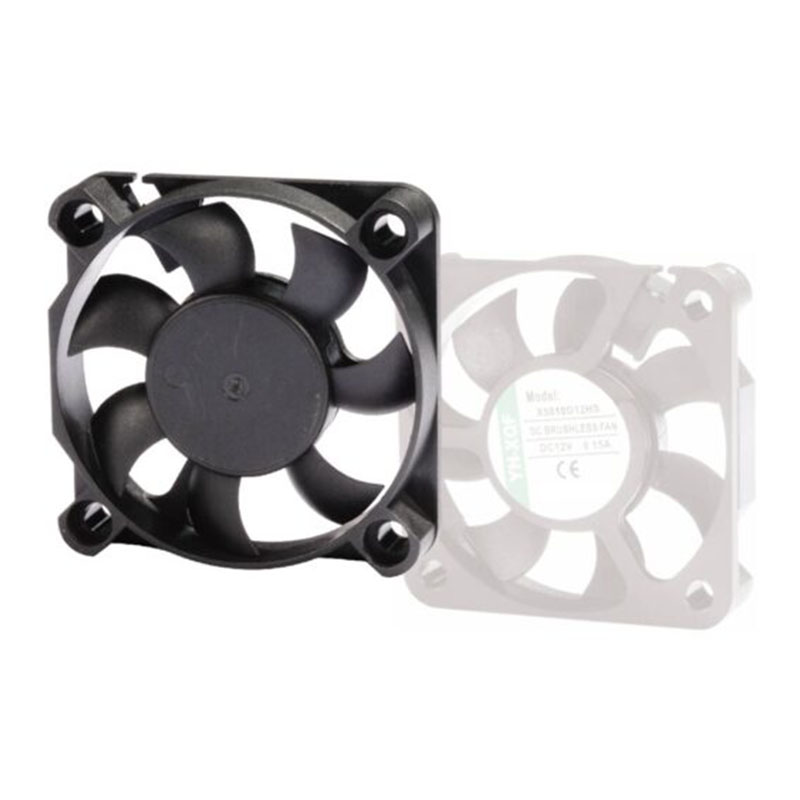

In the realm of contemporary electronics, proficient thermal regulation is not merely a suggestion; it is a fundamental requirement for guaranteeing device longevity, dependability, and peak performance. The 50x50x10.5mm DC fan stands out as a premier solution, meticulously crafted to satisfy the rigorous cooling demands of compact and power-dense applications. Designed for engineers, tech enthusiasts, and manufacturers alike, this fan merges innovative motor technology, superior bearing systems, and sturdy construction to deliver exceptional airflow, resilience, and quiet operation.

The Core of Efficiency: The Brushless DC Motor

At the center of this DC fan lies a highly sophisticated Brushless DC (BLDC) motor, a pivotal feature that distinguishes it from conventional cooling solutions. Unlike older brushed motors that rely on physical contact points to facilitate rotation, BLDC motors utilize electronic commutation. This modern approach eliminates the friction and wear associated with brushes, leading to a host of significant benefits. The most notable advantages are a substantially increased operational lifespan, superior energy efficiency, and considerably quieter performance. By minimizing energy loss to friction and heat, the BLDC motor ensures more power is converted directly into rotational force.

Engineered for Durability: The Dual Ball Bearing System

The true measure of a fan's reliability over time depends on its bearing system, and this model is equipped with a high-grade dual ball bearing system for maximum endurance. Ball bearings are significantly superior to standard sleeve bearings, especially in demanding applications. A key benefit of the ball bearing design is its flexibility in mounting orientation. It performs equally well whether installed vertically, horizontally, or at any angle, without the risk of premature wear or lubricant leakage. This makes it a reliable "set-and-forget" solution for equipment that operates around the clock or is located in hard-to-access areas.

Performance Deep Dive: Understanding Airflow and Static Pressure

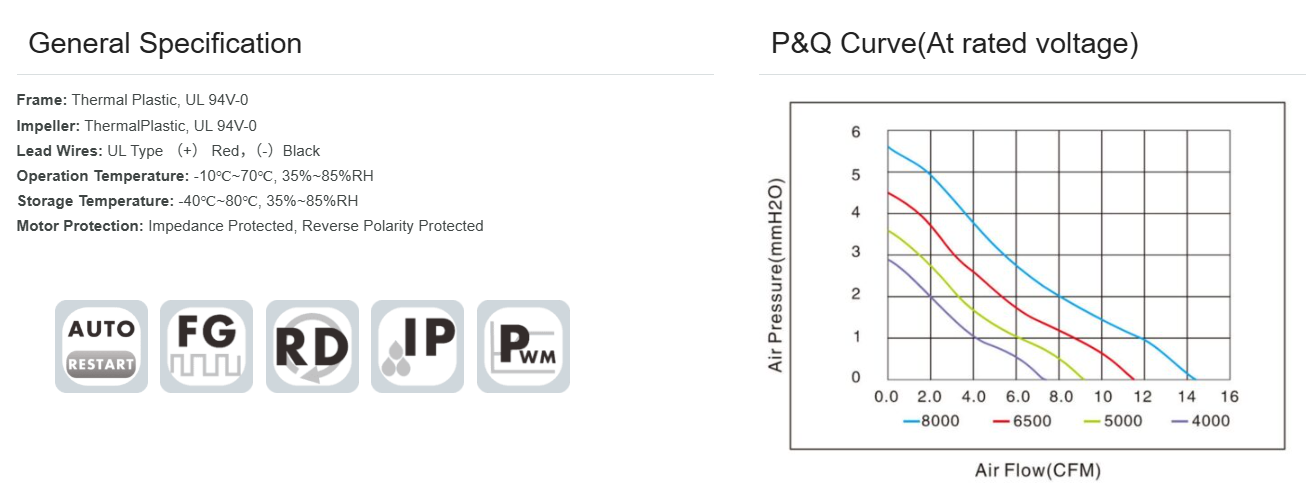

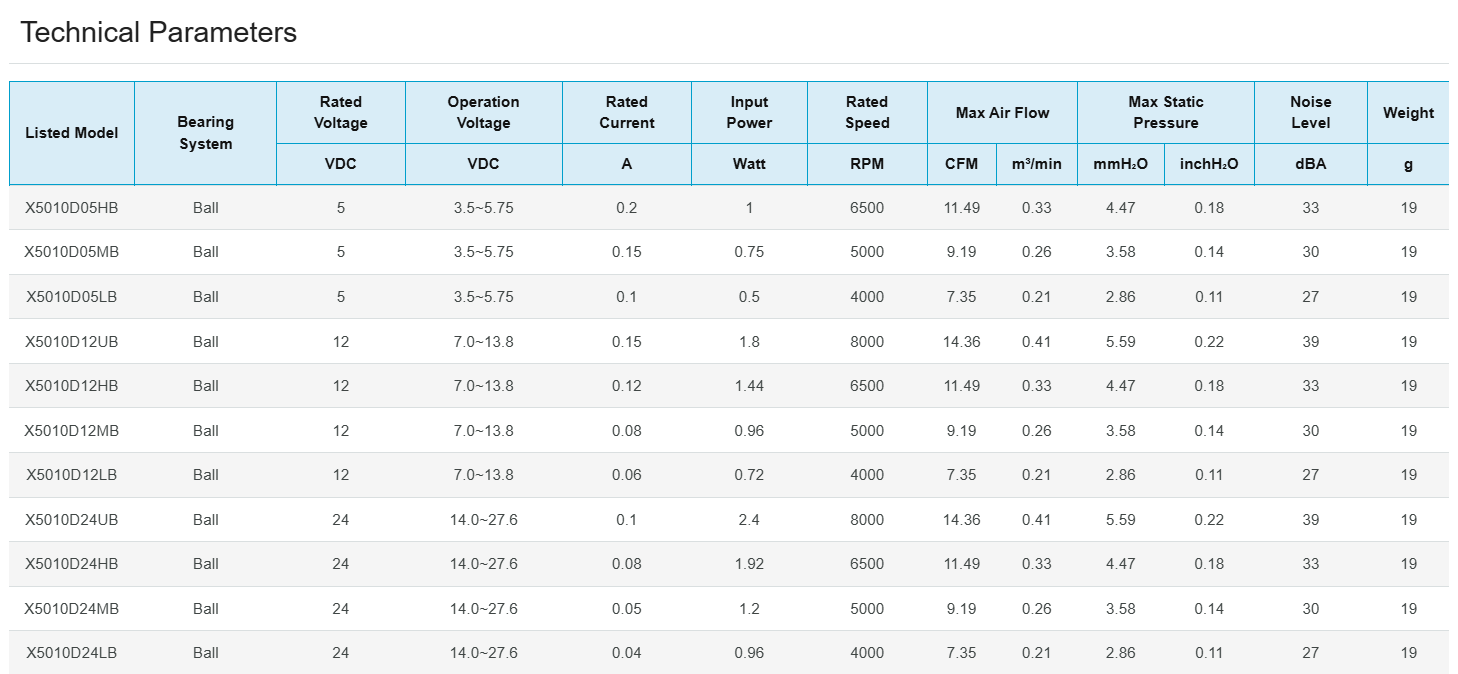

Effective cooling is a balance between two critical performance metrics: airflow, measured in Cubic Feet per Minute (CFM), and static pressure, measured in inches of water (inchH₂O). This fan is available in several performance models, with options delivering up to a powerful 14.36 CFM and generating a static pressure of up to 0.22 inchH₂O. The relationship between these two factors is highlighted by the fan's P-Q (Pressure-Airflow) performance curve. The robust performance envelope of this fan ensures it can maintain effective cooling even in high-impedance environments, making it extremely versatile for a variety of system designs.

Robust Construction and Integrated Safety Features

Durability and safety are paramount in the design of any electronic component. The frame and nine-blade impeller of this fan are created from high-quality thermal plastic that meets the stringent UL 94V-0 flammability standard. This is the highest rating for plastics, signifying that the material will self-extinguish within ten seconds of a flame being removed. Further enhancing its reliability are two crucial built-in motor protection mechanisms: Impedance Protection and Reverse Polarity Protection. Impedance protection prevents the motor from overheating if the fan blades become blocked, while reverse polarity protection safeguards the fan's sensitive internal electronics from damage if the power wires are accidentally connected incorrectly.

Electrical Characteristics and Ease of Installation

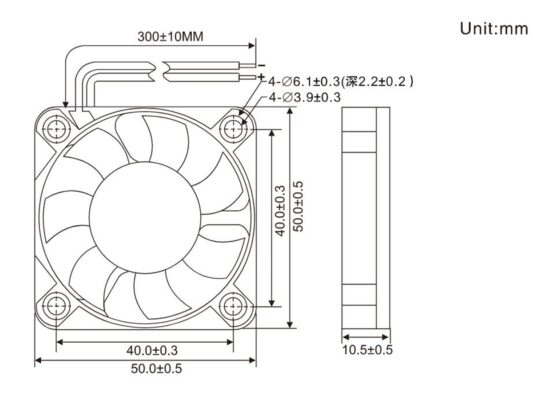

Engineered for seamless integration, this fan operates at a rated voltage of 12V DC but is designed to function reliably across a broad operating voltage range of 7.0 V to 13.8 V. The fan features a standard two-wire lead, generously measuring 300mm in length. This provides ample flexibility for routing and connecting the fan within various chassis sizes. With a lightweight design at just 19 grams and a standard 50mm frame with 40mm mounting holes, it is a drop-in solution for a wide range of applications.

Versatile Applications

The compact dimensions, robust performance, and long-life features of this 12V DC fan make it an ideal choice for a wide selection of cooling applications, including:

• 3D Printers: Cooling hotends, extruder motors, and control boards.

• Single-Board Computers: Proactively cooling processors on devices like the Raspberry Pi.

• Network and Storage Instruments: Providing crucial airflow for routers, switches, and NAS units.

• Compact Form Factor (SFF) Computers: Removing heat from constrained computer cases.

• Audio/Video and Security Equipment: Cooling amplifiers, receivers, and DVRs.

• Custom Electronics Projects: Offering a reliable and easy-to-integrate cooling solution for numerous DIY projects.

In conclusion, this 50mm fan is more than just a component; it is a comprehensive thermal management solution. By combining the efficiency and longevity of a brushless DC motor with the unwavering durability of a dual ball bearing system and a suite of robust safety features, it stands as an exemplary choice for any application where performance and reliability are non-negotiable.
