A Comprehensive Guide to the 40x40x20mm DC Fan

In the realm of contemporary electronics and machinery, dependable thermal control is no longer a mere suggestion; it represents a fundamental necessity for ensuring integrity, performance, and a long operational life. As components grow more powerful and compact, the challenge of managing the heat they produce becomes increasingly significant.

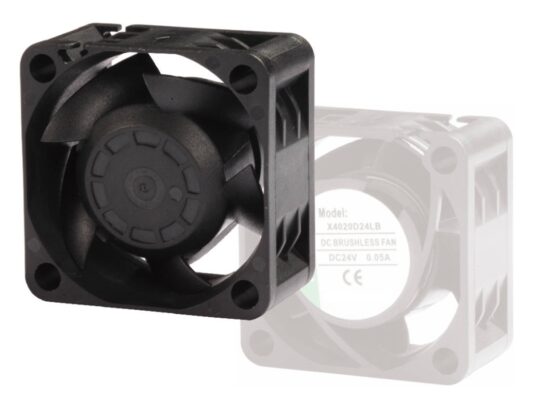

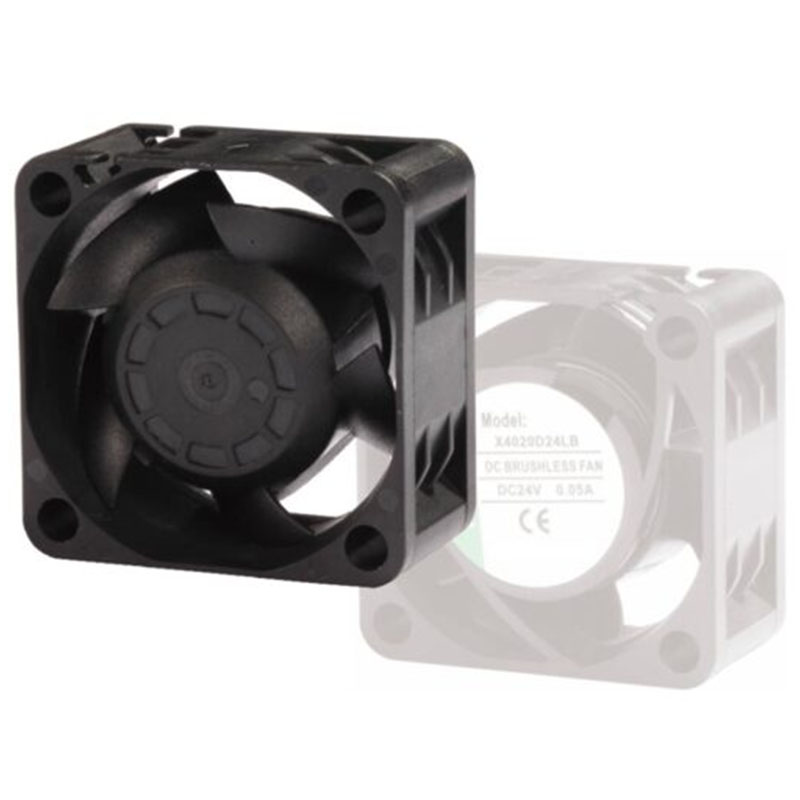

This 40x40x20mm DC Fan is engineered to tackle this issue directly, offering an efficient, reliable, and adaptable cooling solution within a compact form factor. Designed for a diverse array of applications, from high-density server racks to intricate 3D printers, this fan merges sturdy construction, advanced motor technology, and a range of customizable features to deliver exceptional performance where it is needed most.

Core Design and Airflow Principles

At its essence, this is an axial-flow fan, a design celebrated for its efficiency in moving large volumes of air in a direction parallel to the motor's axis. As depicted in the technical diagrams, air is drawn in from one side and expelled straight out the other, creating a consistent and directed airstream.

This design is perfect for case and enclosure ventilation, where the primary aim is to exchange hot internal air with cooler ambient air, or for cooling specific components like heatsinks placed directly in the airflow path. With dimensions of only 40mm by 40mm and a depth of 20mm, it fits comfortably in space-limited environments where larger fans are not practical, without a significant compromise in cooling capacity.

Superior Construction and Durability

Reliability starts with high-quality materials and construction. The frame of this DC fan is injection-molded from top-grade Thermal Plastic that conforms to the UL 94V-0 flammability standard. This rating is a critical safety feature in any electronic device, signifying that the material is self-extinguishing and will stop burning within ten seconds after an ignition source is removed, without producing flaming drips.

This ensures the fan will not contribute to the spread of a fire in the event of a catastrophic system failure. The cornerstone of the fan's mechanical longevity is its dual ball bearing system. Unlike sleeve bearings, a ball bearing system offers a robust and durable solution, providing lower friction, the ability to withstand higher operating temperatures, and a significantly longer operational lifespan.

Advanced Brushless DC Motor Technology

This fan is powered by an innovative brushless DC (BLDC) motor, which provides numerous advantages over traditional brushed motors. The absence of physical brushes eliminates the primary source of wear and particle generation, resulting in a much longer motor life and cleaner operation. Electronically commutated, the BLDC motor delivers higher efficiency, converting more electrical power into rotational force and wasting less as heat. Integrated into the motor's electronics are crucial protection features.

Reverse Polarity Protection safeguards the fan from damage if the power leads are accidentally connected incorrectly. Additionally, Impedance Protection and an Auto-Restart feature provide a robust defense against motor stalls.

Unmatched Performance Versatility

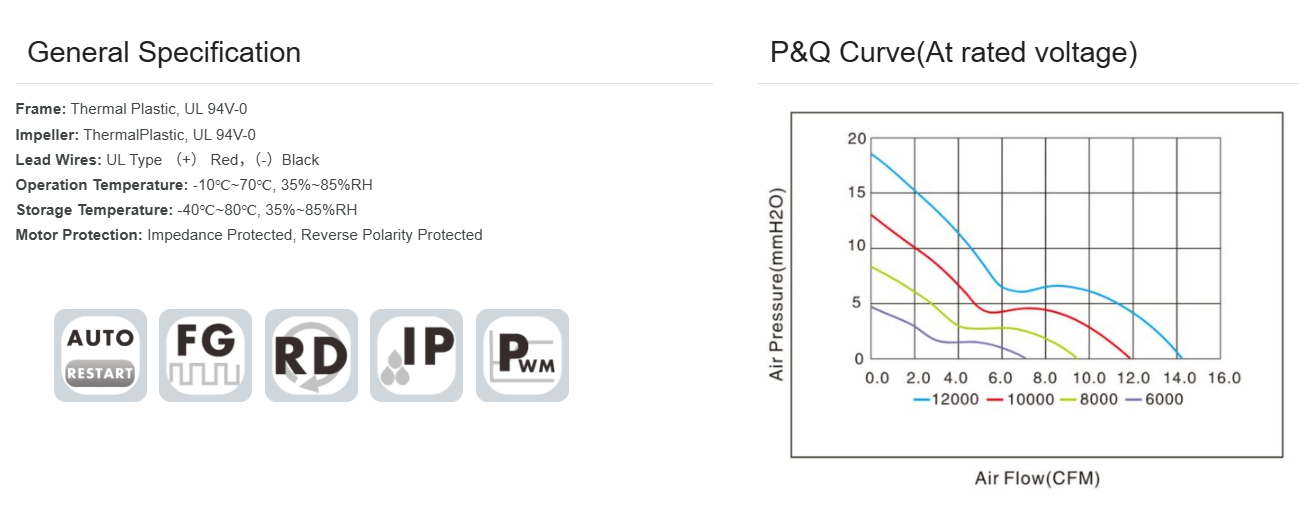

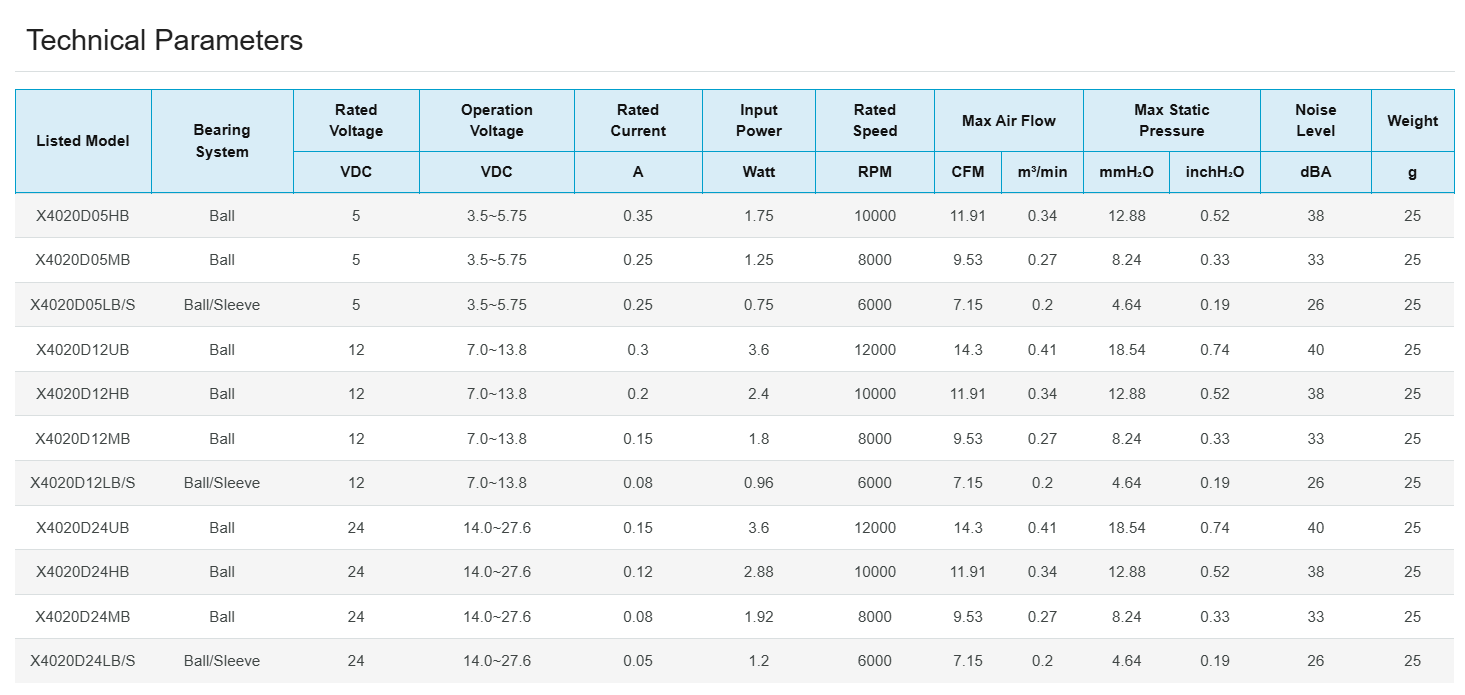

A key strength of this fan series is the broad spectrum of performance options available. By examining the technical specifications, a user can select the perfect balance of airflow, pressure, power consumption, and acoustics for their specific application. The fan is available in several DC voltage ratings, including 5V, 12V, and 24V, catering to the most common power standards in electronics. Within each voltage class, multiple speed options are offered, ranging from a quiet 6,000 RPM to a high-performance 12,000 RPM. Variants spinning at 12,000 RPM can move up to 14.3 CFM of air and generate a maximum static pressure of 0.41 inchH₂O.

Intelligent Control and Monitoring

Beyond its raw performance, this fan can be equipped with advanced features for intelligent system integration and monitoring:

• PWM Speed Control: The Pulse Width Modulation (PWM) option provides the ultimate in dynamic control. By supplying a PWM signal, the fan's speed can be precisely adjusted in real-time.

• FG (Frequency Generator) Signal: For mission-critical systems, the FG output provides a tachometer signal. This signal outputs a square wave whose frequency is directly proportional to the fan's rotational speed.

• RD (Rotation Detector) Signal: The RD, or alarm signal, provides a simpler go/no-go monitoring solution. This signal changes its state if the fan rotor stops for any reason, immediately alerting the system to a cooling failure.

A World of Applications

The combination of compact size, robust construction, and versatile performance makes this 40x40x20mm axial fan a suitable choice for an exceptionally diverse range of applications, including:

• 3D Printers & CNC Machines: Cooling extruder hotends, stepper motors, and control boards.

• Servers and Networking Equipment: Providing spot cooling for hot components in switches, routers, and server blades.

• PC and Component Cooling: Cooling CPUs, chipsets, and small Small Form Factor (SFF) builds.

• Power Supplies: Ventilating compact AC-DC and DC-DC power units.

• LED Lighting: Proactively cooling high-intensity LED drivers and components.

• Embedded Systems: Ensuring the reliability of single-board computers and other embedded controllers.

• DIY Electronics Projects: A reliable and effective cooling component for any custom project.

In conclusion, this 40x40x20mm DC Fan is more than just a component; it is a comprehensive cooling solution. It delivers on every front, from the foundational durability of its UL-rated materials and ball bearing system to the advanced capabilities of its brushless motor, PWM control, and monitoring features. It provides engineers and designers with a toolkit of options to perfectly match cooling performance to the unique needs of their application, ensuring system stability, reliability, and longevity in a compact, reliable, and intelligent package.
