Unlocking Superior Cooling: A Deep Dive into the 12V Brushless DC Fan (40x40x10mm)

In the dynamic world of electronics, where components continuously shrink in size while simultaneously growing in power, effective thermal management is no longer a luxury—it has become a fundamental requirement. The reliability, longevity, and peak functionality of sensitive electronic parts are intrinsically tied to maintaining an optimal operational temperature. The compact and highly efficient 12V Brushless DC fan answers this critical need. Measuring a mere 40x40x10mm, this cooling solution is engineered to provide exceptional airflow and static pressure in a remarkably small footprint, making it a perfect choice for numerous applications where space is scarce and performance is non-negotiable.

Crafted for Precision and Durability

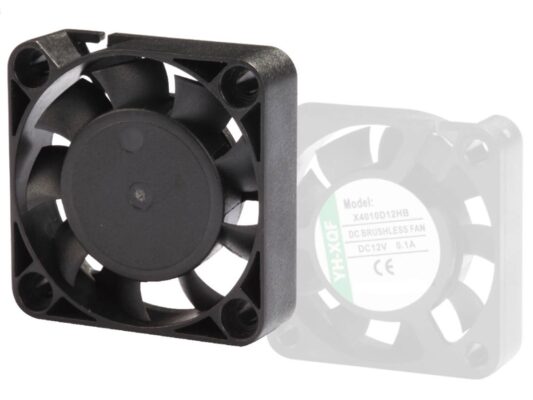

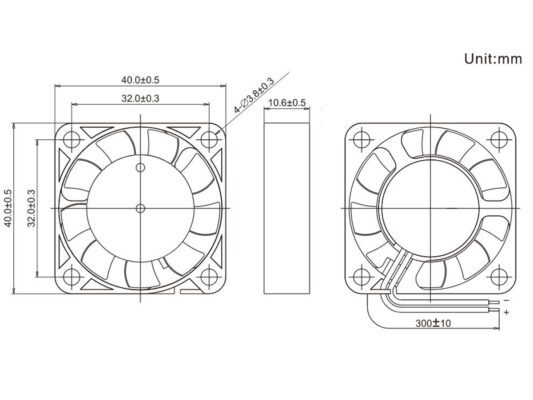

A commitment to quality and resilience lies at the core of this DC fan's design. The frame and impeller are made from high-grade thermal plastic that adheres to the UL 94V-0 flammability standard, ensuring a high degree of safety and heat resistance. This sturdy construction enables the fan to operate reliably across a broad temperature spectrum, with a standard operational range of -10°C to 70°C. Its physical dimensions are meticulously engineered for seamless integration, featuring a square frame of 40mm by 40mm and a slim 10.6mm profile. The mounting holes are strategically located in a standard 32mm square pattern, guaranteeing compatibility with a wide array of existing hardware.

A Closer Look at Performance: The Technical Specifications

The true measure of any cooling fan lies within its performance data, and this 12V model is designed to deliver impressive results. It operates on a rated voltage of 12 VDC and is versatile enough to function within an operational range of 7.0 to 13.8V, offering flexibility across various power supply scenarios.

This DC fan comes in several performance tiers to accommodate specific cooling demands:

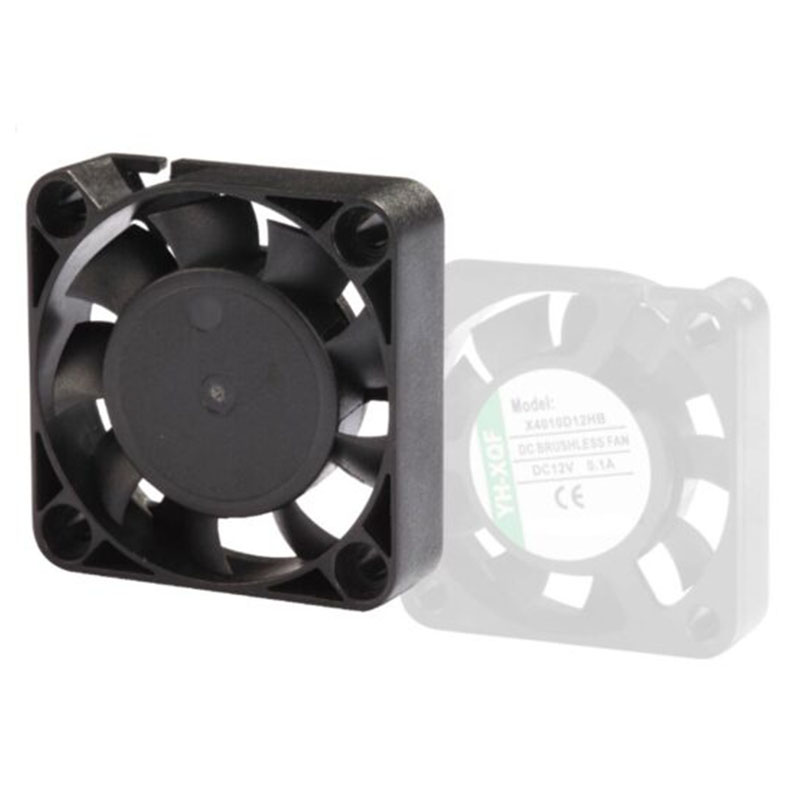

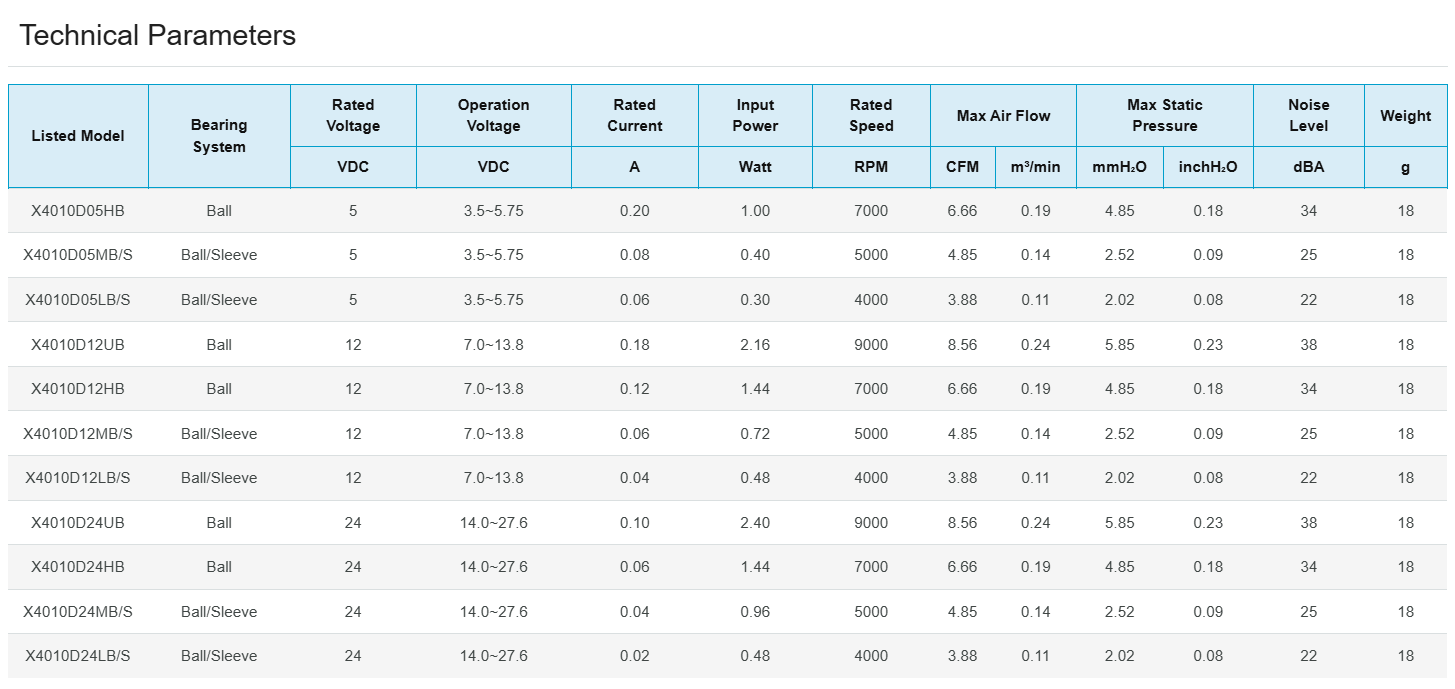

• High-Speed Model: For applications that demand maximum cooling, the high-speed variant runs at a brisk 9000 RPM. This version produces a robust maximum airflow of 8.56 Cubic Feet per Minute (CFM) and generates a substantial maximum static pressure of 5.85 mmH₂O, making it highly effective at pushing air through confined spaces. The trade-off for this capability is an acoustic output of 38 dBA.

• Standard-Speed Version: Striking a balance between strong performance and quieter operation, the standard-speed model operates at 7000 RPM. It provides a solid maximum airflow of 6.66 CFM and a static pressure of 4.85 mmH₂O, with a more moderate sound level of 34 dBA.

• Low-Speed Version: When acoustics are the primary consideration, the low-speed option provides efficient cooling with minimal noise. Running at 5000 RPM, this model generates a maximum airflow of 4.85 CFM while maintaining a quiet sound profile of 25 dBA.

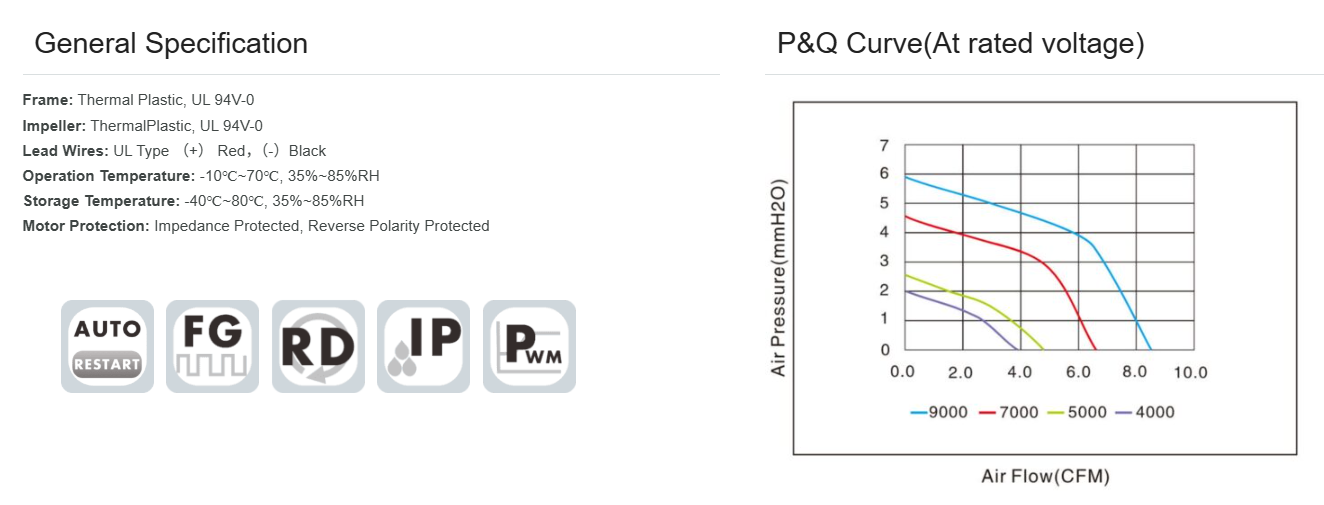

The relationship between airflow and static pressure is graphically illustrated in the provided P&Q (Pressure-Airflow) curve. This crucial chart demonstrates that as resistance to airflow increases, the resulting airflow decreases, allowing engineers to precisely predict the fan's real-world performance.

Advanced Features for Enhanced Reliability

Beyond its raw performance figures, this brushless DC fan incorporates a suite of sophisticated features designed to ensure long-term, trouble-free operation. The motor is impedance protected, a critical safety measure that guards the motor from damage if the blades become locked. It also includes reverse polarity protection, which prevents damage to the fan's electronics from incorrect wiring. An "Auto Restart" function is another vital reliability feature. Should the fan's rotation be obstructed, the motor will automatically shut down and then attempt to restart periodically once the obstruction is gone.

To meet the diverse needs of modern electronics, the fan is offered with two key bearing systems:

• Ball Bearing System: Known for its longevity and higher temperature resistance, the dual ball bearing system is the premium choice for applications where the fan will be in continuous operation.

• Ball/Sleeve Bearing System: This hybrid system offers a cost-effective solution that combines a ball bearing and a sleeve bearing, providing a good balance of performance, cost, and durability.

Versatility in Application

The compact size, sturdy construction, and remarkable performance of this 40mm fan make it an extremely versatile cooling solution for a wide range of uses, including but not limited to:

• 3D Printers and Additive Manufacturing: Providing essential cooling for hotends, extruder motors, and control boards.

• Networking and Telecommunications: Cooling network switches, routers, and other small communication devices.

• Embedded Systems and Single-Board Computers: Managing heat in densely packed enclosures for devices like the Raspberry Pi.

• LED Lighting: Dissipating heat from high-power LED drivers and arrays.

• Medical Devices: Ensuring the reliability of compact medical and diagnostic equipment.

• Automotive Electronics: Cooling infotainment systems and other in-vehicle electronics.

• PC Modding and Small Form Factor Builds: Providing targeted spot cooling in compact computer systems.

In conclusion, the 12V 40x40x10mm Brushless DC fan is a testament to modern engineering, offering a potent, dependable, and highly adaptable thermal management solution. Its combination of a durable, compact design, a variety of performance options, and advanced safety features makes it an essential component for engineers, designers, and hobbyists alike. By effectively dissipating heat, this small but mighty fan plays a crucial role in unlocking the full potential and ensuring the long-term reliability of a new generation of electronic devices.
