A New Paradigm in Compact Cooling: The 30x30x10mm Brushless DC Fan

In today's continuously advancing technological sphere, the relentless push toward smaller electronics presents a significant challenge: thermal management. As digital components become more potent and are integrated into ever-shrinking enclosures, the heat they produce can impair performance, shorten lifespans, and lead to catastrophic failure. Dependable, effective, and miniature cooling solutions are no longer an option but a core necessity.

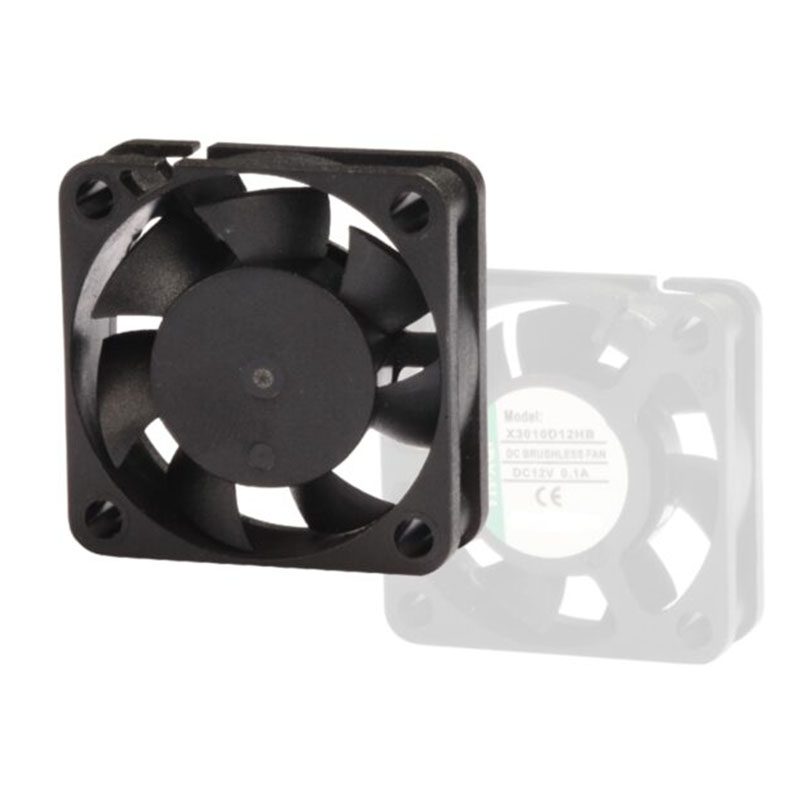

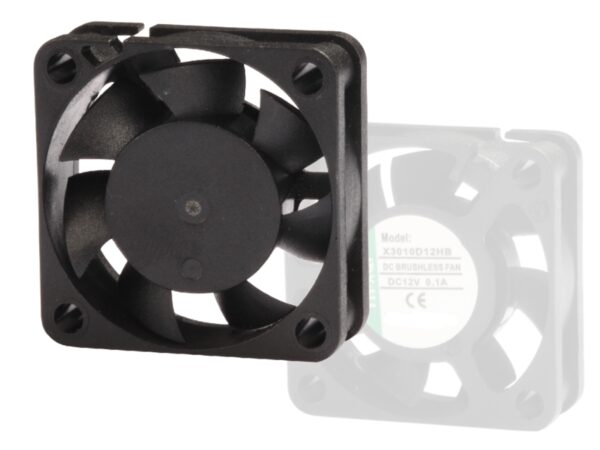

Responding to this critical demand is the high-performance 12V Brushless DC Fan, a marvel of modern engineering designed to provide superior cooling within the most space-limited environments. Measuring a mere 30x30x10mm, this fan delivers a potent stream of airflow precisely where it is most needed, making it the definitive choice for a wide array of sophisticated applications.

Design and Construction: Engineered for Resilience

Upon first inspection, the quality of this fan is immediately apparent. The frame and impeller are constructed from premium UL 94V-0 rated polycarbonate. This is not ordinary plastic; it is a specialized material known for its high strength, low weight, and, most importantly, its exceptional fire-resistant qualities. This safety standard ensures the fan will not aid in the spread of a fire during an unlikely critical electronic failure, a vital consideration for any component housed inside an enclosure.

The fan's internal mechanism is equally impressive. This high-velocity model utilizes a high-precision ball bearing system. When compared to more common sleeve bearings, ball bearings present a multitude of advantages that are crucial for high-stakes applications. They exhibit markedly lower friction, which results in greater efficiency and a prolonged operational lifespan. Furthermore, ball bearings can function reliably across a much broader temperature range and are not sensitive to mounting orientation. This robust bearing system guarantees consistent, quiet, and dependable operation for tens of thousands of hours.

Further bolstering its reliability are the integrated motor protection features. This fan includes both impedance and reverse polarity protection. Impedance protection stops the motor from burning out if the blades become stalled or obstructed. Reverse polarity protection ensures no harm occurs if the power leads are accidentally connected backward during installation. These built-in safeguards make the fan extremely resilient.

Unmatched Performance in a Miniature Form Factor

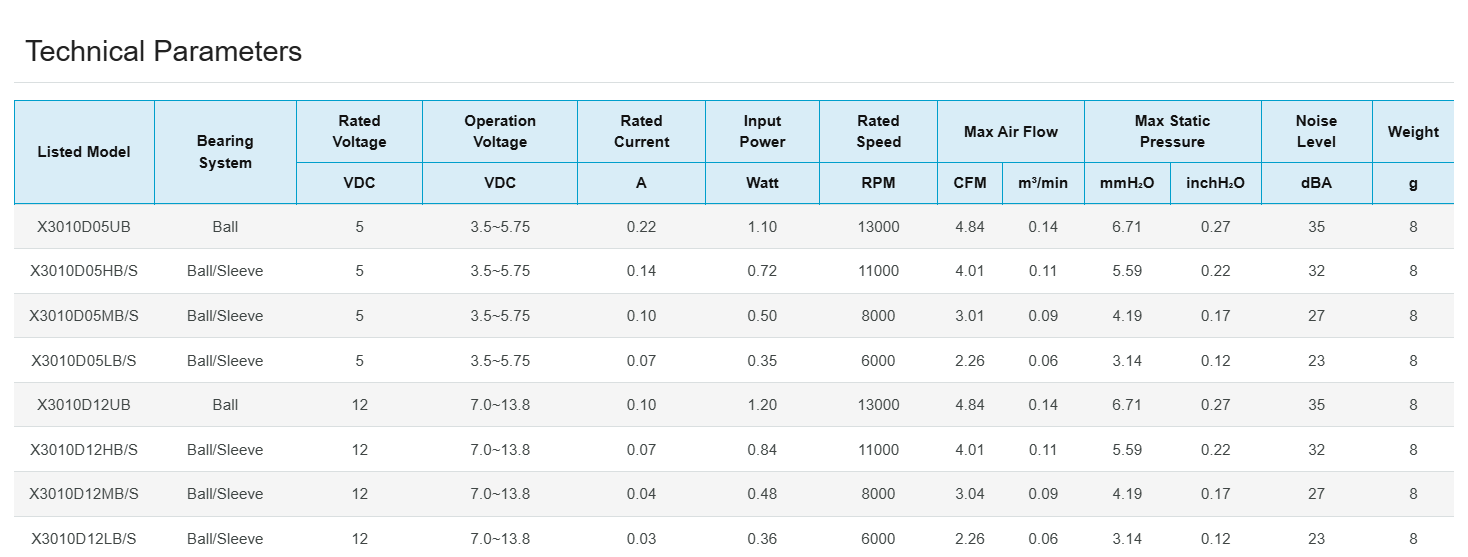

Despite its diminutive 30x10mm frame, this 12V fan is a performance giant. Operating on a standard 12V DC source (with a versatile operating range of 7.0V to 13.8V), its brushless motor spins at an incredible 13,000 RPM. This exceptional speed generates a maximum airflow of 4.84 Cubic Feet per Minute (CFM), a remarkable achievement for a fan of this size. This substantial airflow is essential for quickly drawing heat away from delicate parts like processors and voltage regulators.

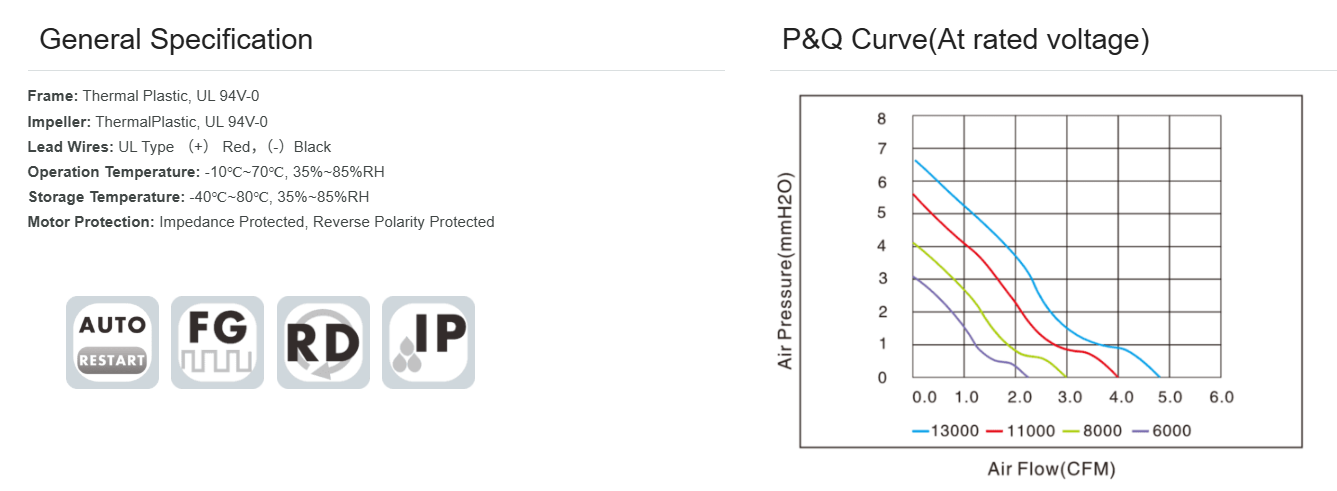

Equally important is its static pressure, which is rated at a maximum of 6.71 mmH₂O. Static pressure is a measure of the fan's power to push air against obstructions. In a tightly packed electronic device with heatsinks and other components blocking airflow, a fan with high static pressure is critical to ensure that cool air reaches its intended target. As shown in the detailed P&Q (Pressure vs. Airflow) curve, this fan maintains strong performance even as system resistance increases. While running at its peak, the fan sustains a reasonable noise level of 35 dBA, balancing powerful cooling with acoustic comfort.

Versatility and Applications

The combination of a miniature footprint, powerful airflow, high static pressure, and sturdy construction makes this 30mm fan incredibly versatile. Its applications extend across numerous industries and hobbies:

• Consumer Electronics: Perfect for adding active cooling to set-top boxes and Small Form Factor (SFF) PCs.

• 3D Printing: Ideally suited for use as a hot-end fan to prevent heat creep or as a part-cooling fan to improve print quality.

• Embedded Systems & DIY Electronics: An essential component for cooling single-board computers like the Raspberry Pi.

• Networking and Communications: Provides vital spot-cooling for routers and other telecommunications equipment.

• LED Lighting: An effective solution for dissipating heat from high-power LED applications to maintain lighting quality.

• Portable and Test Instruments: In handheld devices where internal space is minimal, this fan can provide the necessary cooling to protect sensitive electronics.

Effortless Integration

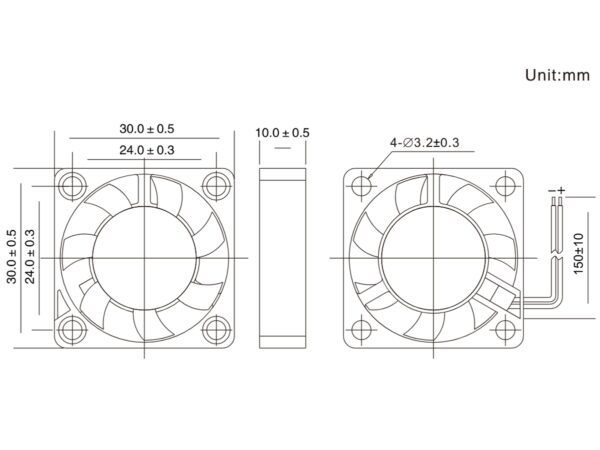

Installation is straightforward thanks to its standardized design. The fan measures 30mm x 30mm x 10mm, with four mounting holes spaced 24mm apart, designed for M3 screws. It includes 150mm lead wires, allowing for easy integration into existing systems. Its broad operational temperature range, from -10°C to 70°C, demonstrates its suitability for use in a wide array of operating environments.

In conclusion, this 12V Brushless DC Fan represents the pinnacle of compact cooling technology. It is a component that merges power, durability, and efficiency into an exceptionally small package. By leveraging a high-speed brushless motor, a long-life ball bearing system, and robust safety features, it delivers the performance needed to tackle the toughest thermal challenges.
