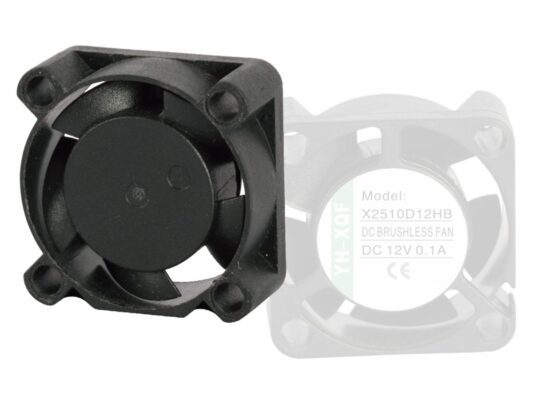

An Introduction to a Compact and Potent Cooling Solution: The 25x25x10mm 12V DC Fan

In the constantly changing world of electronic devices, where components become more powerful and smaller, dependable thermal regulation is of utmost importance. Overheating can lead to performance issues, system instability, and even irreversible harm to delicate electronics. This 25x25x10mm brushless DC fan stands out as an essential component for maintaining optimal operating temperatures in a diverse range of applications where available space is limited. Engineered for dependability, efficiency, and quiet functioning, this fan is a vital tool for designers and engineers aiming to build resilient and high-performing electronic systems.

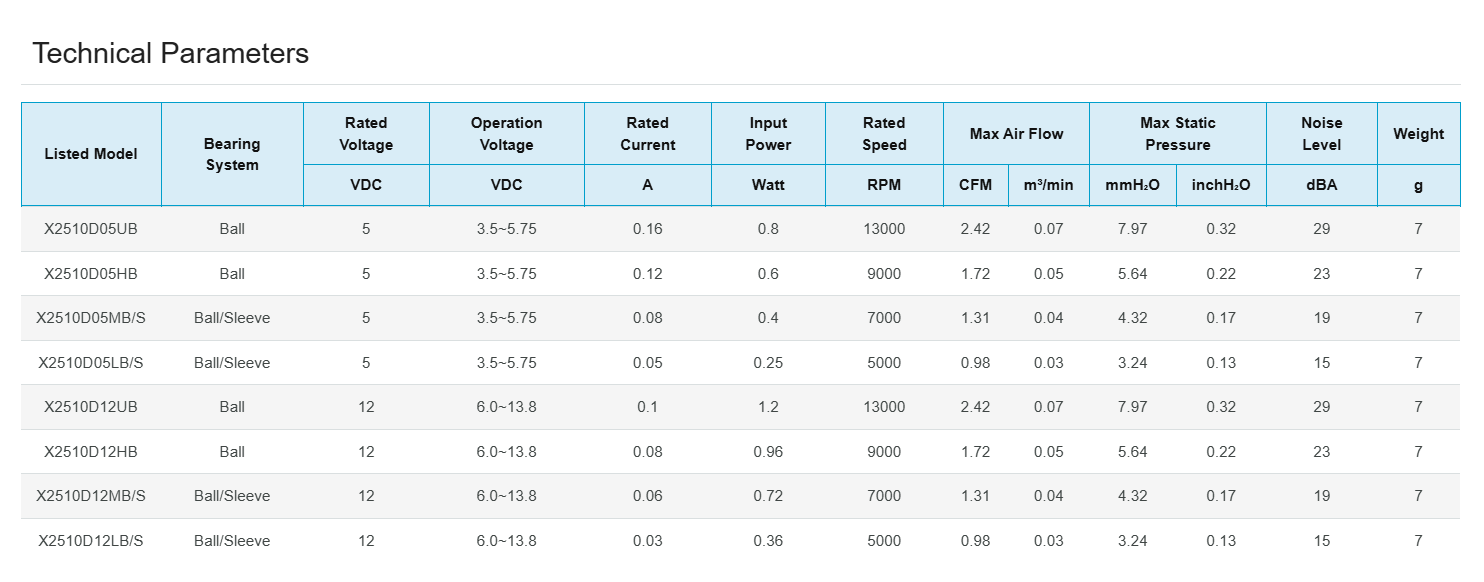

Efficiency and Performance

This particular model runs on a standard 12V DC power source, making it highly compatible with a broad spectrum of electronic circuits. At its nominal voltage, it reaches an impressive rotational velocity of 13,000 RPM, which translates to a maximum air displacement of 2.42 cubic feet per minute (CFM). This significant airflow is crucial for actively removing heat from vital parts like processors, chipsets, and voltage regulators. The brushless DC motor design is inherently efficient, drawing only 0.1 A of current and consuming just 1.2 watts of power, which minimizes its impact on the system's total energy budget.

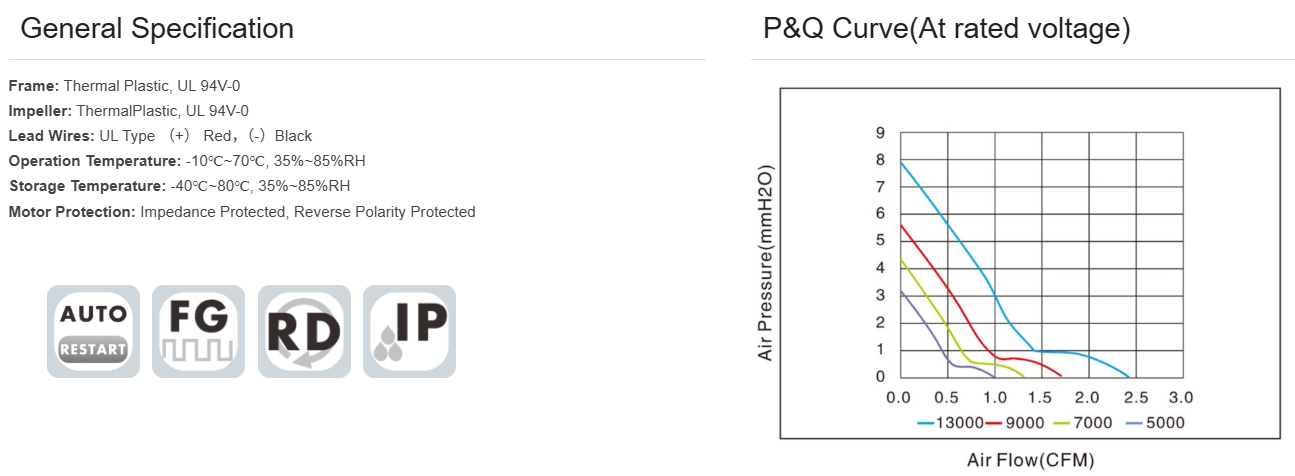

To understand the fan's capabilities under varying conditions, one can examine its P&Q (Pressure and Airflow) curve. This chart demonstrates the relationship between the air volume the fan can displace (airflow) and the resistance it can overcome (static pressure). The curve for this fan reveals its ability to sustain considerable airflow even as system impedance increases, a common situation in densely packed enclosures with restricted airflow paths.

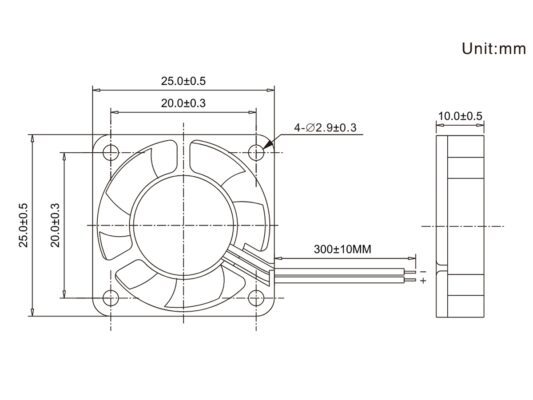

Construction and Resilience

Dependability is a fundamental aspect of this fan's design, beginning with its premium ball bearing system. In comparison to simpler sleeve bearings, ball bearings provide a much longer operational lifespan and greater reliability, particularly at higher speeds and temperatures. They reduce friction, which allows for smoother and more consistent rotation, enhancing both performance and the fan's durability. This makes the fan suitable for continuous operation in demanding scenarios.

The fan's frame and impeller are made from a sturdy polycarbonate material that meets the UL 94V-0 flammability standard. This is a critical safety feature, indicating the material is self-extinguishing and will cease burning within ten seconds after an ignition source is removed, without producing flaming drips. This high level of fire resistance is essential for components used in consumer electronics and industrial controls. Further enhancing its longevity, the fan includes an impedance-protected motor, which safeguards the motor from harm if the blades become locked, preventing overheating and potential failure.

Operational Characteristics and Environmental Tolerance

Designed for adaptability, this fan can function reliably across a wide range of conditions. The specified operational temperature range is from -10°C to 70°C, with a relative humidity range of 35% to 85%, making it suitable for use in diverse settings. For storage, the fan can withstand temperatures from -40°C to 80°C. Despite its powerful performance, this model maintains a modest noise level of 29 dBA. This relatively quiet operation is critical for applications in noise-sensitive environments like office equipment or medical devices. The fan's lightweight design, at just 7 grams, adds minimal mass to the overall assembly.

Applications

The compact dimensions and robust performance characteristics of this 25x25x10mm DC fan make it an ideal cooling solution for a wide range of uses, including:

• Embedded Systems and Single-Board Computers: Efficiently cools processors and components on small boards like the Raspberry Pi.

• Networking and Telecommunications Equipment: Provides essential cooling for switches, routers, and other densely packed hardware.

• 3D Printers and CNC Machines: Cools the hotend, stepper motor drivers, and control boards to ensure print quality.

• LED Lighting: Dissipates heat from high-power LED modules, preventing color shifting and extending their lifespan.

• Portable Electronics and Handheld Devices: Offers active cooling in small gadgets where passive cooling is insufficient.

• Automotive Electronics: Can be used to cool various electronic control units (ECUs) and infotainment systems.

• Medical Equipment: Its reliability and low noise make it suitable for use in various diagnostic and monitoring tools.

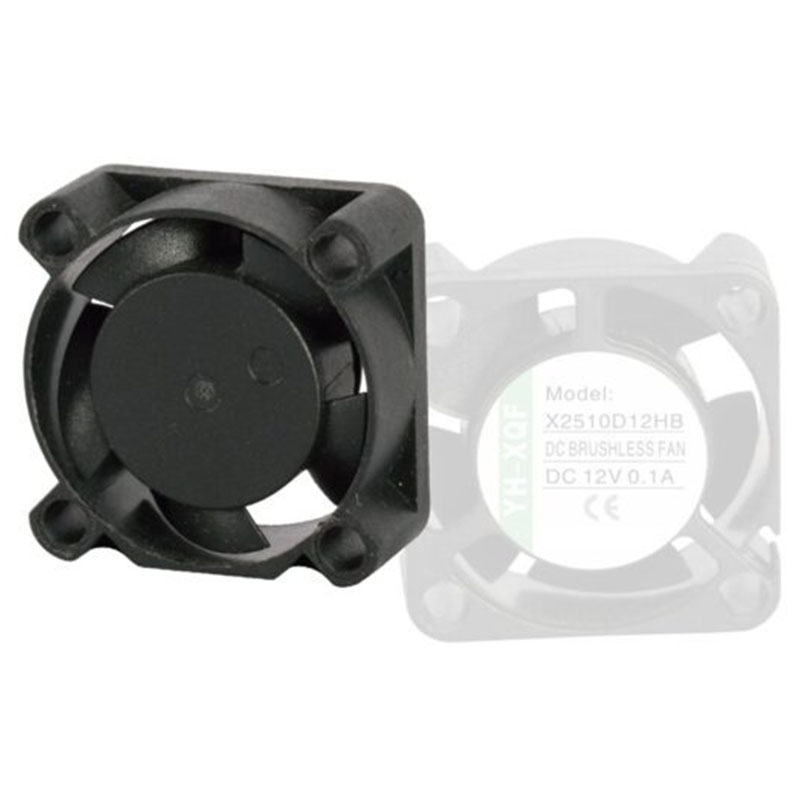

In conclusion, this 25x25x10mm 12V brushless DC fan presents a compelling combination of high performance, durability, and compact design. Its effective cooling capability, coupled with a long-lasting ball bearing system and safety-rated materials, makes it an excellent choice for a broad spectrum of electronic applications requiring efficient and reliable thermal management in confined spaces.
