A Detailed Examination of the 92x92x38mm High-Output EC Axial Fan: The Quintessential Cooling Device

In the swiftly advancing realm of contemporary technology, proper heat regulation has evolved from an afterthought into a fundamental design principle. As electronic parts grow more potent and condensed, the thermal energy they discharge creates a major danger to output, stability, and longevity.

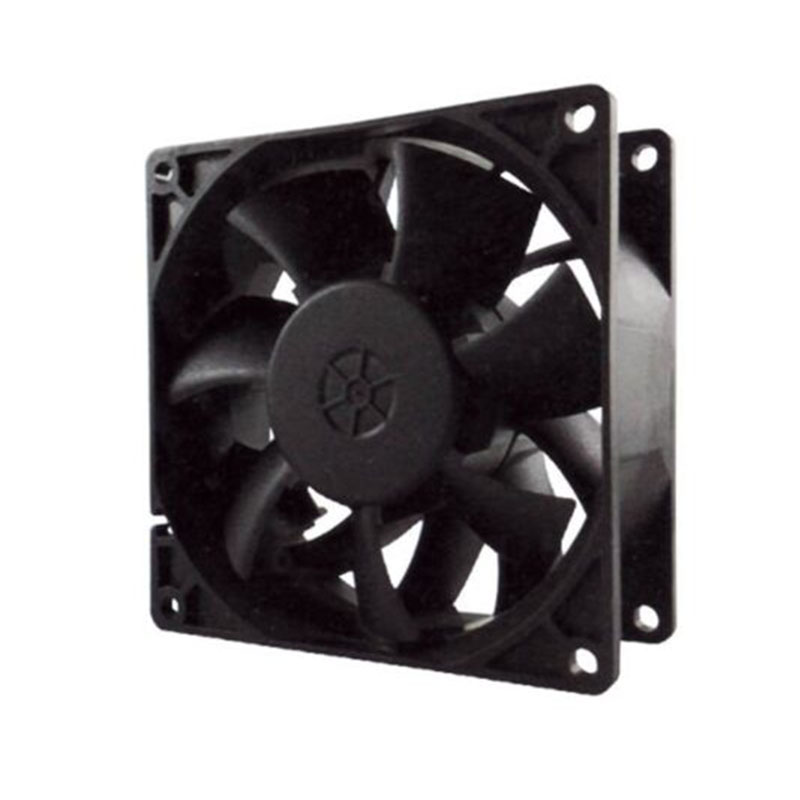

This formidable 92x92x38mm Electronically Commutated (EC) axial fan addresses this critical requirement—a marvel of engineering crafted to provide uncompromising cooling output in a condensed and highly efficient package. This device is more than a simple fan; it is an advanced thermal solution built for the most strenuous applications.

Analyzing a New Benchmark in Performance

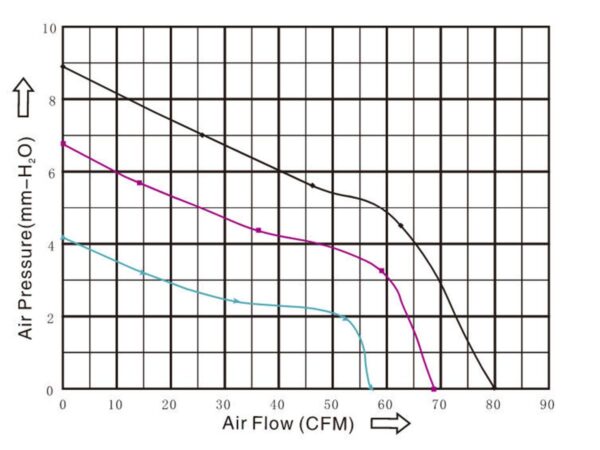

The authentic measure of a fan's capacity is illustrated by its performance graph, which depicts the dynamic between the volume of air it can displace (airflow) and the opposition it can surmount (static pressure). The provided performance data for this 92mm EC model reveals a level of power and versatility that makes it stand out.

The graph presents three separate performance curves, demonstrating the fan's incredible adaptability via variable speed functionality. This capability is a distinguishing feature of modern EC technology, permitting system architects to select the perfect operational point for their unique requirements.

• Maximum Output (High-Velocity Operation): The highest curve signifies the fan's ultimate potential. At a state of complete blockage (zero airflow), the fan creates an impressive static pressure of approximately 9 mm-H₂O. This high-pressure capacity is indispensable for uses with significant impedance, such as forcing cool air through fine-finned heatsinks, tightly arranged server blades, or elaborate filter systems. As opposition lessens, the fan's priority shifts to displacing air, culminating in a peak free-air delivery of roughly 75 CFM (Cubic Feet per Minute). This dual capability to both overcome obstacles and move large volumes of air establishes it as a powerhouse for any cooling task.

• Harmonized and Quiet Function (Medium and Low Velocities): The middle and lowest curves illustrate the fan's intelligent governance. The medium-speed configuration offers a superb balance, yielding substantial output (peaking at ~7 mm-H₂O and ~68 CFM) while functioning with lower energy consumption and acoustic output. The low-speed configuration is ideal for less intense thermal loads or for situations where near-silent function is paramount, still providing a very respectable performance range that begins at 4 mm-H₂O and reaches nearly 57 CFM. This graduated performance ensures the fan is never over-exerting; it delivers precisely the cooling needed, optimizing for efficiency and quietness.

Built for Resilience and Seamless Integration

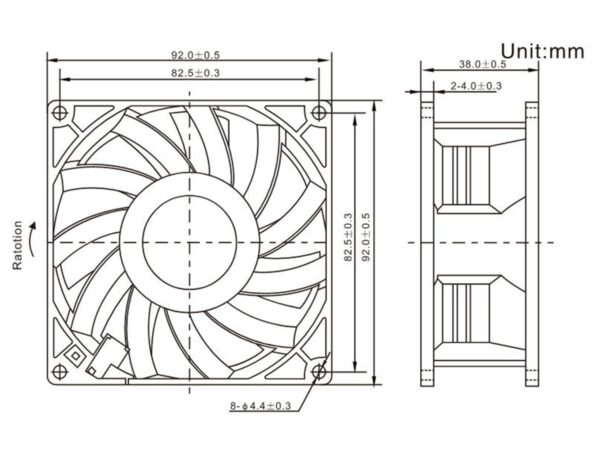

A fan's output is as much about its physical build as it is about its motor. The detailed mechanical diagram confirms a design ethos focused on durability and ease of use.

• Form Factor: The fan adheres to the conventional 92x92mm frame dimension, ensuring it can be effortlessly incorporated into a vast array of new and existing layouts. Its 38mm depth represents a deliberate design decision. This deeper profile, when compared to thinner 25mm variants, provides the necessary volume for a more powerful motor and a more forceful, aerodynamically refined blade profile. It is this depth that facilitates the fan's exceptional high-pressure capabilities.

• Robust Build: The diagram shows a sturdy chassis with an 82.5 mm x 82.5 mm mounting configuration, which is standard for this fan size, guaranteeing straightforward installation. The inclusion of eight mounting holes provides superior stability and vibration reduction.

• Advanced Aerodynamics: The fan blades showcase a pronounced curvature and swept-back form. This is not merely for aesthetics; it is a sophisticated aerodynamic profile crafted to cut through the air with maximum efficiency. This design is instrumental in generating high static pressure while carefully managing turbulence, which in turn helps to lower the overall noise signature, particularly at reduced speeds.

The EC Advantage: Efficiency, Longevity, and Intelligence

At the center of this fan lies its Electronically Commutated (EC) motor, a technology representing a significant advance over conventional AC and brushed DC motors.

• Exceptional Power Efficiency: EC motors are effectively brushless DC motors that have integrated electronics for converting AC power. This structure permits them to function with greater efficiency across their entire speed spectrum. Unlike AC fans which lose significant effectiveness at slower speeds, EC models maintain their efficiency, leading to substantial decreases in energy use, lower operational expenses, and a reduced carbon footprint.

• Extended Longevity and Reliability: Mechanical degradation is a primary point of failure in many motors. By doing away with carbon brushes—a component prone to degradation and dust creation—EC technology offers a radically extended operational lifespan and superior dependability. This is a crucial benefit in mission-critical systems where any downtime is unacceptable.

• Smart Governance: The variable performance curves are a direct consequence of the intelligent control built into EC technology. These fans typically permit fine-tuned speed adjustments through a PWM (Pulse Width Modulation) signal. This enables the creation of "smart" cooling systems that can dynamically alter fan speed in real-time based on thermal sensors, guaranteeing that maximum cooling power is deployed only when required and that the system functions quietly and efficiently at all other times.

Adaptable Uses Across Numerous Industries

The distinctive fusion of high pressure, high airflow, resilient construction, and smart governance makes this 92x92x38mm EC fan a superior selection for a wide range of uses:

• Networking and Telecommunications: For cooling densely arranged switches, routers, and 5G hardware where high impedance and 24/7 operation are critical.

• Industrial Automation: Preserving stable operational temperatures inside sealed control enclosures that contain VFDs, PLCs, and power supplies.

• Servers and Data Centers: Delivering targeted "hot spot" cooling for high-output CPUs and GPUs or acting as a primary system fan in rack-mounted servers.

• Medical Equipment: Supplying dependable, controllable, and often quiet cooling for diagnostic, imaging, and laboratory instruments.

• High-End Custom Enclosures: Perfect for any project, from professional-grade workstations to bespoke electronics, where excess heat is the enemy of performance.

To conclude, this high-performance 92x92x38mm EC axial fan is positioned as a top-tier selection for any engineer, designer, or enthusiast who requires a premium cooling solution. It expertly merges sheer force with intelligent efficiency, providing a level of output and control that safeguards critical components, extends product lifespan, and empowers the next wave of technological innovation.
