Understanding Thermal Dynamics: A Definitive Look at the 80x80x38mm High-Output EC Axial Fan

In the fast-paced domain of modern electronics, proper heat management is no longer just a feature; it has become the cornerstone of performance, reliability, and longevity. As components become more potent and condensed, the challenge of managing waste heat increases exponentially. For designers, system integrators, and tech aficionados who refuse to compromise, a standard cooling device is simply insufficient.

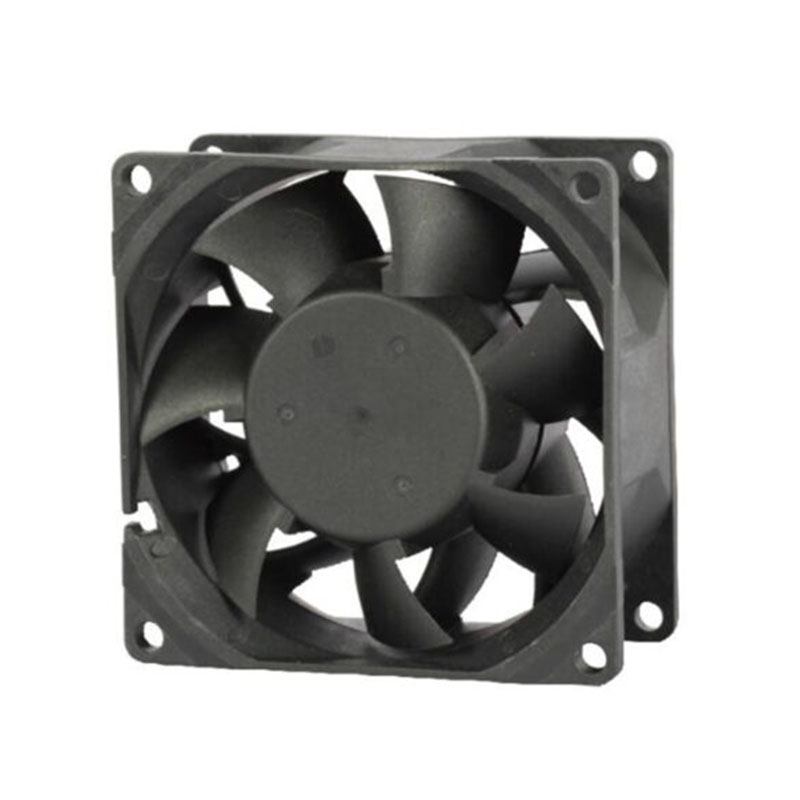

This is the niche our high-output 80x80x38mm EC (Electronically Commutated) axial fan fills, specifically built to meet and exceed the cooling requirements of the most challenging applications. It embodies a skillful combination of raw strength, intelligent engineering, and outstanding efficiency, all contained within a standard, adaptable package.

Unlocking Superior Cooling Capabilities

The performance of any cooling fan rests on two crucial metrics: airflow and static pressure. This particular EC model excels in both areas, delivering a level of output that distinguishes it from ordinary cooling devices.

• Peak Airflow: Possessing the capacity to displace a large volume of air, reaching a maximum of around 48 CFM (Cubic Feet per Minute), this fan is an expert at rapid heat removal. For applications such as server enclosures, high-end computer cases, or industrial cabinets, this high rate of exchange ensures that hot, stagnant air is swiftly swapped with cooler, ambient air. This prevents parts like CPUs, GPUs, and power components from experiencing thermal throttling and premature wear.

• Exceptional Static Pressure: Its most remarkable quality is perhaps its outstanding capacity for static pressure, achieving over 8 mm-H₂O. Static pressure measures a fan's power to force air through opposition. This is absolutely critical in contemporary, densely arranged systems where airflow is impeded by heatsinks, filtration media, cables, and various other parts. A fan with low static pressure would see its effective air movement plummet when facing such resistance. This EC fan, by contrast, is engineered to drive through these impediments, preserving significant airflow in even the most constrained environments.

Its 38mm deep chassis, which is more substantial than a typical 25mm fan, contains a more potent motor and facilitates a more forceful blade design, both of which are key to its high-pressure capabilities.

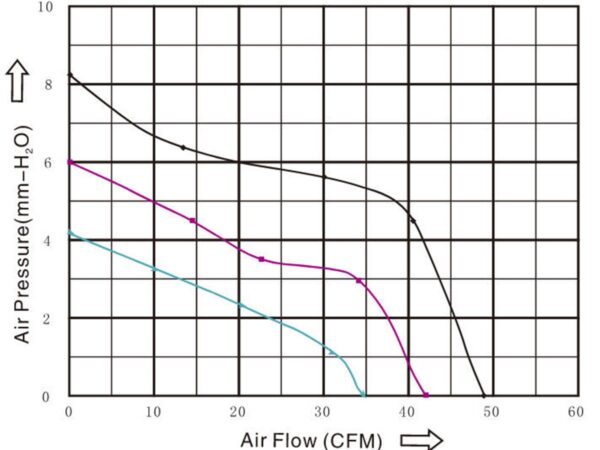

The fan's abilities are not a static set of figures but rather a flexible performance range. With multiple operating speeds, users can adjust the fan's output to their specific requirements. At its maximum setting, it provides uncompromising cooling for peak thermal loads. At slower speeds, it delivers more than adequate airflow for less demanding tasks while operating with less noise, offering a perfect harmony between power and quietness.

The EC Motor Advantage: Redefining Efficiency and Longevity

This fan is built upon an advanced Electronically Commutated (EC) motor, a technology that merges the best characteristics of AC and DC motors to provide a truly superior device. In contrast to traditional brushed motors, EC motors are brushless and employ sophisticated internal electronics to manage the motor's rotation. This intelligent architecture delivers a host of concrete advantages:

• Unrivaled Energy Efficiency: EC motors are vastly more efficient than their AC counterparts, often consuming as much as 70% less energy to produce the same result. This translates directly into lower operational expenses, reduced energy wastage, and less heat being emitted by the fan motor itself—further promoting a cooler system.

• Precision and Governance: The integrated electronics facilitate precise and variable speed adjustment. This allows a system to intelligently increase or decrease fan speed based on real-time thermal conditions, a function known as PWM (Pulse Width Modulation) control. The result is a cooling system that is both adaptive and resourceful, providing power only when it is truly needed.

• Remarkable Durability and Dependability: The brushless nature of an EC motor removes the primary source of failure in conventional motors: the brushes. With no brushes to degrade, this fan offers a radically extended operational lifespan and a higher Mean Time Between Failures (MTBF), promising years of uninterrupted, reliable operation. This makes it the ideal choice for mission-critical systems where any downtime is unacceptable.

Engineered for Excellence: Construction and Design

Each aspect of this fan has been meticulously engineered for performance and ease of integration.

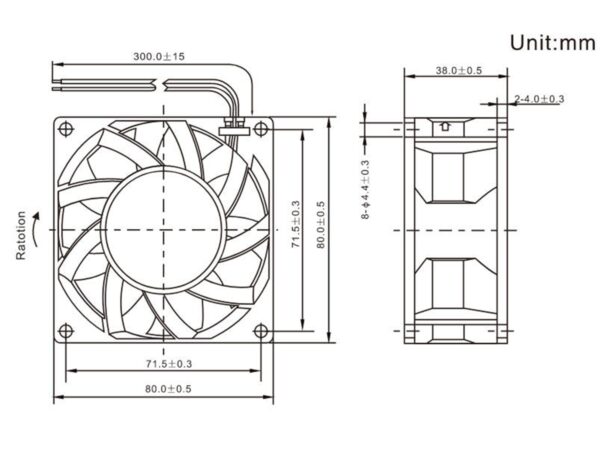

• Standardized Form Factor: The 80x80mm frame is a widely adopted industry standard, making it a perfect drop-in replacement or upgrade for a multitude of existing systems. The mounting holes are arranged in a common 71.5 mm x 71.5 mm pattern, which guarantees compatibility with a wide array of cases, chassis, and brackets.

• Sturdy Build Quality: Both the frame and the impeller are made from high-grade, resilient thermoplastic, offering excellent rigidity and resistance to heat and physical stress. The sturdy construction minimizes vibrations, which contributes to quieter operation and a longer service life.

• Aerodynamically Enhanced Impeller: The fan showcases a nine-blade impeller with a significant curvature and an aggressive angle. This design is deliberate; it is specially optimized to maximize static pressure, which allows the fan to excel in high-impedance situations. The rotation and blade geometry work together to forcefully direct air in a consistent, columnar flow.

• Flexible Connection: The fan is furnished with a substantial 300mm (approximately 12-inch) lead wire, which provides ample length for a straightforward connection to a motherboard or fan controller, even inside larger enclosures, without requiring extenders.

Adaptable Applications

The special fusion of high airflow, high static pressure, efficiency, and dependability makes this 80mm EC fan an incredibly versatile cooling device for a broad spectrum of demanding uses, including:

• Servers and Data Centers: Ideally suited for 1U and 2U rack-mounted servers where space is at a premium and airflow opposition is exceptionally high.

• Networking and Telecommunications Hardware: Effectively cools high-power switches, routers, and Network Attached Storage (NAS) units that run 24/7.

• High-End Workstations and Gaming PCs: Excellent as a case fan or for pushing air through dense radiator fins in liquid cooling systems.

• Industrial Control Enclosures: Reliably cools PLCs, variable frequency drives (VFDs), and other sensitive components in demanding factory environments.

• Commercial LED Lighting: Removes heat from high-intensity LED systems to maintain color consistency and long life.

• DIY Electronics Endeavors: Delivers a professional-grade cooling solution for any project requiring serious thermal management.

In conclusion, this 80x80x38mm EC axial fan is more than a mere component; it is a fundamental enabler of high performance. It provides a potent, efficient, and extremely dependable cooling device engineered to conquer the most formidable thermal challenges. For those constructing or maintaining high-output systems, it delivers the assurance that comes from knowing your essential components are protected by a superior thermal management solution.
